Datasheet ADuM5210, ADuM5211, ADuM5212 (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | Dual-Channel Isolators with Integrated DC-to-DC Converters |
| Páginas / Página | 23 / 1 — Dual-Channel Isolators with. Integrated DC-to-DC Converters. Data Sheet. … |
| Revisión | D |
| Formato / tamaño de archivo | PDF / 533 Kb |
| Idioma del documento | Inglés |

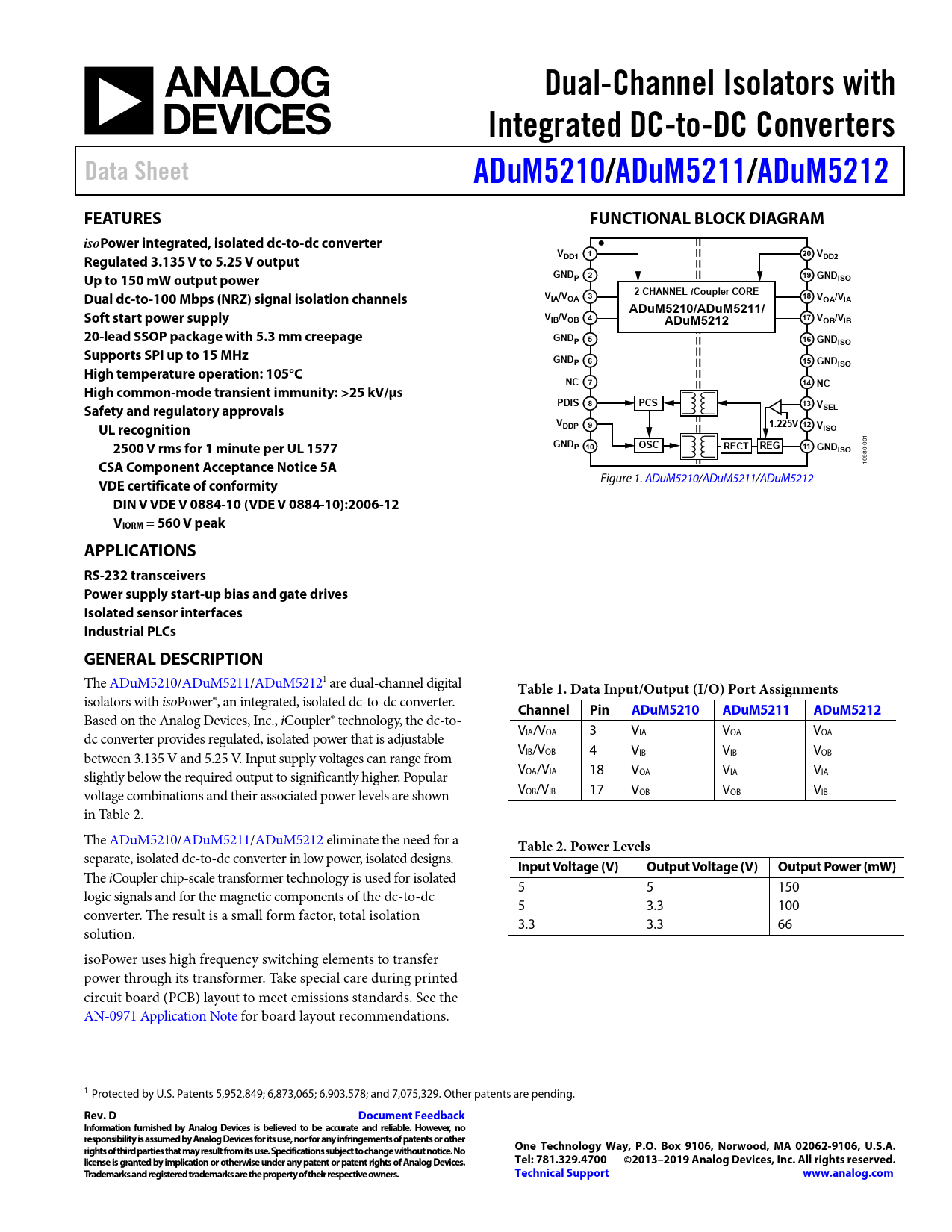

Dual-Channel Isolators with. Integrated DC-to-DC Converters. Data Sheet. ADuM5210/. ADuM5211/. ADuM5212. FEATURES
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 1
Dual-Channel Isolators with Integrated DC-to-DC Converters Data Sheet ADuM5210/ ADuM5211/ ADuM5212 FEATURES FUNCTIONAL BLOCK DIAGRAM iso Power integrated, isolated dc-to-dc converter VDD1 1 20 VDD2 Regulated 3.135 V to 5.25 V output GND 2 19 GND Up to 150 mW output power P ISO 2-CHANNEL i Coupler CORE Dual dc-to-100 Mbps (NRZ) signal isolation channels VIA/VOA 3 18 VOA/VIA ADuM5210/ADuM5211/ Soft start power supply VIB/VOB 4 17 V ADuM5212 OB/VIB 20-lead SSOP package with 5.3 mm creepage GNDP 5 16 GNDISO Supports SPI up to 15 MHz GNDP 6 15 GNDISO High temperature operation: 105°C NC 7 14 NC High common-mode transient immunity: >25 kV/μs PDIS 8 PCS 13 V Safety and regulatory approvals SEL V 9 1.225V 12 UL recognition DDP VISO
001
2500 V rms for 1 minute per UL 1577 GNDP 10 OSC RECT REG 11 GNDISO
80-
CSA Component Acceptance Notice 5A
109 Figure 1. ADuM5210/ADuM5211/ADuM5212
VDE certificate of conformity DIN V VDE V 0884-10 (VDE V 0884-10):2006-12 VIORM = 560 V peak APPLICATIONS RS-232 transceivers Power supply start-up bias and gate drives Isolated sensor interfaces Industrial PLCs GENERAL DESCRIPTION
The ADuM5210/ADuM5211/ADuM52121 are dual-channel digital
Table 1. Data Input/Output (I/O) Port Assignments
isolators with isoPower®, an integrated, isolated dc-to-dc converter.
Channel Pin ADuM5210 ADuM5211 ADuM5212
Based on the Analog Devices, Inc., iCoupler® technology, the dc-to- V dc converter provides regulated, isolated power that is adjustable IA/VOA 3 VIA VOA VOA V between 3.135 V and 5.25 V. Input supply voltages can range from IB/VOB 4 VIB VIB VOB V slightly below the required output to significantly higher. Popular OA/VIA 18 VOA VIA VIA V voltage combinations and their associated power levels are shown OB/VIB 17 VOB VOB VIB in Table 2. The ADuM5210/ADuM5211/ADuM5212 eliminate the need for a
Table 2. Power Levels
separate, isolated dc-to-dc converter in low power, isolated designs.
Input Voltage (V) Output Voltage (V) Output Power (mW)
The iCoupler chip-scale transformer technology is used for isolated 5 5 150 logic signals and for the magnetic components of the dc-to-dc 5 3.3 100 converter. The result is a small form factor, total isolation 3.3 3.3 66 solution. isoPower uses high frequency switching elements to transfer power through its transformer. Take special care during printed circuit board (PCB) layout to meet emissions standards. See the AN-0971 Application Note for board layout recommendations. 1 Protected by U.S. Patents 5,952,849; 6,873,065; 6,903,578; and 7,075,329. Other patents are pending.
Rev. D Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2013–2019 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—5 V PRIMARY INPUT SUPPLY/5 V SECONDARY ISOLATED SUPPLY ELECTRICAL CHARACTERISTICS—3.3 V PRIMARY INPUT SUPPLY/3.3 V SECONDARY ISOLATED SUPPLY ELECTRICAL CHARACTERISTICS—5 V PRIMARY INPUT SUPPLY/3.3 V SECONDARY ISOLATED SUPPLY PACKAGE CHARACTERISTICS REGULATORY APPROVALS INSULATION AND SAFETY-RELATED SPECIFICATIONS DIN V VDE V 0884-10 (VDE V 0884-10) INSULATION CHARACTERISTICS RECOMMENDED OPERATING CONDITIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TRUTH TABLE TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION PCB LAYOUT THERMAL ANALYSIS PROPAGATION DELAY PARAMETERS EMI CONSIDERATIONS DC CORRECTNESS AND MAGNETIC FIELD IMMUNITY POWER CONSUMPTION INSULATION LIFETIME OUTLINE DIMENSIONS ORDERING GUIDE
