VL53L3CX Application schematic 1.4 Application schematic

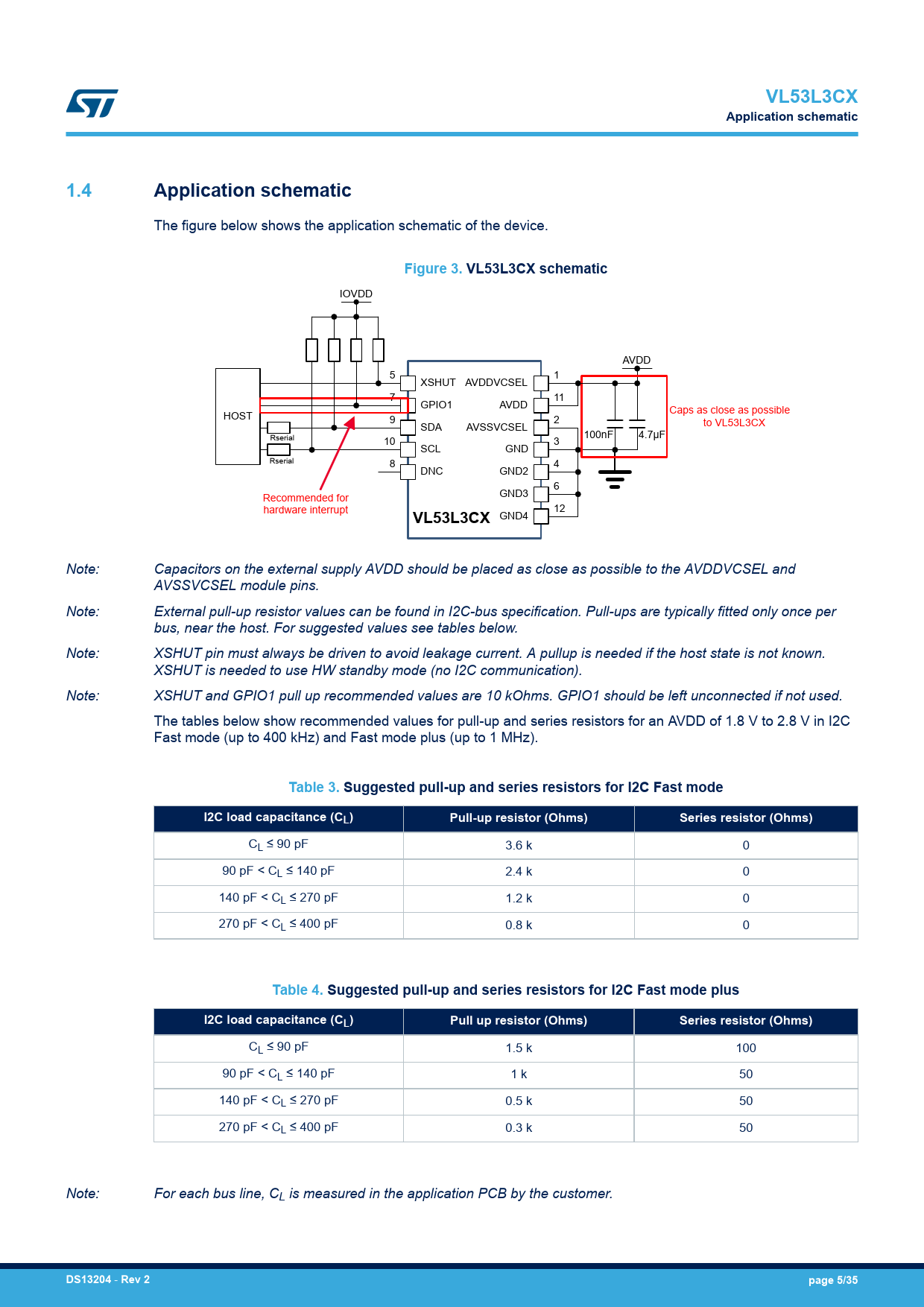

The figure below shows the application schematic of the device.
Figure 3. VL53L3CX schematic
IOVDD AVDD 5 1 XSHUT AVDDVCSEL 7 11 GPIO1 AVDD HOST Caps as close as possible 9 2 SDA AVSSVCSEL to VL53L3CX 100nF 4.7µF Rserial 10 3 SCL GND Rserial 8 4 DNC GND2 6 GND3 Recommended for hardware interrupt 12
VL53L3CX
GND4 Note: Capacitors on the external supply AVDD should be placed as close as possible to the AVDDVCSEL and AVSSVCSEL module pins. Note: External pull-up resistor values can be found in I2C-bus specification. Pull-ups are typically fitted only once per bus, near the host. For suggested values see tables below. Note: XSHUT pin must always be driven to avoid leakage current. A pullup is needed if the host state is not known. XSHUT is needed to use HW standby mode (no I2C communication). Note: XSHUT and GPIO1 pull up recommended values are 10 kOhms. GPIO1 should be left unconnected if not used. The tables below show recommended values for pull-up and series resistors for an AVDD of 1.8 V to 2.8 V in I2C Fast mode (up to 400 kHz) and Fast mode plus (up to 1 MHz).
Table 3. Suggested pull-up and series resistors for I2C Fast mode I2C load capacitance (CL) Pull-up resistor (Ohms) Series resistor (Ohms)
CL ≤ 90 pF 3.6 k 0 90 pF < CL ≤ 140 pF 2.4 k 0 140 pF < CL ≤ 270 pF 1.2 k 0 270 pF < CL ≤ 400 pF 0.8 k 0
Table 4. Suggested pull-up and series resistors for I2C Fast mode plus I2C load capacitance (CL) Pull up resistor (Ohms) Series resistor (Ohms)
CL ≤ 90 pF 1.5 k 100 90 pF < CL ≤ 140 pF 1 k 50 140 pF < CL ≤ 270 pF 0.5 k 50 270 pF < CL ≤ 400 pF 0.3 k 50 Note: For each bus line, CL is measured in the application PCB by the customer.
DS13204
-
Rev 2 page 5/35
