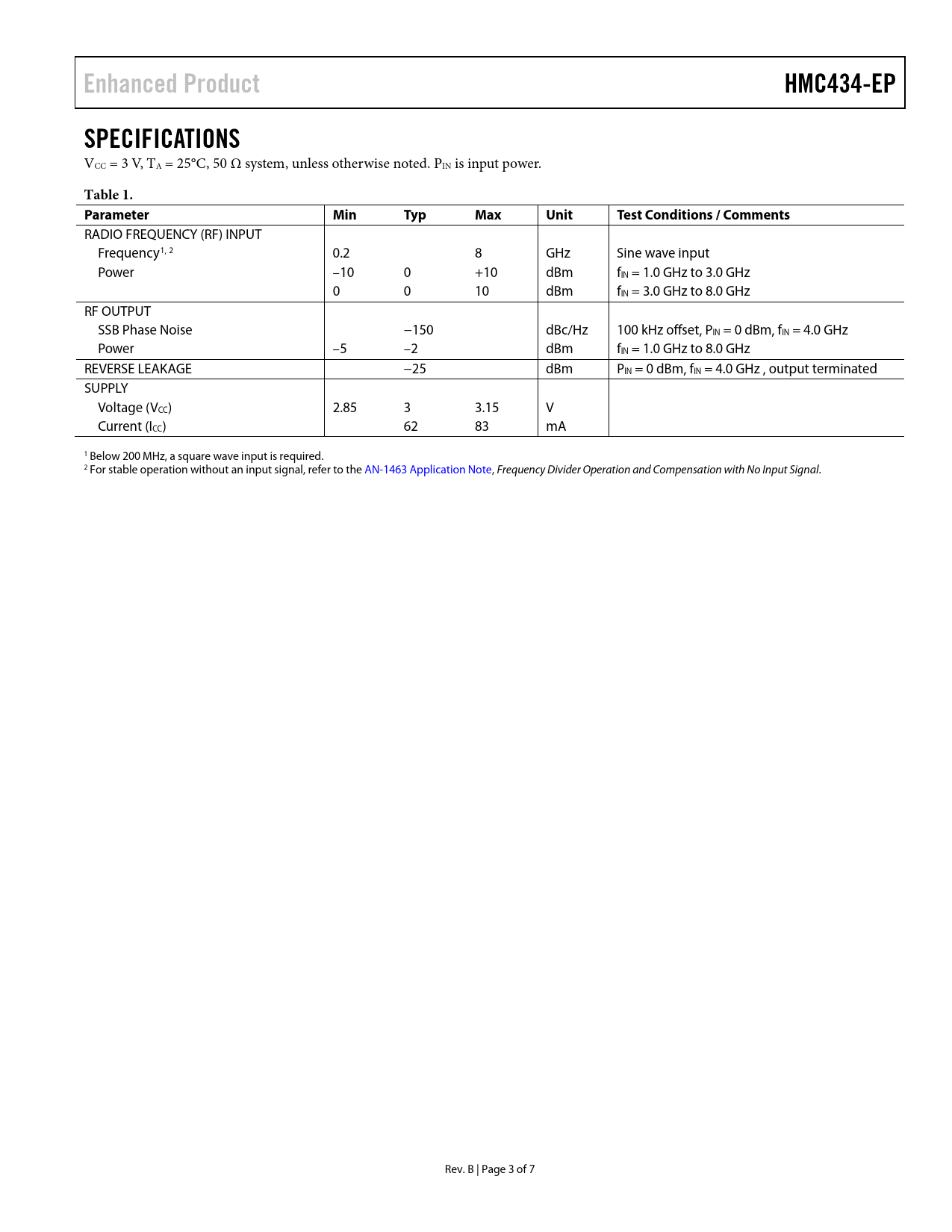

Enhanced Product HMC434-EP SPECIFICATIONS
VCC = 3 V, TA = 25°C, 50 Ω system, unless otherwise noted. PIN is input power.
Table 1. Parameter Min Typ Max Unit Test Conditions / Comments
RADIO FREQUENCY (RF) INPUT Frequency1, 2 0.2 8 GHz Sine wave input Power –10 0 +10 dBm fIN = 1.0 GHz to 3.0 GHz 0 0 10 dBm fIN = 3.0 GHz to 8.0 GHz RF OUTPUT SSB Phase Noise −150 dBc/Hz 100 kHz offset, PIN = 0 dBm, fIN = 4.0 GHz Power –5 –2 dBm fIN = 1.0 GHz to 8.0 GHz REVERSE LEAKAGE −25 dBm PIN = 0 dBm, fIN = 4.0 GHz , output terminated SUPPLY Voltage (VCC) 2.85 3 3.15 V Current (ICC) 62 83 mA 1 Below 200 MHz, a square wave input is required. 2 For stable operation without an input signal, refer to the AN-1463 Application Note, Frequency Divider Operation and Compensation with No Input Signal. Rev. B | Page 3 of 7 Document Outline Features Enhanced Product Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Outline Dimensions Ordering Guide
