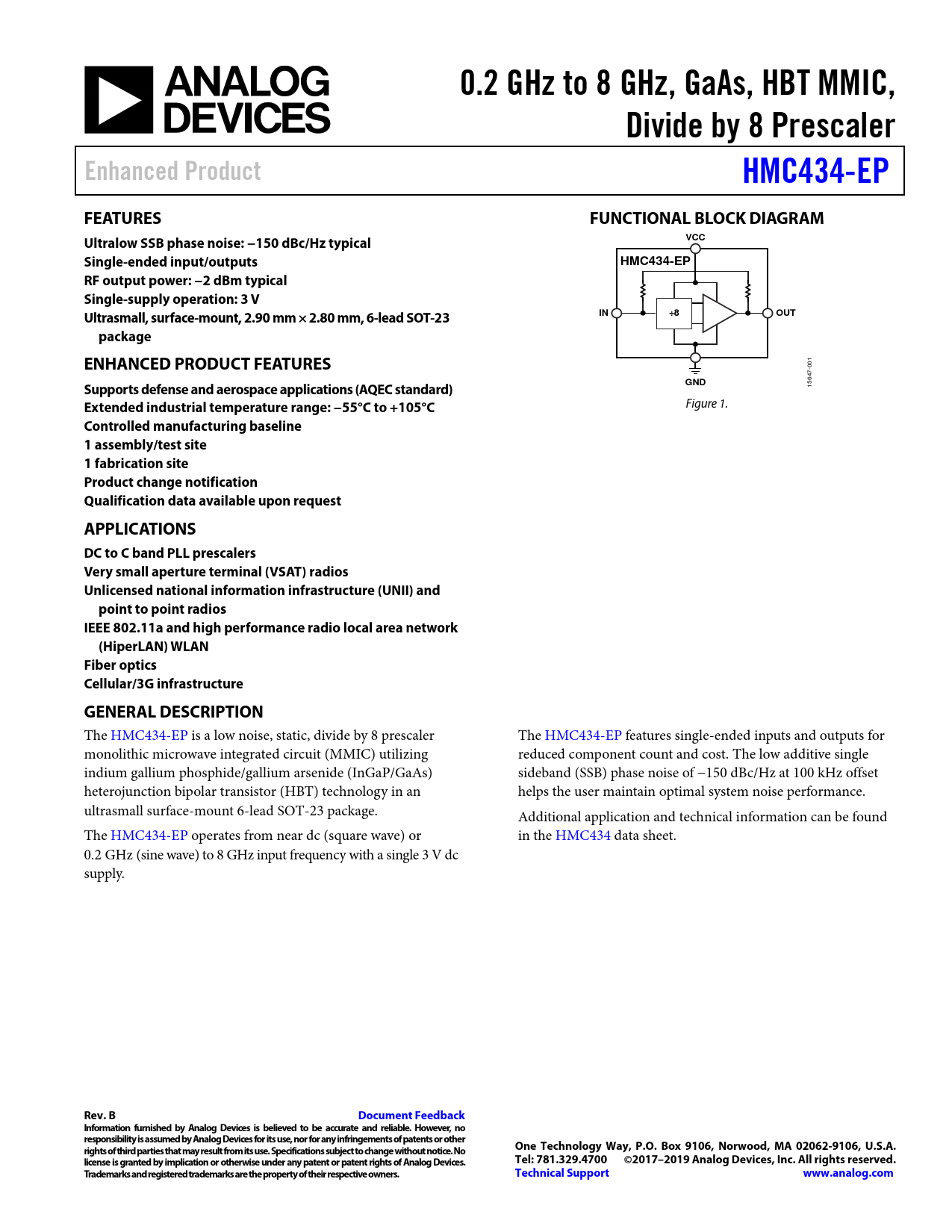

Datasheet HMC434-EP (Analog Devices)

0.2 GHz to 8 GHz, GaAs, HBT MMIC, Divide by 8 Prescaler Enhanced Product HMC434-EP FEATURES FUNCTIONAL BLOCK DIAGRAM Ultralow SSB phase noise: −150 dBc/Hz typical VCC Single-ended input/outputs HMC434-EP RF output power: −2 dBm typical Single-supply operation: 3 V Ultrasmall, surface-mount, 2.90 mm × 2.80 mm, 6-lead SOT-23 IN ÷8 OUT package ENHANCED PRODUCT FEATURES
001
Supports defense and aerospace applications (AQEC standard) GND
15647-
Extended industrial temperature range: −55°C to +105°C
Figure 1.
Controlled manufacturing baseline 1 assembly/test site 1 fabrication site Product change notification Qualification data available upon request APPLICATIONS DC to C band PLL prescalers Very small aperture terminal (VSAT) radios Unlicensed national information infrastructure (UNII) and point to point radios IEEE 802.11a and high performance radio local area network (HiperLAN) WLAN Fiber optics Cellular/3G infrastructure GENERAL DESCRIPTION
The HMC434-EP is a low noise, static, divide by 8 prescaler The HMC434-EP features single-ended inputs and outputs for monolithic microwave integrated circuit (MMIC) utilizing reduced component count and cost. The low additive single indium gallium phosphide/gallium arsenide (InGaP/GaAs) sideband (SSB) phase noise of −150 dBc/Hz at 100 kHz offset heterojunction bipolar transistor (HBT) technology in an helps the user maintain optimal system noise performance. ultrasmall surface-mount 6-lead SOT-23 package. Additional application and technical information can be found The HMC434-EP operates from near dc (square wave) or in the HMC434 data sheet. 0.2 GHz (sine wave) to 8 GHz input frequency with a single 3 V dc supply.
Rev. B Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2017–2019 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline Features Enhanced Product Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Outline Dimensions Ordering Guide
