Datasheet DN3545 (Microchip) - 10
| Fabricante | Microchip |
| Descripción | N-Channel Depletion-Mode Vertical DMOS FET |
| Páginas / Página | 14 / 10 — DN3545. 3-Lead TO-243AA (SOT-89) Package Outline (N8). Top View. Side … |
| Formato / tamaño de archivo | PDF / 1.8 Mb |
| Idioma del documento | Inglés |

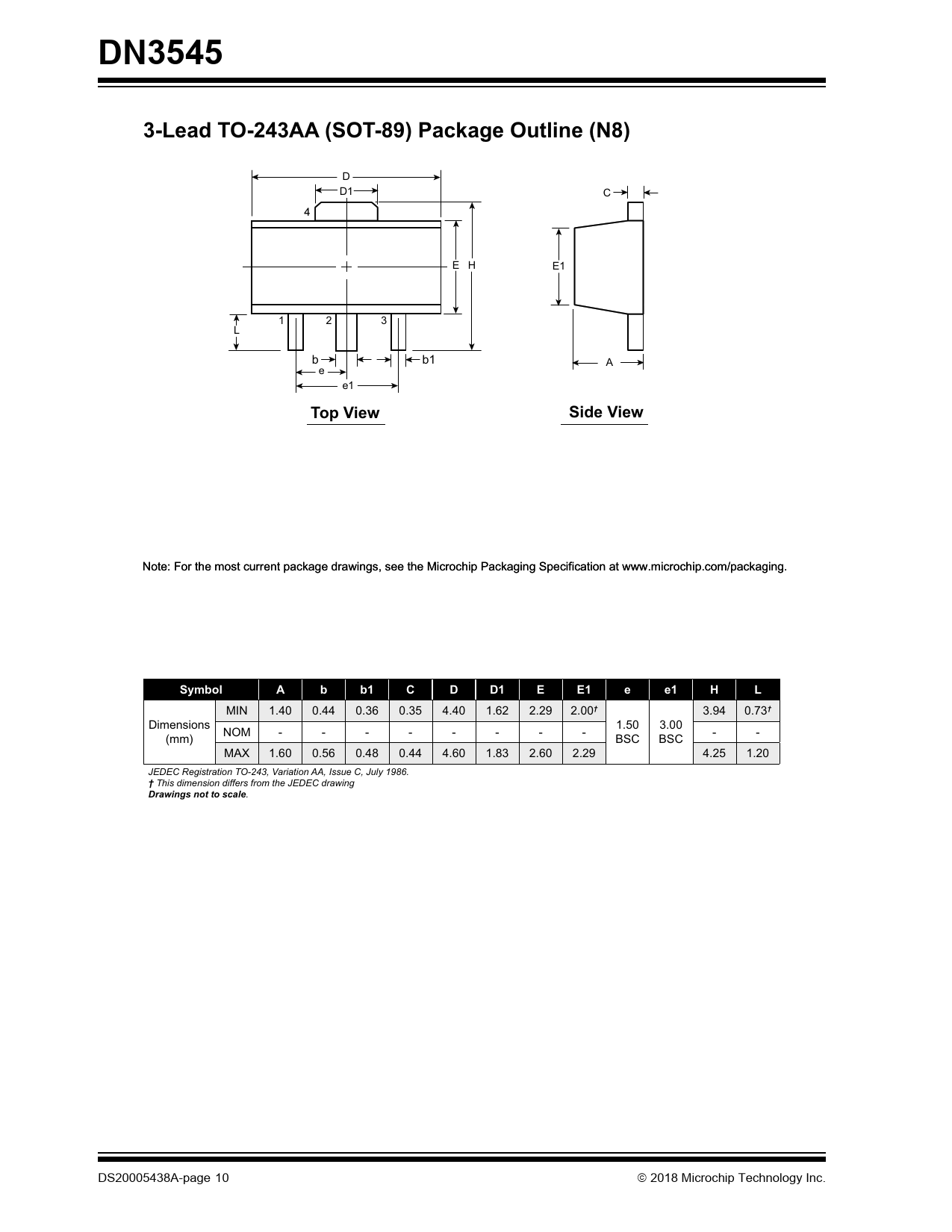

DN3545. 3-Lead TO-243AA (SOT-89) Package Outline (N8). Top View. Side View. Symbol. Drawings not to scale
Línea de modelo para esta hoja de datos
Versión de texto del documento
DN3545 3-Lead TO-243AA (SOT-89) Package Outline (N8)
D D1 C E H E1 1 2 3 L b b1 A e e1
Top View Side View
Note: For the most current package drawings, see the Microchip Packaging Specification at www.microchip.com/packaging. Note: For the most current package drawings, see the Microchip Packaging Specification at www.microchip.com/packaging.
Symbol A b b1 C D D1 E E1 e e1 H L
MIN 1.40 0.44 0.36 0.35 4.40 1.62 2.29 2.00
†
3.94 0.73
†
Dimensions 1.50 3.00 NOM - - - - - - - - - - (mm) BSC BSC MAX 1.60 0.56 0.48 0.44 4.60 1.83 2.60 2.29 4.25 1.20 JEDEC Registration TO-243, Variation AA, Issue C, July 1986.
†
This dimension differs from the JEDEC drawing
Drawings not to scale
