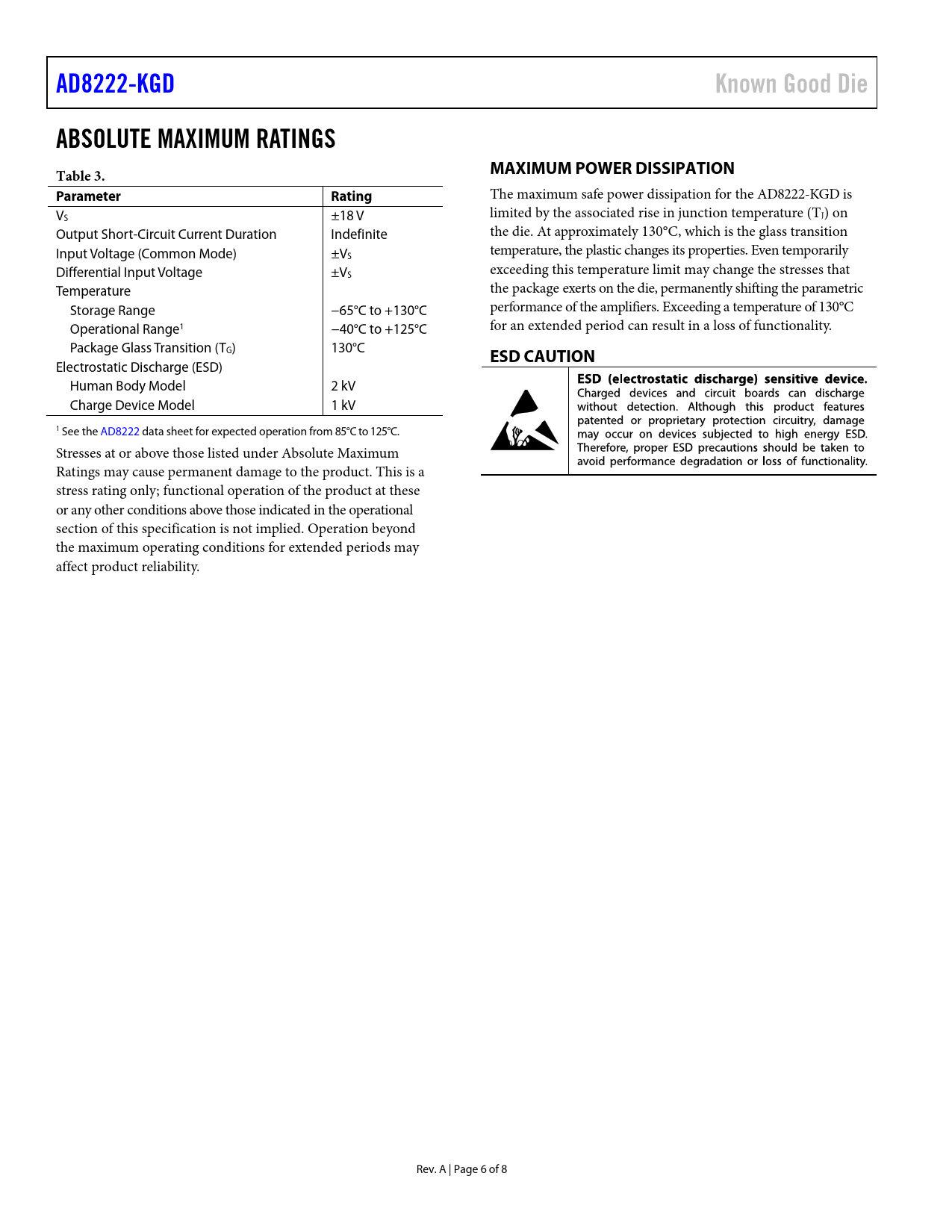

AD8222-KGD. Known Good Die. ABSOLUTE MAXIMUM RATINGS Table 3. MAXIMUM POWER DISSIPATION. Parameter. Rating. ESD CAUTION

AD8222-KGD Known Good Die ABSOLUTE MAXIMUM RATINGS Table 3 MAXIMUM POWER DISSIPATION Parameter Rating ESD CAUTION

Línea de modelo para esta hoja de datos

Versión de texto del documento

AD8222-KGD Known Good Die ABSOLUTE MAXIMUM RATINGS Table 3. MAXIMUM POWER DISSIPATION Parameter Rating
The maximum safe power dissipation for the AD8222-KGD is V limited by the associated rise in junction temperature (T S ±18 V J) on Output Short-Circuit Current Duration Indefinite the die. At approximately 130°C, which is the glass transition Input Voltage (Common Mode) ±V temperature, the plastic changes its properties. Even temporarily S Differential Input Voltage ±V exceeding this temperature limit may change the stresses that S Temperature the package exerts on the die, permanently shifting the parametric Storage Range −65°C to +130°C performance of the amplifiers. Exceeding a temperature of 130°C Operational Range1 −40°C to +125°C for an extended period can result in a loss of functionality. Package Glass Transition (TG) 130°C
ESD CAUTION
Electrostatic Discharge (ESD) Human Body Model 2 kV Charge Device Model 1 kV 1 See the AD8222 data sheet for expected operation from 85°C to 125°C. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. A | Page 6 of 8 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Absolute Maximum Ratings Maximum Power Dissipation ESD Caution Pin Configuration and Function Descriptions Outline Dimensions Die Specifications and Assembly Recommendations Ordering Guide
