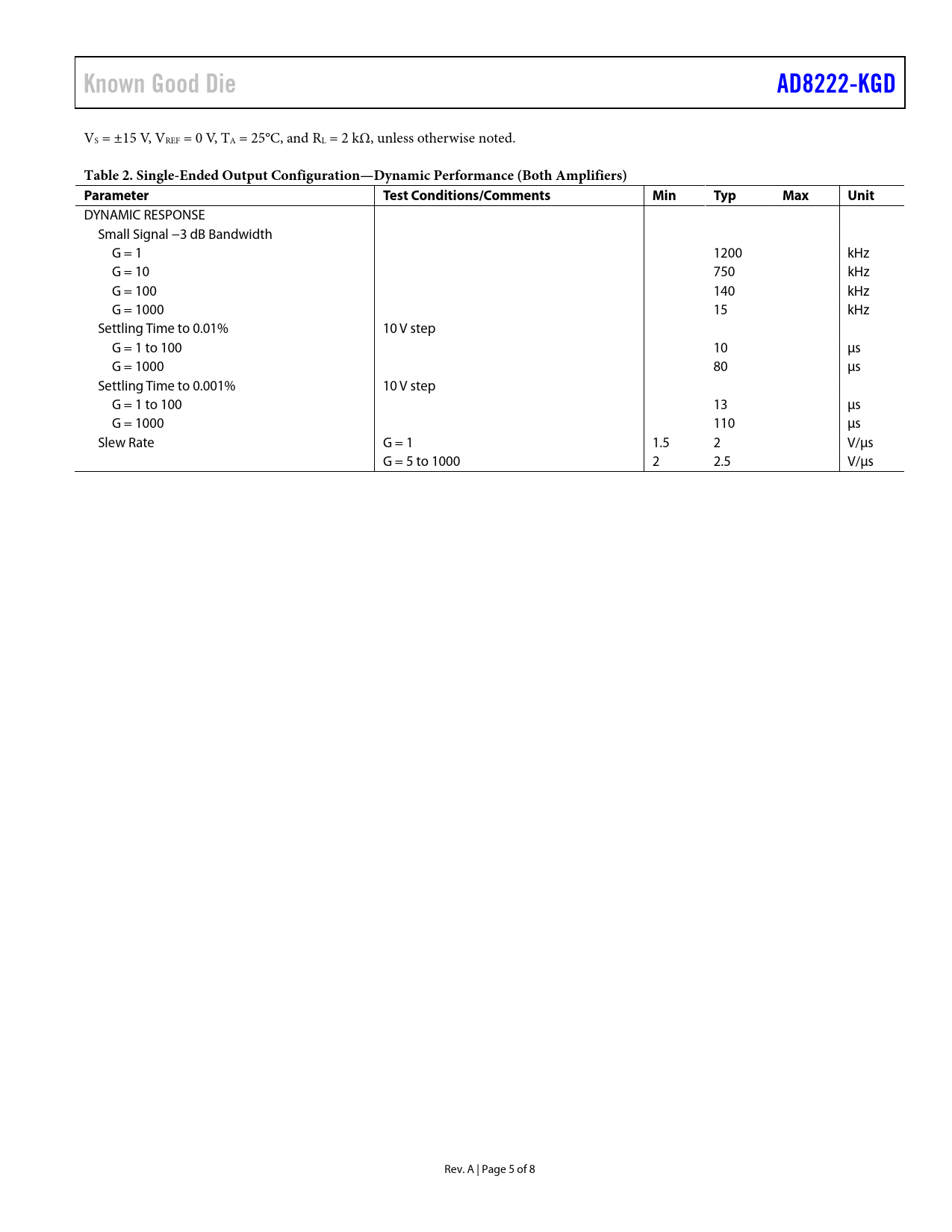

Known Good Die AD8222-KGD
VS = ±15 V, VREF = 0 V, TA = 25°C, and RL = 2 kΩ, unless otherwise noted.
Table 2. Single-Ended Output Configuration—Dynamic Performance (Both Amplifiers) Parameter Test Conditions/Comments Min Typ Max Unit
DYNAMIC RESPONSE Small Signal −3 dB Bandwidth G = 1 1200 kHz G = 10 750 kHz G = 100 140 kHz G = 1000 15 kHz Settling Time to 0.01% 10 V step G = 1 to 100 10 µs G = 1000 80 µs Settling Time to 0.001% 10 V step G = 1 to 100 13 µs G = 1000 110 µs Slew Rate G = 1 1.5 2 V/µs G = 5 to 1000 2 2.5 V/µs Rev. A | Page 5 of 8 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Absolute Maximum Ratings Maximum Power Dissipation ESD Caution Pin Configuration and Function Descriptions Outline Dimensions Die Specifications and Assembly Recommendations Ordering Guide
