A product Line of Diodes Incorporated

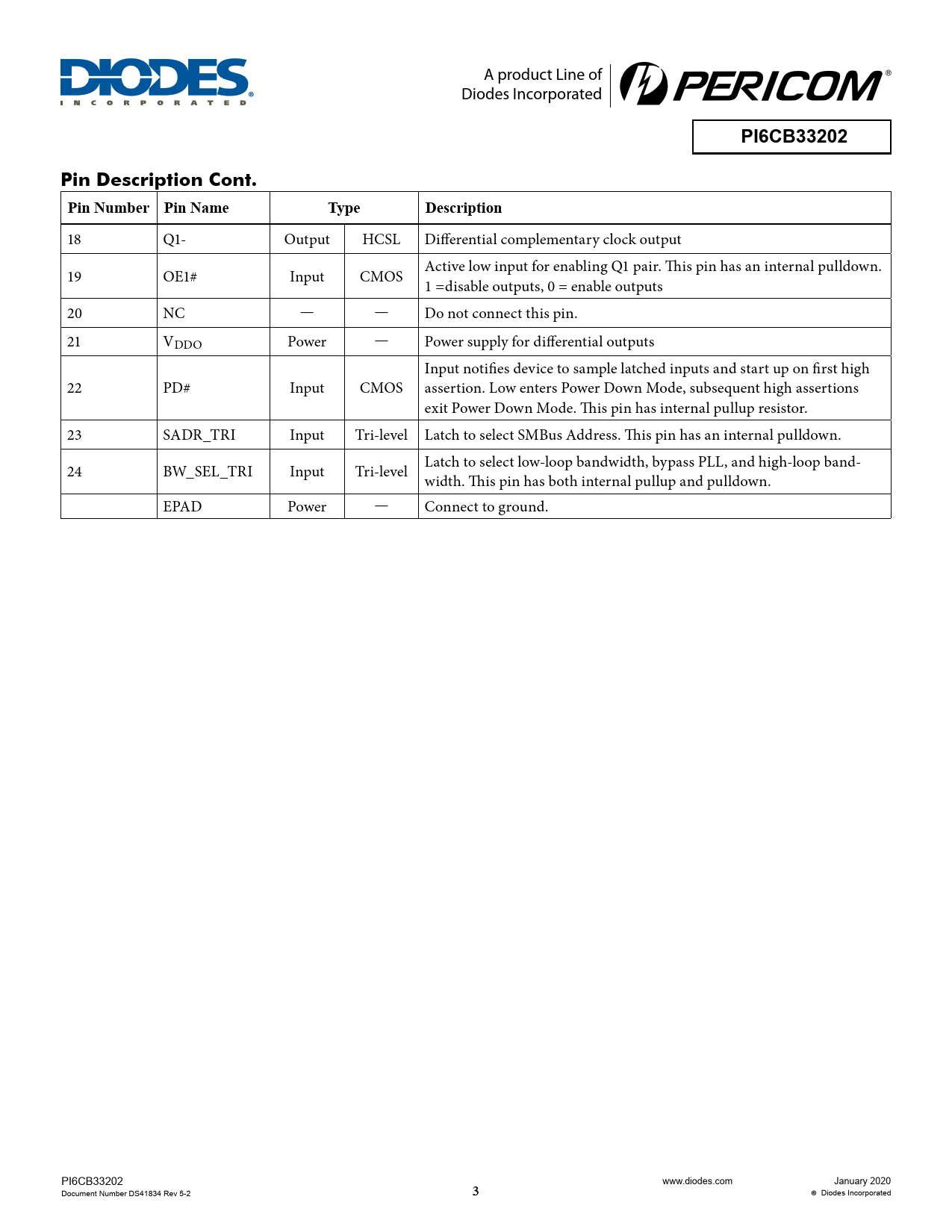

PI6CB33202 Pin Description Cont. Pin Number Pin Name Type Description
18 Q1- Output HCSL Differential complementary clock output 19 OE1# Input CMOS Active low input for enabling Q1 pair. This pin has an internal pulldown. 1 =disable outputs, 0 = enable outputs 20 NC — — Do not connect this pin. 21 VDDO Power — Power supply for differential outputs Input notifies device to sample latched inputs and start up on first high 22 PD# Input CMOS assertion. Low enters Power Down Mode, subsequent high assertions exit Power Down Mode. This pin has internal pullup resistor. 23 SADR_TRI Input Tri-level Latch to select SMBus Address. This pin has an internal pulldown. 24 BW_SEL_TRI Input Tri-level Latch to select low-loop bandwidth, bypass PLL, and high-loop band- width. This pin has both internal pullup and pulldown. EPAD Power — Connect to ground. PI6CB33202 www.diodes.com January 2020 Document Number DS41834 Rev 5-2 3 Diodes Incorporated
