A product Line of Diodes Incorporated

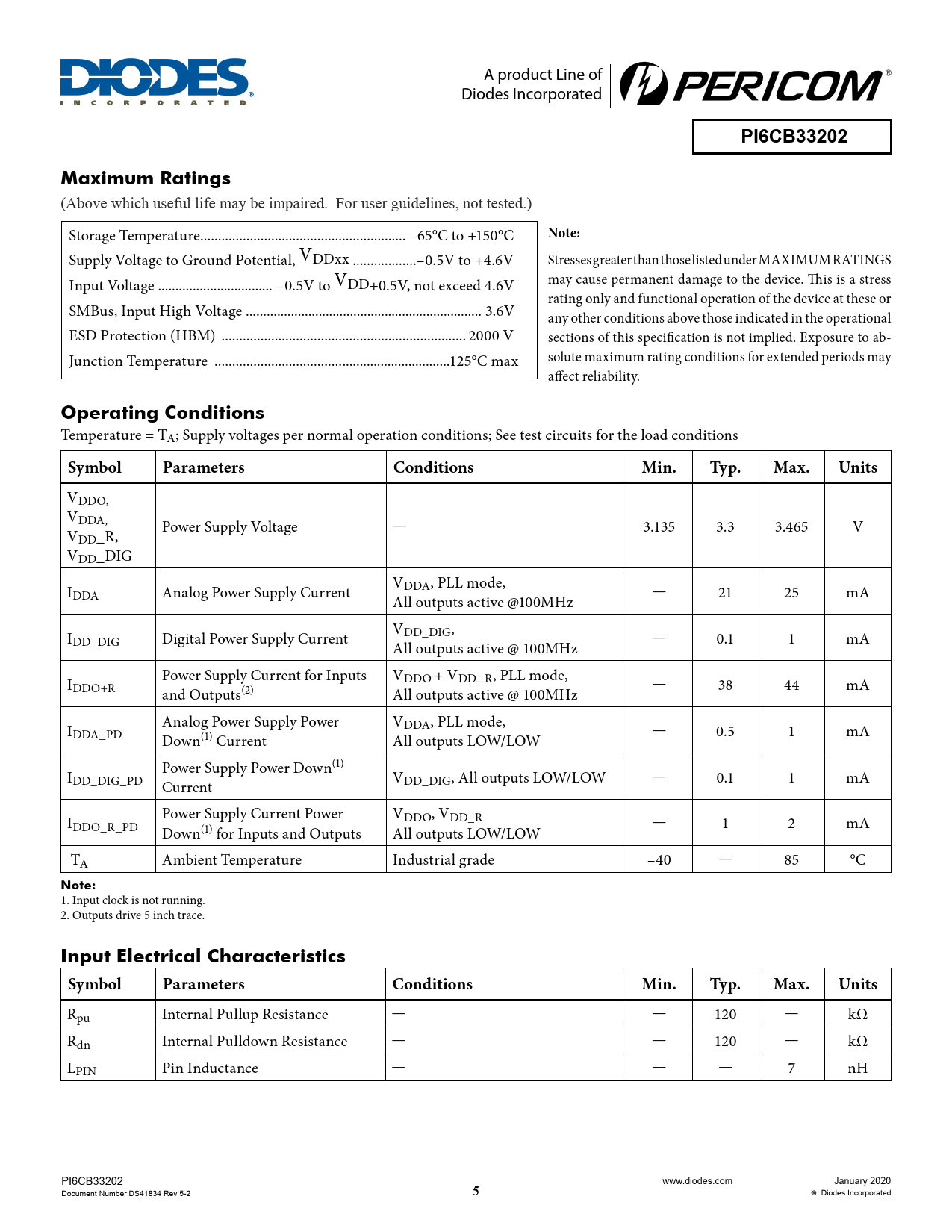

PI6CB33202 Maximum Ratings
(Above which useful life may be impaired. For user guidelines, not tested.) Storage Temperature .. –65°C to +150°C
Note:
Supply Voltage to Ground Potential, VDDxx ..–0.5V to +4.6V Stresses greater than those listed under MAXIMUM RATINGS Input Voltage ... –0.5V to VDD+0.5V, not exceed 4.6V may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or SMBus, Input High Voltage .. 3.6V any other conditions above those indicated in the operational ESD Protection (HBM) ... 2000 V sections of this specification is not implied. Exposure to ab- Junction Temperature ...125°C max solute maximum rating conditions for extended periods may affect reliability.
Operating Conditions
Temperature = TA; Supply voltages per normal operation conditions; See test circuits for the load conditions
Symbol Parameters Conditions Min. Typ. Max. Units
VDDO, VDDA, V Power Supply Voltage — 3.135 3.3 3.465 V DD_R, VDD_DIG IDDA Analog Power Supply Current VDDA, PLL mode, All outputs active @100MHz — 21 25 mA IDD_DIG Digital Power Supply Current VDD_DIG, All outputs active @ 100MHz — 0.1 1 mA I Power Supply Current for Inputs VDDO + VDD_R, PLL mode, DDO+R and Outputs(2) All outputs active @ 100MHz — 38 44 mA I Analog Power Supply Power VDDA, PLL mode, DDA_PD Down(1) Current All outputs LOW/LOW — 0.5 1 mA I Power Supply Power Down(1) DD_DIG_PD Current VDD_DIG, All outputs LOW/LOW — 0.1 1 mA I Power Supply Current Power VDDO, VDD_R DDO_R_PD Down(1) for Inputs and Outputs All outputs LOW/LOW — 1 2 mA TA Ambient Temperature Industrial grade –40 — 85 °C
Note:
1. Input clock is not running. 2. Outputs drive 5 inch trace.
Input Electrical Characteristics Symbol Parameters Conditions Min. Typ. Max. Units
Rpu Internal Pullup Resistance — — 120 — kΩ Rdn Internal Pulldown Resistance — — 120 — kΩ LPIN Pin Inductance — — — 7 nH PI6CB33202 www.diodes.com January 2020 Document Number DS41834 Rev 5-2 5 Diodes Incorporated
