| Descripción | 3.3V Very-Low Power 4-Output PCIe Clock Generator With On-chip Termination |
| Páginas / Página | 23 / 4 — PI6CG33402. SMBus Address Selection Table. SADR. Address. +Read/Write … |
| Formato / tamaño de archivo | PDF / 1.7 Mb |
| Idioma del documento | Inglés |

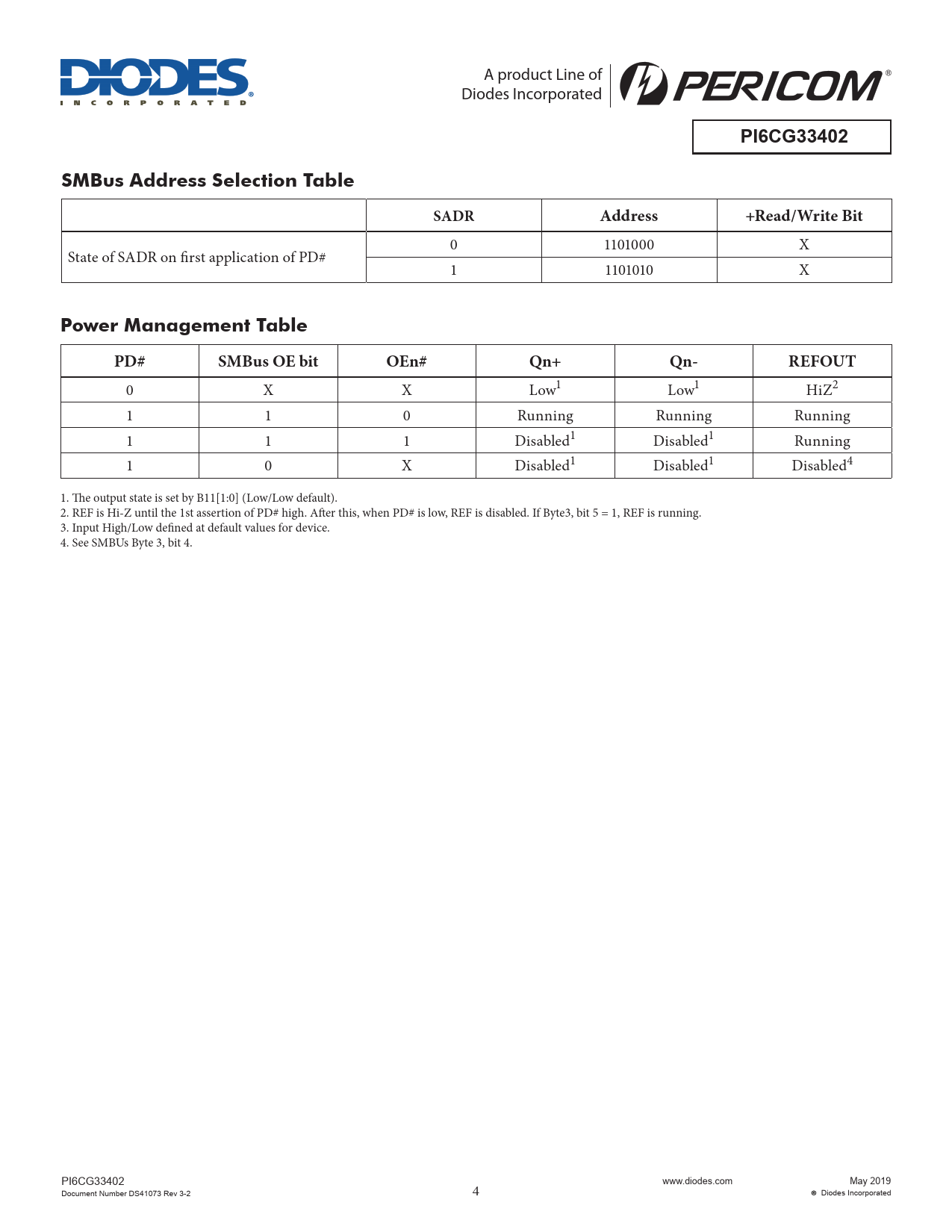

PI6CG33402. SMBus Address Selection Table. SADR. Address. +Read/Write Bit. Power Management Table. PD#. SMBus OE bit. OEn#. Qn+. Qn-. REFOUT
Línea de modelo para esta hoja de datos
Versión de texto del documento
A product Line of Diodes Incorporated
PI6CG33402 SMBus Address Selection Table SADR Address +Read/Write Bit
0 1101000 X State of SADR on first application of PD# 1 1101010 X
Power Management Table PD# SMBus OE bit OEn# Qn+ Qn- REFOUT
0 X X Low1 Low1 HiZ2 1 1 0 Running Running Running 1 1 1 Disabled1 Disabled1 Running 1 0 X Disabled1 Disabled1 Disabled4 1. The output state is set by B11[1:0] (Low/Low default). 2. REF is Hi-Z until the 1st assertion of PD# high. After this, when PD# is low, REF is disabled. If Byte3, bit 5 = 1, REF is running. 3. Input High/Low defined at default values for device. 4. See SMBUs Byte 3, bit 4. PI6CG33402 www.diodes.com May 2019 Document Number DS41073 Rev 3-2 4 Diodes Incorporated
