| Fabricante | Diodes |
| Descripción | 3.3V Very-Low Power 4-Output PCIe Clock Generator With On-chip Termination |
| Páginas / Página | 23 / 10 — PI6CG33402. HCSL Output AC Characteristics Cont. Spec. Symbol Parameters. … |
| Formato / tamaño de archivo | PDF / 1.7 Mb |
| Idioma del documento | Inglés |
PI6CG33402. HCSL Output AC Characteristics Cont. Spec. Symbol Parameters. Condition. Min. Typ. Max. Limit Units. Note:
Línea de modelo para esta hoja de datos
Versión de texto del documento
A product Line of Diodes Incorporated

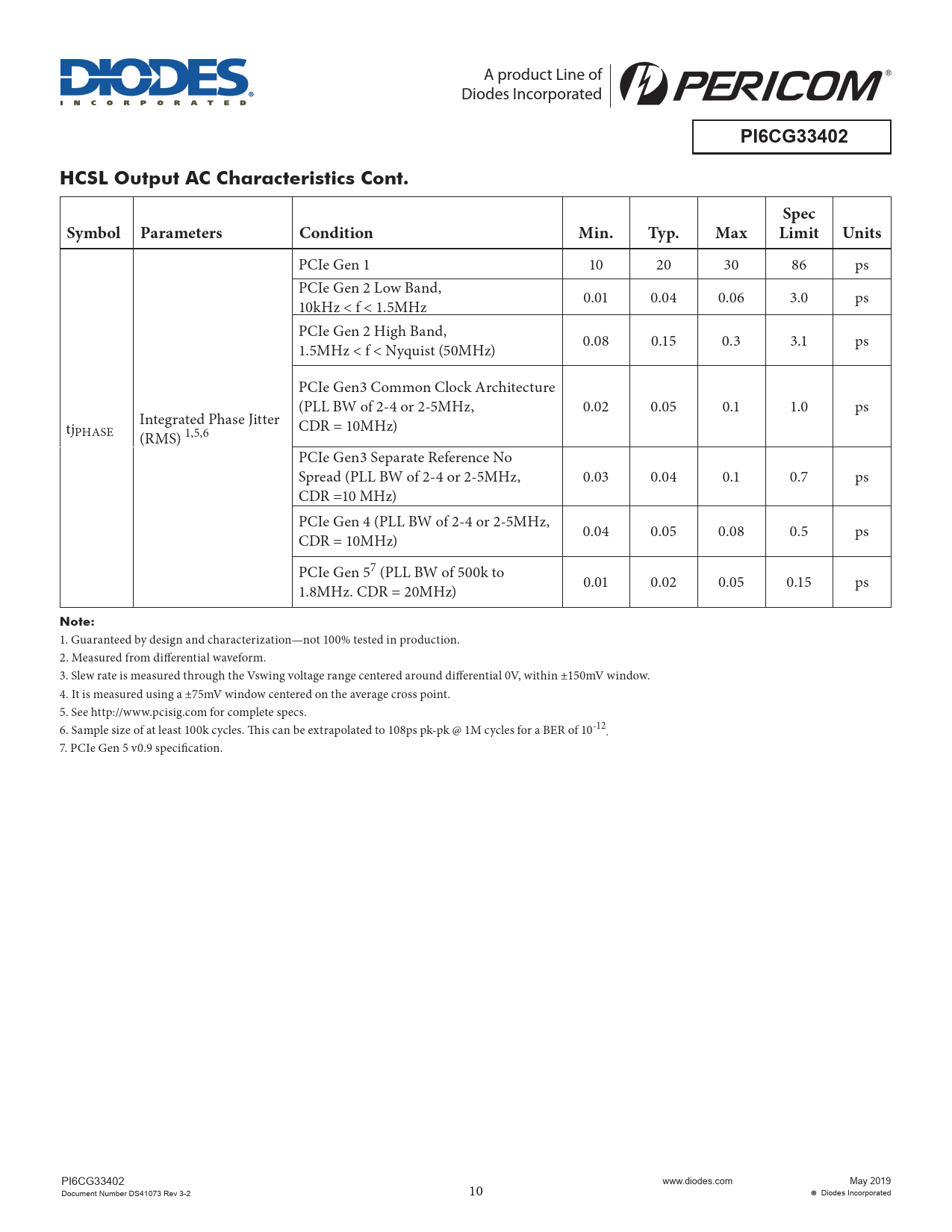

PI6CG33402 HCSL Output AC Characteristics Cont. Spec Symbol Parameters Condition Min. Typ. Max Limit Units
PCIe Gen 1 10 20 30 86 ps PCIe Gen 2 Low Band, 10kHz < f < 1.5MHz 0.01 0.04 0.06 3.0 ps PCIe Gen 2 High Band, 1.5MHz < f < Nyquist (50MHz) 0.08 0.15 0.3 3.1 ps PCIe Gen3 Common Clock Architecture (PLL BW of 2-4 or 2-5MHz, 0.02 0.05 0.1 1.0 ps tj Integrated Phase Jitter PHASE CDR = 10MHz) (RMS) 1,5,6 PCIe Gen3 Separate Reference No Spread (PLL BW of 2-4 or 2-5MHz, 0.03 0.04 0.1 0.7 ps CDR =10 MHz) PCIe Gen 4 (PLL BW of 2-4 or 2-5MHz, CDR = 10MHz) 0.04 0.05 0.08 0.5 ps PCIe Gen 57 (PLL BW of 500k to 1.8MHz. CDR = 20MHz) 0.01 0.02 0.05 0.15 ps
Note:
1. Guaranteed by design and characterization—not 100% tested in production. 2. Measured from differential waveform. 3. Slew rate is measured through the Vswing voltage range centered around differential 0V, within ±150mV window. 4. It is measured using a ±75mV window centered on the average cross point. 5. See http://www.pcisig.com for complete specs. 6. Sample size of at least 100k cycles. This can be extrapolated to 108ps pk-pk @ 1M cycles for a BER of 10-12. 7. PCIe Gen 5 v0.9 specification. PI6CG33402 www.diodes.com May 2019 Document Number DS41073 Rev 3-2 10 Diodes Incorporated
PI6CG33402 HCSL Output AC Characteristics Cont. Spec Symbol Parameters Condition Min. Typ. Max Limit Units
PCIe Gen 1 10 20 30 86 ps PCIe Gen 2 Low Band, 10kHz < f < 1.5MHz 0.01 0.04 0.06 3.0 ps PCIe Gen 2 High Band, 1.5MHz < f < Nyquist (50MHz) 0.08 0.15 0.3 3.1 ps PCIe Gen3 Common Clock Architecture (PLL BW of 2-4 or 2-5MHz, 0.02 0.05 0.1 1.0 ps tj Integrated Phase Jitter PHASE CDR = 10MHz) (RMS) 1,5,6 PCIe Gen3 Separate Reference No Spread (PLL BW of 2-4 or 2-5MHz, 0.03 0.04 0.1 0.7 ps CDR =10 MHz) PCIe Gen 4 (PLL BW of 2-4 or 2-5MHz, CDR = 10MHz) 0.04 0.05 0.08 0.5 ps PCIe Gen 57 (PLL BW of 500k to 1.8MHz. CDR = 20MHz) 0.01 0.02 0.05 0.15 ps
Note:
1. Guaranteed by design and characterization—not 100% tested in production. 2. Measured from differential waveform. 3. Slew rate is measured through the Vswing voltage range centered around differential 0V, within ±150mV window. 4. It is measured using a ±75mV window centered on the average cross point. 5. See http://www.pcisig.com for complete specs. 6. Sample size of at least 100k cycles. This can be extrapolated to 108ps pk-pk @ 1M cycles for a BER of 10-12. 7. PCIe Gen 5 v0.9 specification. PI6CG33402 www.diodes.com May 2019 Document Number DS41073 Rev 3-2 10 Diodes Incorporated
