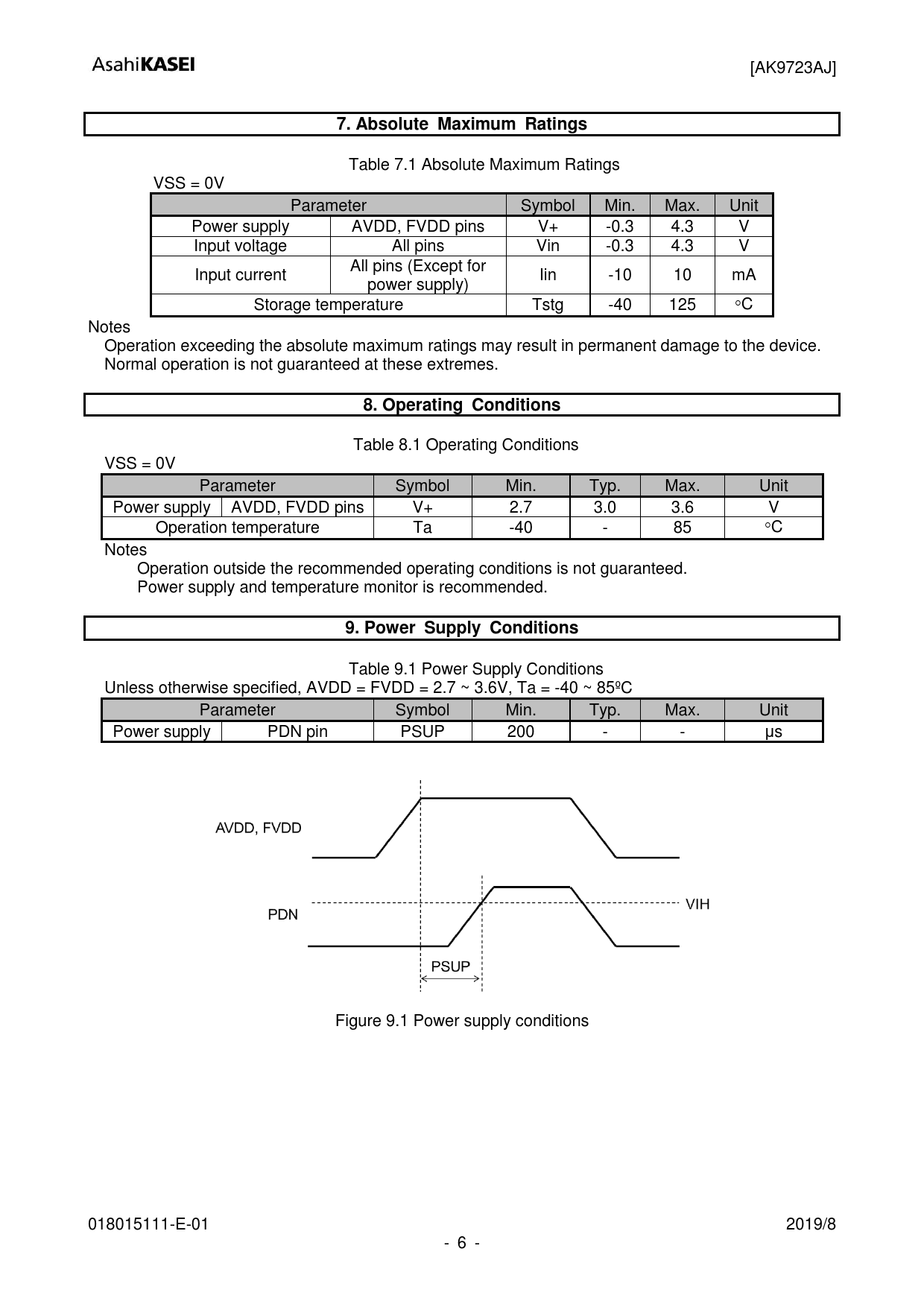

7. Absolute Maximum Ratings. 8. Operating Conditions. 9. Power Supply Conditions
Línea de modelo para esta hoja de datos
Versión de texto del documento
[AK9723AJ]
7. Absolute Maximum Ratings
Table 7.1 Absolute Maximum Ratings VSS = 0V Parameter Symbol Min. Max. Unit Power supply AVDD, FVDD pins V+ -0.3 4.3 V Input voltage All pins Vin -0.3 4.3 V All pins (Except for Input current Iin -10 10 mA power supply) Storage temperature Tstg -40 125 C Notes Operation exceeding the absolute maximum ratings may result in permanent damage to the device. Normal operation is not guaranteed at these extremes.
8. Operating Conditions
Table 8.1 Operating Conditions VSS = 0V Parameter Symbol Min. Typ. Max. Unit Power supply AVDD, FVDD pins V+ 2.7 3.0 3.6 V Operation temperature Ta -40 - 85 C Notes Operation outside the recommended operating conditions is not guaranteed. Power supply and temperature monitor is recommended.
9. Power Supply Conditions
Table 9.1 Power Supply Conditions Unless otherwise specified, AVDD = FVDD = 2.7 ~ 3.6V, Ta = -40 ~ 85ºC Parameter Symbol Min. Typ. Max. Unit Power supply PDN pin PSUP 200 - - μs Figure 9.1 Power supply conditions 018015111-E-01 2019/8 - 6 -
