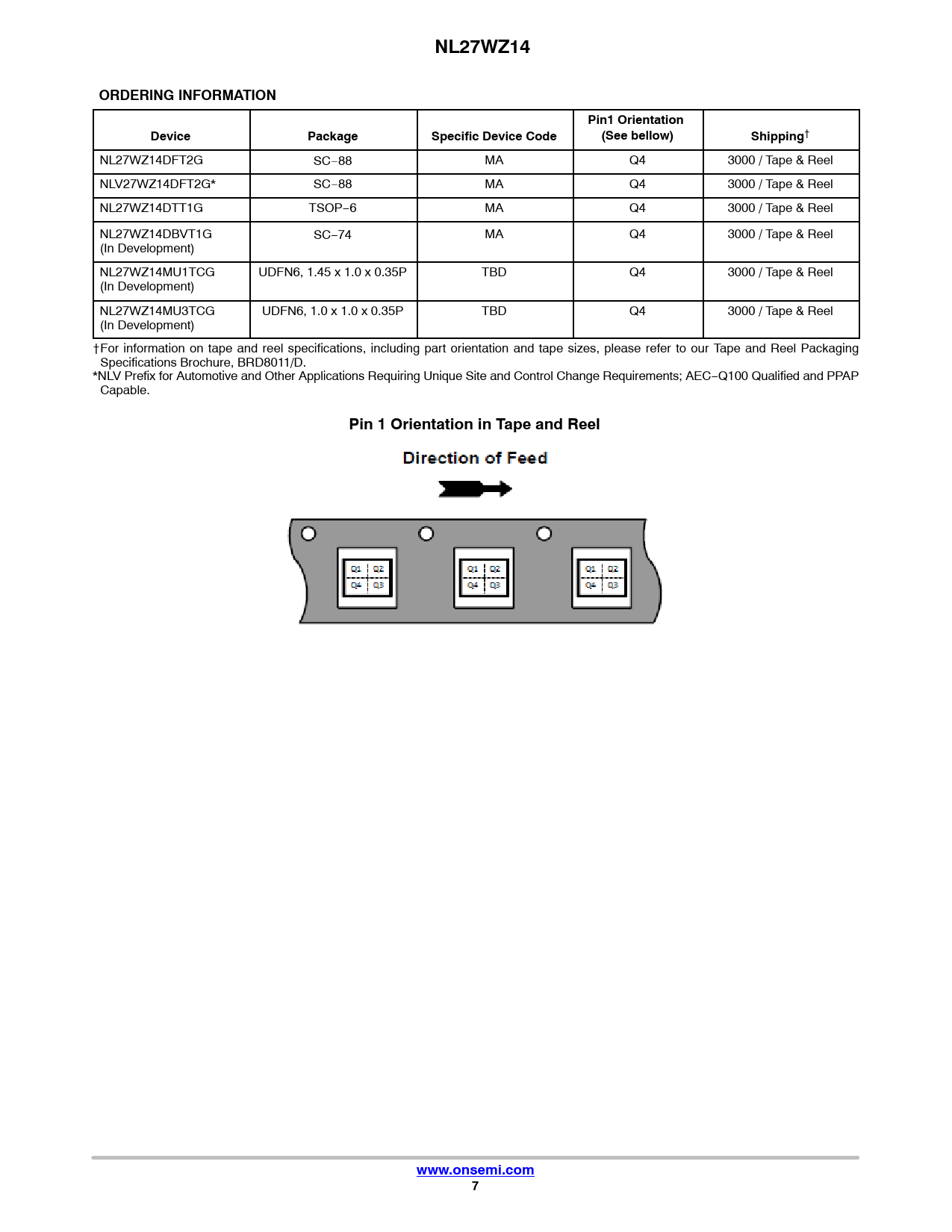

NL27WZ14. ORDERING INFORMATION. Pin1 Orientation. Device. Package. Specific Device Code. (See bellow). Shipping
Línea de modelo para esta hoja de datos
Versión de texto del documento
NL27WZ14 ORDERING INFORMATION Pin1 Orientation Device Package Specific Device Code (See bellow) Shipping
† NL27WZ14DFT2G SC−88 MA Q4 3000 / Tape & Reel NLV27WZ14DFT2G* SC−88 MA Q4 3000 / Tape & Reel NL27WZ14DTT1G TSOP−6 MA Q4 3000 / Tape & Reel NL27WZ14DBVT1G SC−74 MA Q4 3000 / Tape & Reel (In Development) NL27WZ14MU1TCG UDFN6, 1.45 x 1.0 x 0.35P TBD Q4 3000 / Tape & Reel (In Development) NL27WZ14MU3TCG UDFN6, 1.0 x 1.0 x 0.35P TBD Q4 3000 / Tape & Reel (In Development) †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. *NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable.
Pin 1 Orientation in Tape and Reel www.onsemi.com 7
