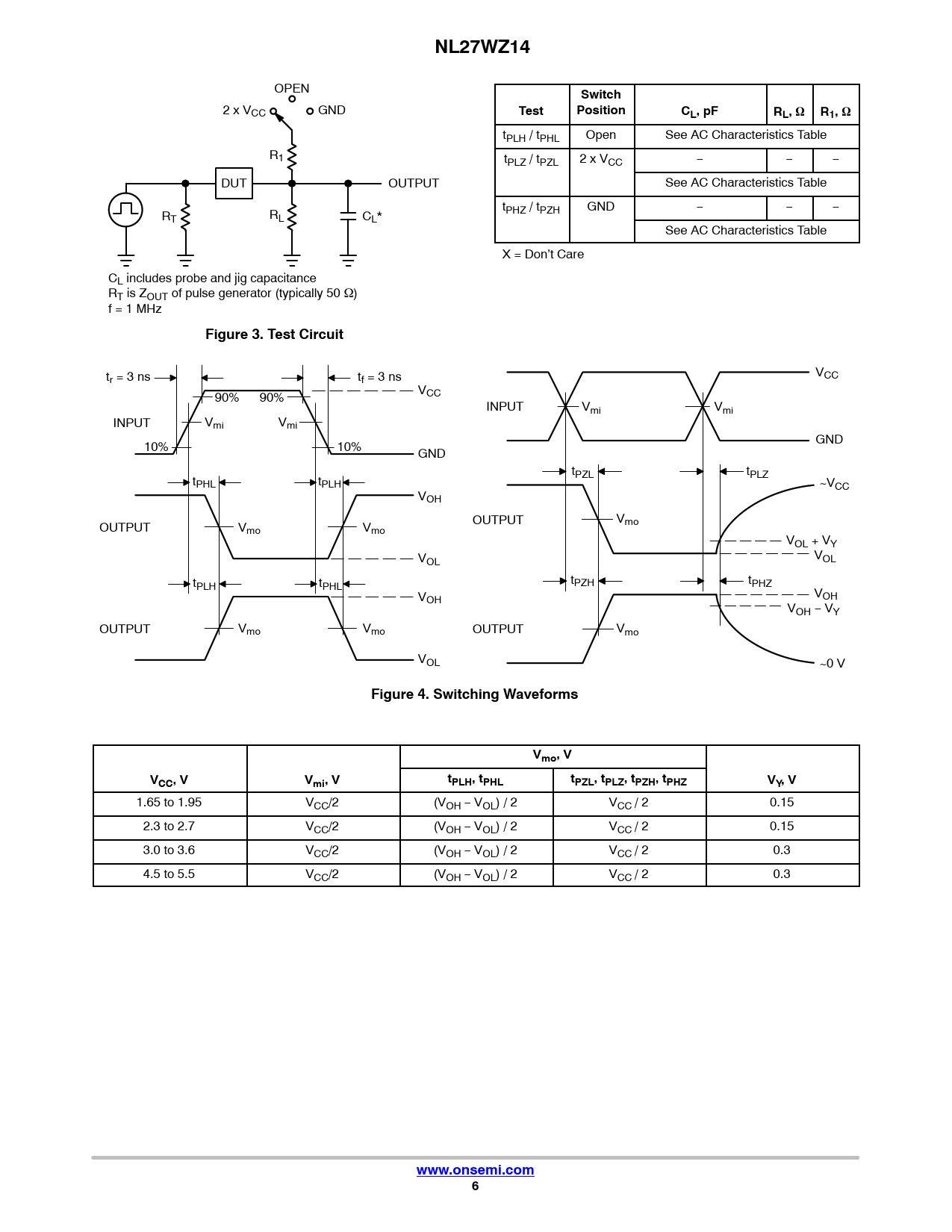

NL27WZ14. Switch. Test. Position. CL, pF. RL, W R1, W. Figure 3. Test Circuit. Figure 4. Switching Waveforms. Vmo, V. VCC, V. Vmi, V
Línea de modelo para esta hoja de datos
Versión de texto del documento
NL27WZ14
OPEN
Switch
2 x VCC GND
Test Position CL, pF RL, W R1, W
tPLH / tPHL Open See AC Characteristics Table R1 tPLZ / tPZL 2 x VCC − − − DUT OUTPUT See AC Characteristics Table t R PHZ / tPZH GND − − − T RL CL* See AC Characteristics Table X = Don’t Care CL includes probe and jig capacitance RT is ZOUT of pulse generator (typically 50 W) f = 1 MHz
Figure 3. Test Circuit
t V r = 3 ns tf = 3 ns CC V 90% 90% CC INPUT Vmi Vmi INPUT Vmi Vmi 10% 10% GND GND tPZL tPLZ tPHL tPLH ~VCC VOH OUTPUT V OUTPUT V mo mo Vmo VOL + VY V V OL OL t t PZH tPHZ PLH tPHL V V OH OH VOH − VY OUTPUT Vmo Vmo OUTPUT Vmo VOL ~0 V
Figure 4. Switching Waveforms Vmo, V VCC, V Vmi, V tPLH, tPHL tPZL, tPLZ, tPZH, tPHZ VY, V
1.65 to 1.95 VCC/2 (VOH − VOL) / 2 VCC / 2 0.15 2.3 to 2.7 VCC/2 (VOH − VOL) / 2 VCC / 2 0.15 3.0 to 3.6 VCC/2 (VOH − VOL) / 2 VCC / 2 0.3 4.5 to 5.5 VCC/2 (VOH − VOL) / 2 VCC / 2 0.3
www.onsemi.com 6
