Datasheet MMBT4403 (Diodes) - 5
| Fabricante | Diodes |
| Descripción | 40V PNP SURFACE MOUNT SMALL SIGNAL TRANSISTOR IN SOT23 |
| Páginas / Página | 6 / 5 — MMBT4403. Package Outline Dimensions. SOT23. Dim Min Max Typ. All … |
| Formato / tamaño de archivo | PDF / 153 Kb |
| Idioma del documento | Inglés |

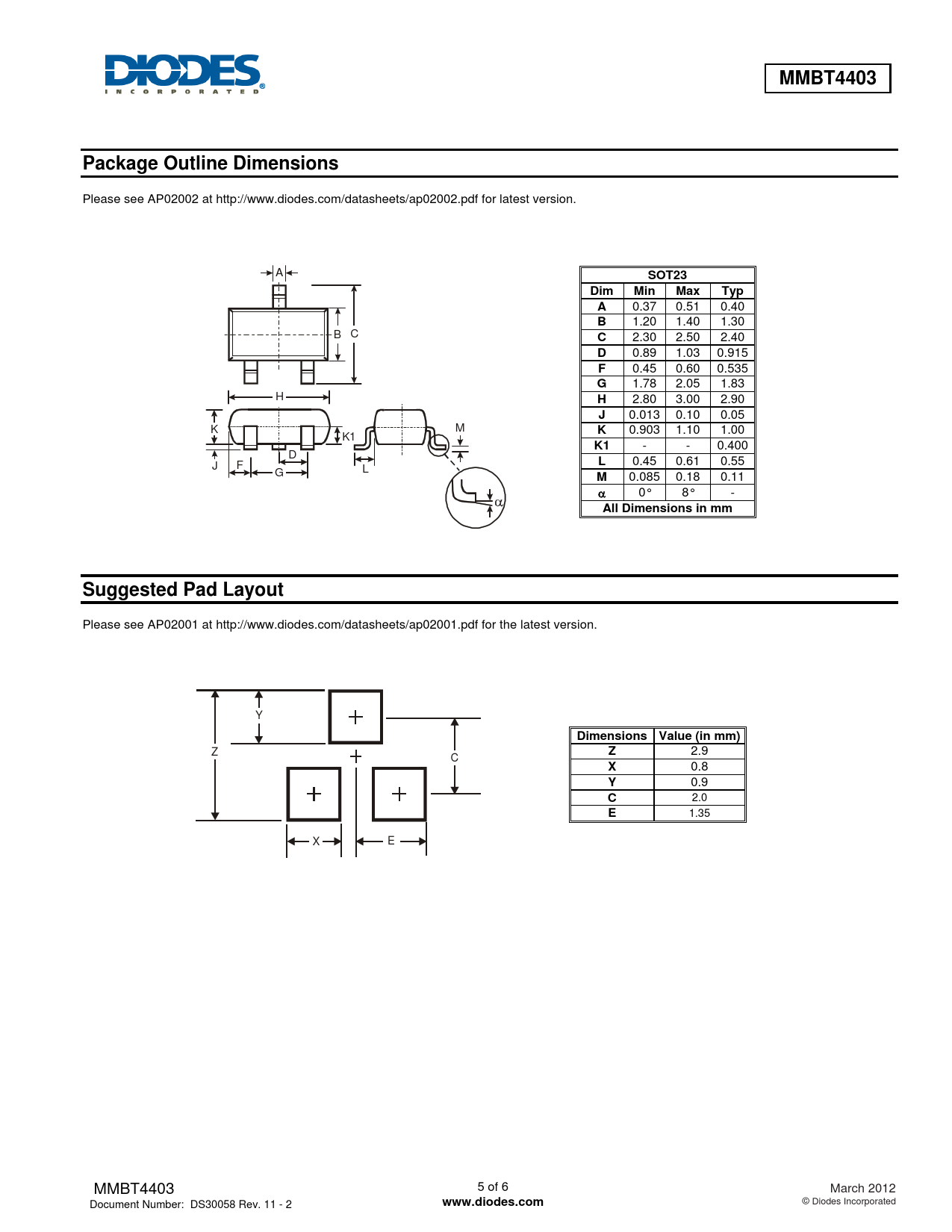

MMBT4403. Package Outline Dimensions. SOT23. Dim Min Max Typ. All Dimensions in mm. Suggested Pad Layout. Dimensions. Value (in mm)
Línea de modelo para esta hoja de datos
Versión de texto del documento
MMBT4403 Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version. A
SOT23 Dim Min Max Typ A
0.37 0.51 0.40
B
1.20 1.40 1.30 B C
C
2.30 2.50 2.40
D
0.89 1.03 0.915
F
0.45 0.60 0.535
G
1.78 2.05 1.83 H
H
2.80 3.00 2.90
J
0.013 0.10 0.05 K M
K
0.903 1.10 1.00 K1
K1
- - 0.400 D
L
0.45 0.61 0.55 J F L G
M
0.085 0.18 0.11 α 0° 8° -
All Dimensions in mm Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version. Y
Dimensions Value (in mm)
Z
Z
2.9 C
X
0.8
Y
0.9
C
2.0
E
1.35 X E MMBT4403 5 of 6 March 2012 Document Number: DS30058 Rev. 11 - 2
www.diodes.com
© Diodes Incorporated
