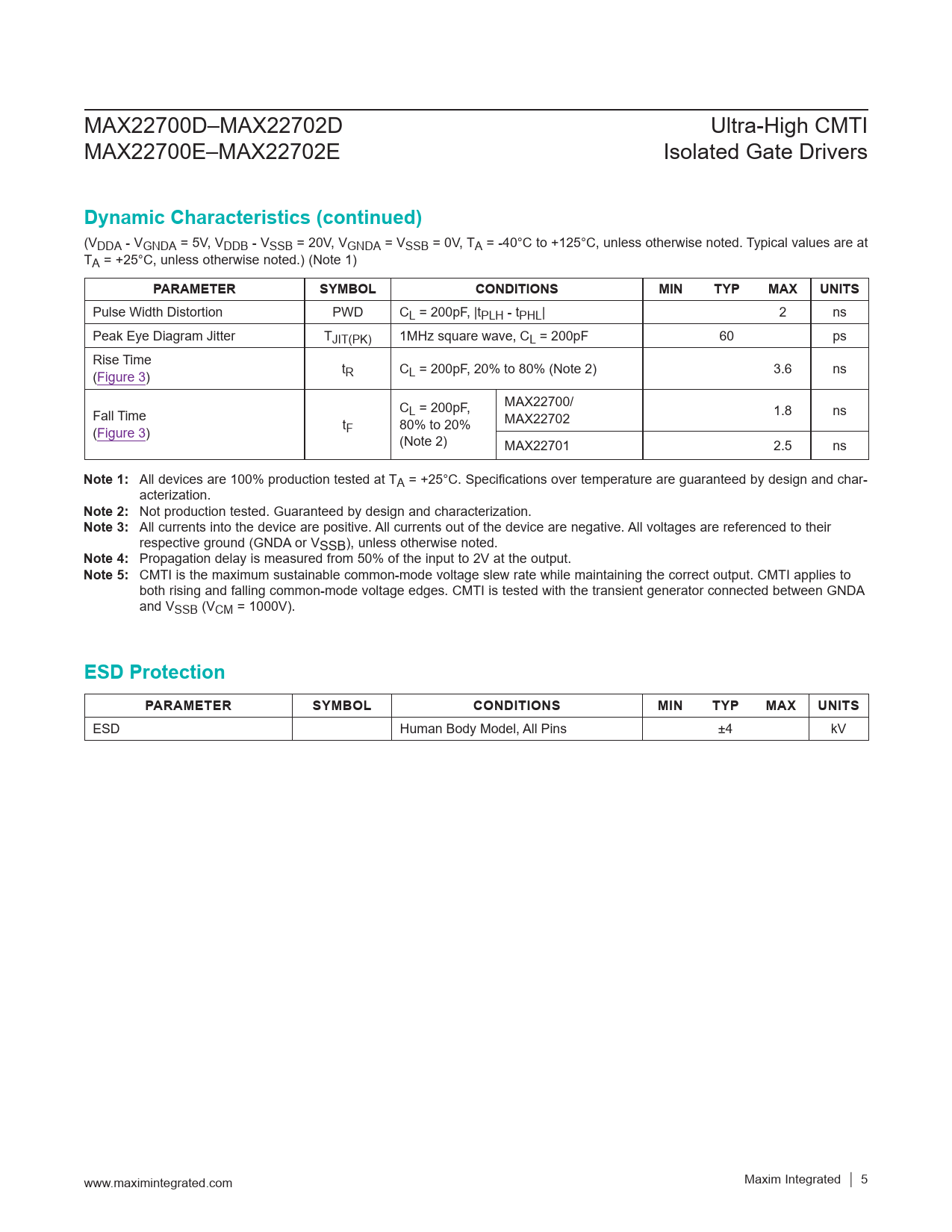

link to page 8 link to page 8 MAX22700D–MAX22702D Ultra-High CMTI MAX22700E–MAX22702E Isolated Gate Drivers
Dynamic Characteristics (continued)
(VDDA - VGNDA = 5V, VDDB - VSSB = 20V, VGNDA = VSSB = 0V, TA = -40°C to +125°C, unless otherwise noted. Typical values are at TA = +25°C, unless otherwise noted.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Pulse Width Distortion PWD CL = 200pF, |tPLH - tPHL| 2 ns Peak Eye Diagram Jitter TJIT(PK) 1MHz square wave, CL = 200pF 60 ps Rise Time (Figure 3) tR CL = 200pF, 20% to 80% (Note 2) 3.6 ns MAX22700/ Fall Time CL = 200pF, MAX22702 1.8 ns (Figure 3) tF 80% to 20% (Note 2) MAX22701 2.5 ns
Note 1:
All devices are 100% production tested at TA = +25°C. Specifications over temperature are guaranteed by design and char- acterization.
Note 2:
Not production tested. Guaranteed by design and characterization.
Note 3:
All currents into the device are positive. All currents out of the device are negative. All voltages are referenced to their respective ground (GNDA or VSSB), unless otherwise noted.
Note 4:
Propagation delay is measured from 50% of the input to 2V at the output.
Note 5:
CMTI is the maximum sustainable common-mode voltage slew rate while maintaining the correct output. CMTI applies to both rising and falling common-mode voltage edges. CMTI is tested with the transient generator connected between GNDA and VSSB (VCM = 1000V).
ESD Protection PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
ESD Human Body Model, All Pins ±4 kV www.maximintegrated.com Maxim Integrated │ 5
