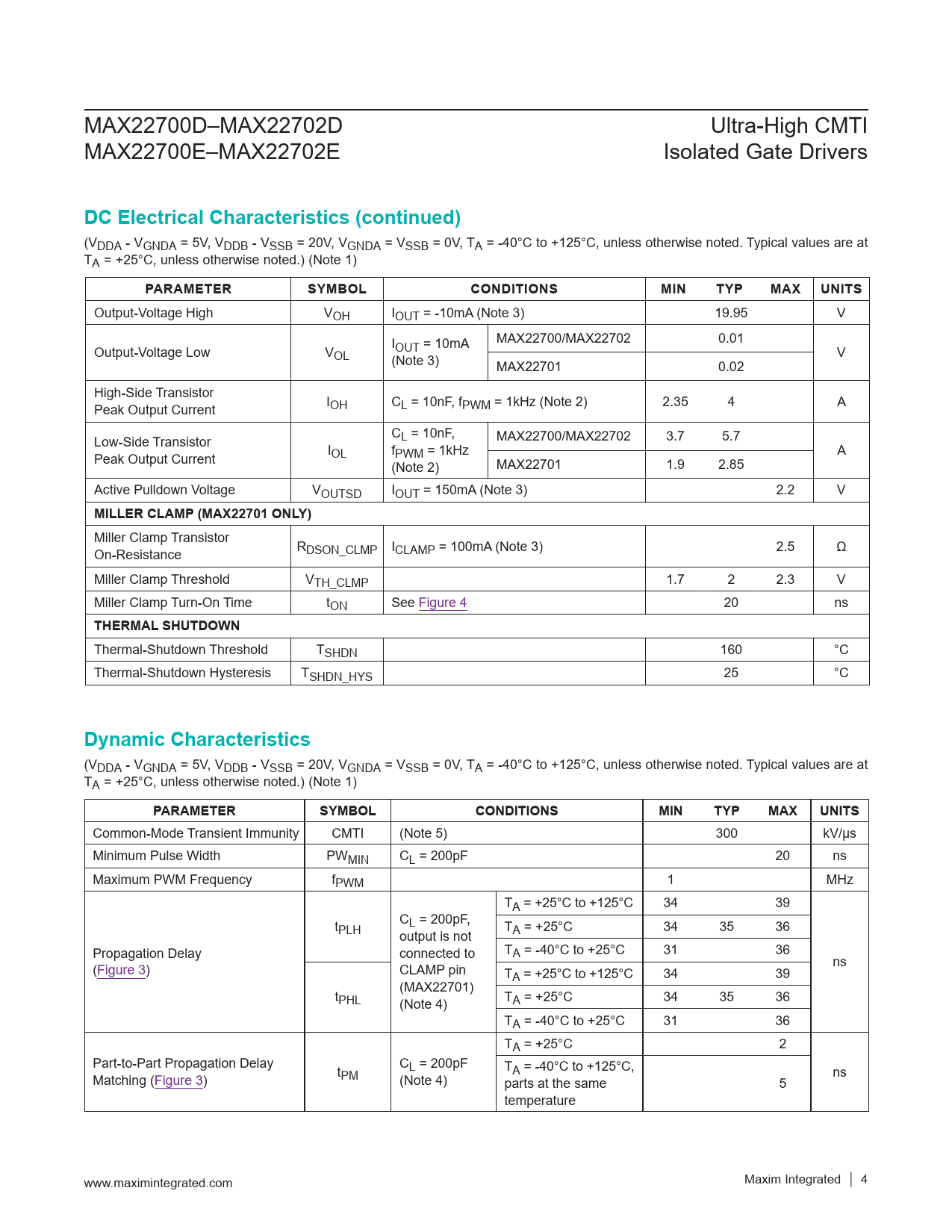

link to page 8 link to page 8 link to page 8 MAX22700D–MAX22702D Ultra-High CMTI MAX22700E–MAX22702E Isolated Gate Drivers
DC Electrical Characteristics (continued)
(VDDA - VGNDA = 5V, VDDB - VSSB = 20V, VGNDA = VSSB = 0V, TA = -40°C to +125°C, unless otherwise noted. Typical values are at TA = +25°C, unless otherwise noted.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Output-Voltage High VOH IOUT = -10mA (Note 3) 19.95 V MAX22700/MAX22702 0.01 Output-Voltage Low V IOUT = 10mA OL (Note 3) V MAX22701 0.02 High-Side Transistor Peak Output Current IOH CL = 10nF, fPWM = 1kHz (Note 2) 2.35 4 A Low-Side Transistor CL = 10nF, MAX22700/MAX22702 3.7 5.7 Peak Output Current IOL fPWM = 1kHz A (Note 2) MAX22701 1.9 2.85 Active Pulldown Voltage VOUTSD IOUT = 150mA (Note 3) 2.2 V
MILLER CLAMP (MAX22701 ONLY)
Miller Clamp Transistor On-Resistance RDSON_CLMP ICLAMP = 100mA (Note 3) 2.5 Ω Miller Clamp Threshold VTH_CLMP 1.7 2 2.3 V Miller Clamp Turn-On Time tON See Figure 4 20 ns
THERMAL SHUTDOWN
Thermal-Shutdown Threshold TSHDN 160 °C Thermal-Shutdown Hysteresis TSHDN_HYS 25 °C
Dynamic Characteristics
(VDDA - VGNDA = 5V, VDDB - VSSB = 20V, VGNDA = VSSB = 0V, TA = -40°C to +125°C, unless otherwise noted. Typical values are at TA = +25°C, unless otherwise noted.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Common-Mode Transient Immunity CMTI (Note 5) 300 kV/µs Minimum Pulse Width PWMIN CL = 200pF 20 ns Maximum PWM Frequency fPWM 1 MHz TA = +25°C to +125°C 34 39 t C PLH L = 200pF, T output is not A = +25°C 34 35 36 Propagation Delay connected to TA = -40°C to +25°C 31 36 (Figure 3) CLAMP pin ns TA = +25°C to +125°C 34 39 (MAX22701) tPHL (Note 4) TA = +25°C 34 35 36 TA = -40°C to +25°C 31 36 TA = +25°C 2 Part-to-Part Propagation Delay CL = 200pF TA = -40°C to +125°C, Matching (Figure 3) tPM (Note 4) ns parts at the same 5 temperature www.maximintegrated.com Maxim Integrated │ 4
