Datasheet PAM8904Q (Diodes) - 2

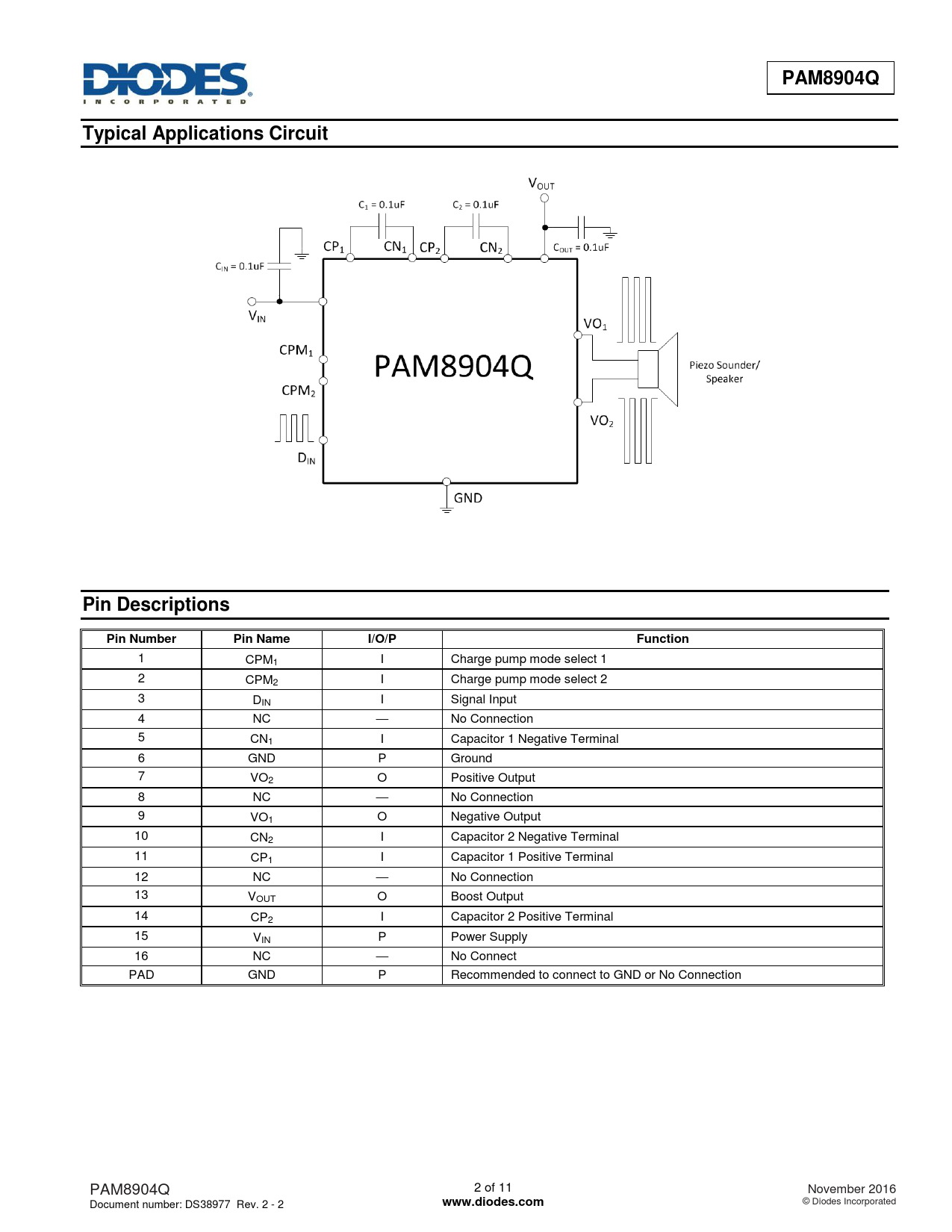

PAM8904Q Typical Applications Circuit Pin Descriptions Pin Number Pin Name I/O/P Function
1 CPM1 I Charge pump mode select 1 2 CPM2 I Charge pump mode select 2 3 DIN I Signal Input 4 NC — No Connection 5 CN1 I Capacitor 1 Negative Terminal 6 GND P Ground 7 VO2 O Positive Output 8 NC — No Connection 9 VO1 O Negative Output 10 CN2 I Capacitor 2 Negative Terminal 11 CP1 I Capacitor 1 Positive Terminal 12 NC — No Connection 13 VOUT O Boost Output 14 CP2 I Capacitor 2 Positive Terminal 15 VIN P Power Supply 16 NC — No Connect PAD GND P Recommended to connect to GND or No Connection PAM8904Q 2 of 11 November 2016 Document number: DS38977 Rev. 2 - 2
