Datasheet PAM8904Q (Diodes)
| Fabricante | Diodes |
| Descripción | Automotive 18VPP Output Peizo Sounder Driver |
| Páginas / Página | 11 / 1 — PAM8904Q. AUTOMOTIVE 18VPP OUTPUT PEIZO SOUNDER DRIVER. Description. Pin … |
| Formato / tamaño de archivo | PDF / 407 Kb |
| Idioma del documento | Inglés |

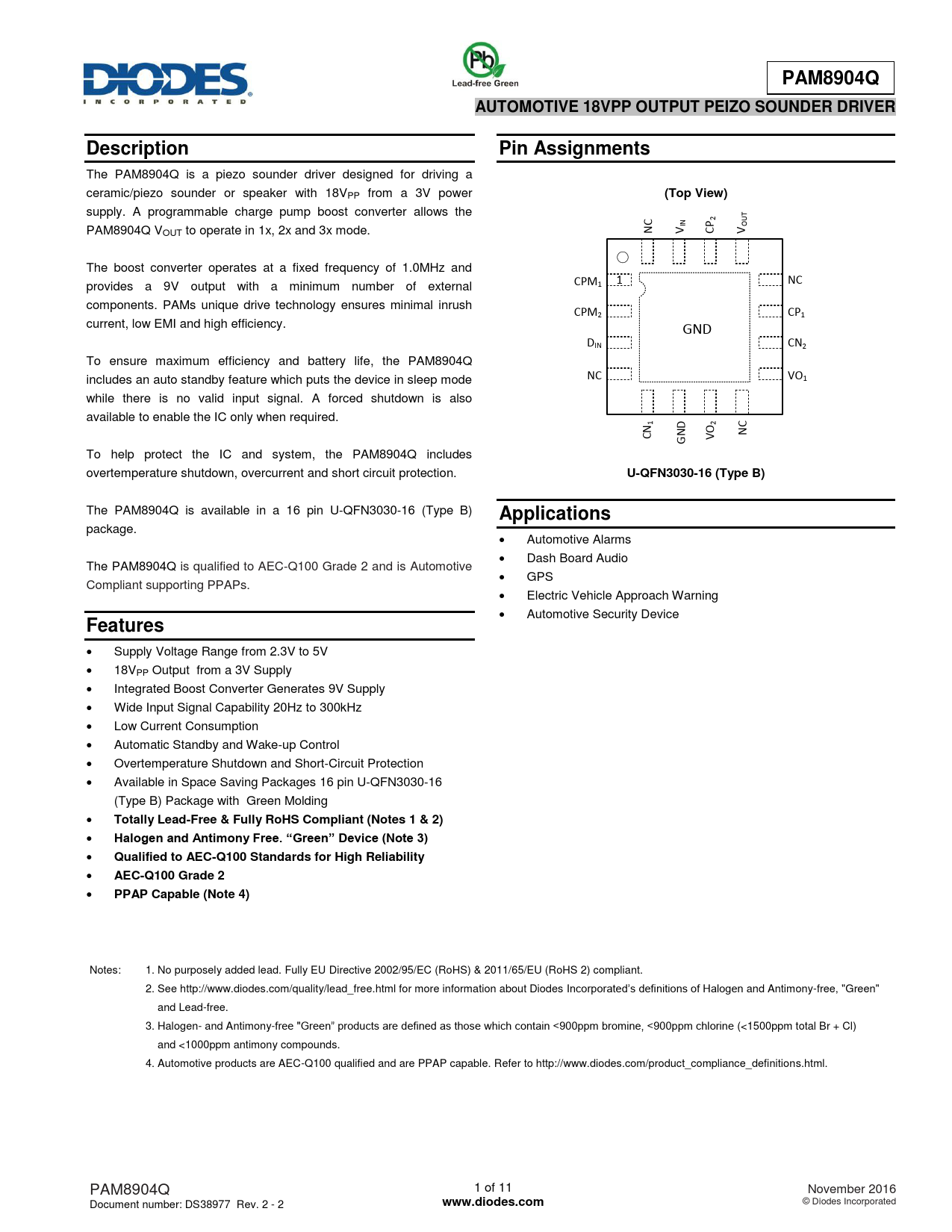

PAM8904Q. AUTOMOTIVE 18VPP OUTPUT PEIZO SOUNDER DRIVER. Description. Pin Assignments. (Top View). U-QFN3030-16 (Type B)
Línea de modelo para esta hoja de datos
Versión de texto del documento
PAM8904Q AUTOMOTIVE 18VPP OUTPUT PEIZO SOUNDER DRIVER Description Pin Assignments
The PAM8904Q is a piezo sounder driver designed for driving a ceramic/piezo sounder or speaker with 18VPP from a 3V power
(Top View)
supply. A programmable charge pump boost converter allows the T C P 2 U PAM8904Q VOUT to operate in 1x, 2x and 3x mode. N V IN C V O The boost converter operates at a fixed frequency of 1.0MHz and CPM 1 NC provides a 9V output with a minimum number of external 1 components. PAMs unique drive technology ensures minimal inrush CPM2 CP1 current, low EMI and high efficiency. GND DIN CN2 To ensure maximum efficiency and battery life, the PAM8904Q includes an auto standby feature which puts the device in sleep mode NC VO1 while there is no valid input signal. A forced shutdown is also available to enable the IC only when required. 1 2 D N O C N C V N G To help protect the IC and system, the PAM8904Q includes overtemperature shutdown, overcurrent and short circuit protection.
U-QFN3030-16 (Type B)
The PAM8904Q is available in a 16 pin U-QFN3030-16 (Type B)
Applications
package. Automotive Alarms Dash Board Audio The PAM8904Q is qualified to AEC-Q100 Grade 2 and is Automotive GPS Compliant supporting PPAPs. Electric Vehicle Approach Warning Automotive Security Device
Features
Supply Voltage Range from 2.3V to 5V 18VPP Output from a 3V Supply Integrated Boost Converter Generates 9V Supply Wide Input Signal Capability 20Hz to 300kHz Low Current Consumption Automatic Standby and Wake-up Control Overtemperature Shutdown and Short-Circuit Protection Available in Space Saving Packages 16 pin U-QFN3030-16 (Type B) Package with Green Molding
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q100 Standards for High Reliability AEC-Q100 Grade 2 PPAP Capable (Note 4)
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. Automotive products are AEC-Q100 qualified and are PPAP capable. Refer to http://www.diodes.com/product_compliance_definitions.html. PAM8904Q 1 of 11 November 2016 Document number: DS38977 Rev. 2 - 2
www.diodes.com
© Diodes Incorporated
