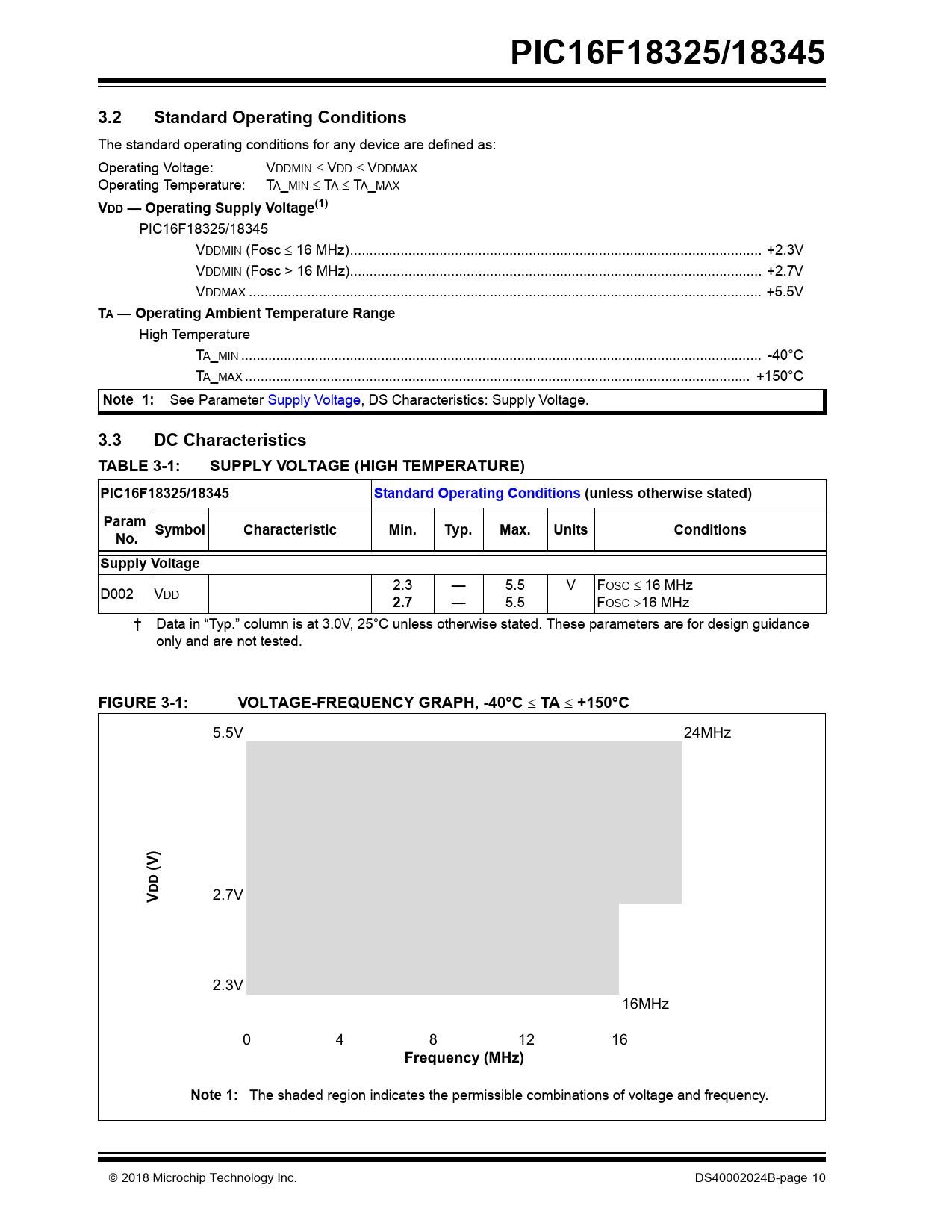

PIC16F18325/18345 3.2 Standard Operating Conditions
The standard operating conditions for any device are defined as: Operating Voltage: VDDMIN VDD VDDMAX Operating Temperature: TA_MIN TA TA_MAX
VDD — Operating Supply Voltage(1)
PIC16F18325/18345 VDDMIN (Fosc 16 MHz).. +2.3V VDDMIN (Fosc > 16 MHz).. +2.7V VDDMAX .. +5.5V
TA — Operating Ambient Temperature Range
High Temperature TA_MIN .. -40°C TA_MAX .. +150°C
Note 1:
See Parameter Supply Voltage, DS Characteristics: Supply Voltage.
3.3 DC Characteristics TABLE 3-1: SUPPLY VOLTAGE (HIGH TEMPERATURE) PIC16F18325/18345 Standard Operating Conditions (unless otherwise stated) Param Symbol Characteristic Min. Typ. Max. Units Conditions No. Supply Voltage
2.3 — 5.5 V F D002 V OSC 16 MHz DD
2.7
— 5.5 FOSC 16 MHz † Data in “Typ.” column is at 3.0V, 25°C unless otherwise stated. These parameters are for design guidance only and are not tested.
FIGURE 3-1: VOLTAGE-FREQUENCY GRAPH, -40°C
TA
+150°C
5.5V 24MHz
) (V
2.7V
VDD
2.3V 16MHz 0 4 8 12 16
Frequency (MHz) Note 1:
The shaded region indicates the permissible combinations of voltage and frequency. 2018 Microchip Technology Inc. DS40002024B-page 10 Document Outline PIC16F18325/18345 Family Types Table of Contents 1.0 Device Overview 2.0 Device/Revision ID Registers Register 2-1: DEVID: Device ID Register Register 2-2: REVID: Revision ID Register 2 3.0 Electrical Characteristics TABLE 3-1: Supply Voltage (High Temperature) FIGURE 3-1: Voltage-Frequency Graph, -40°C £ Ta £ +150°C TABLE 3-2: DC Characteristics: Supply Current (1,2) TABLE 3-3: DC Characteristics: Power-Down Currents (IPD)(1,2,3) TABLE 3-4: Internal Oscillator Parameters(1) FIGURE 3-2: Precision-Calibrated HFINTOSC Frequency Accuracy Over Device Vdd and Temperature TABLE 3-5: Reset, Watchdog Timer, Oscillator Start-up Timer, Power-up Timer, Brown-out Timer and Low-Power Brown-out Reset Specifications Appendix A: Revision History The Microchip WebSite Customer Change Notification Service Customer Support Product Identification System Trademarks Worldwide Sales
