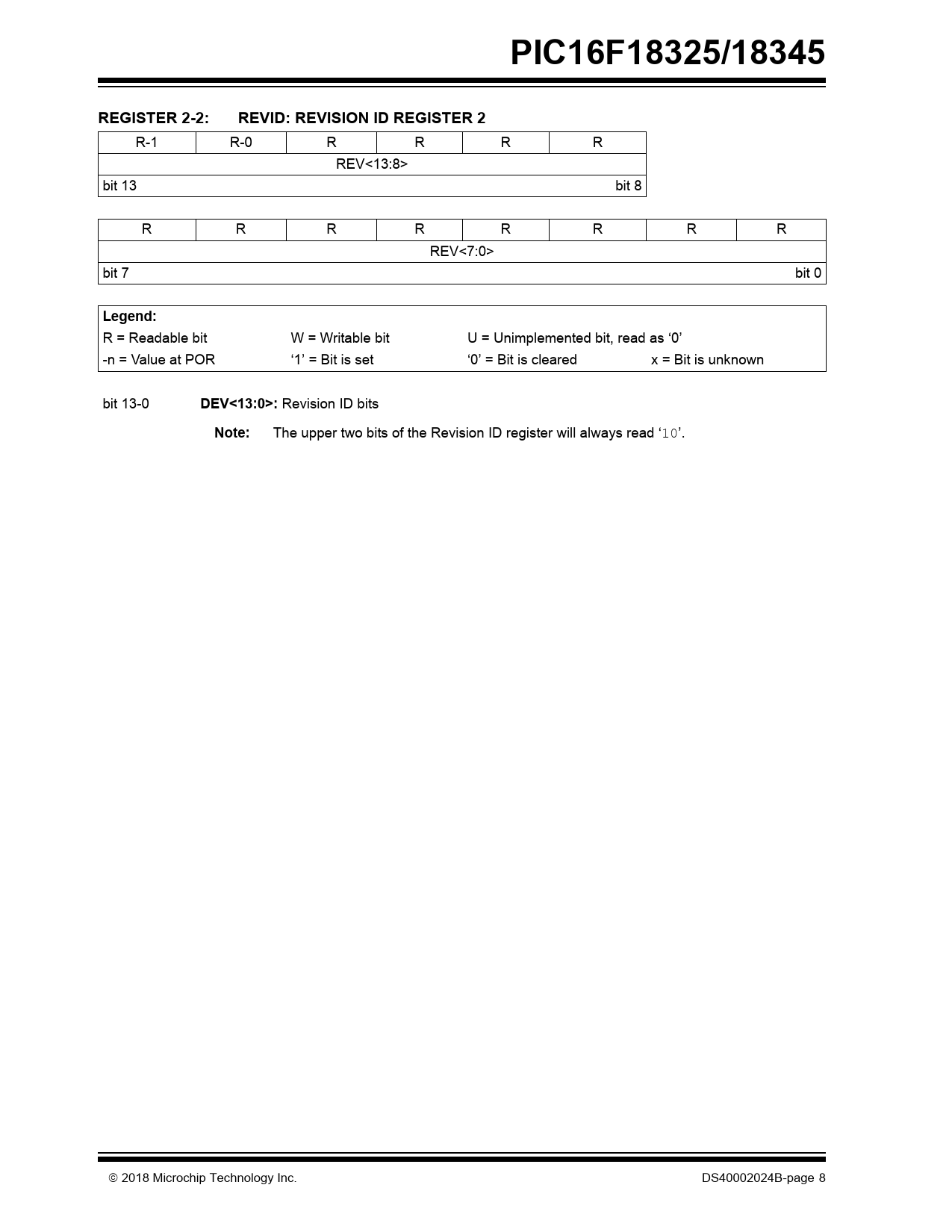

PIC16F18325/18345REGISTER 2-2:REVID: REVISION ID REGISTER 2 R-1 R-0 R R R R REV<13:8> bit 13 bit 8 R R R R R R R R REV<7:0> bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown bit 13-0 DEV<13:0>: Revision ID bits Note: The upper two bits of the Revision ID register will always read ‘10’. 2018 Microchip Technology Inc. DS40002024B-page 8 Document Outline PIC16F18325/18345 Family Types Table of Contents 1.0 Device Overview 2.0 Device/Revision ID Registers Register 2-1: DEVID: Device ID Register Register 2-2: REVID: Revision ID Register 2 3.0 Electrical Characteristics TABLE 3-1: Supply Voltage (High Temperature) FIGURE 3-1: Voltage-Frequency Graph, -40°C £ Ta £ +150°C TABLE 3-2: DC Characteristics: Supply Current (1,2) TABLE 3-3: DC Characteristics: Power-Down Currents (IPD)(1,2,3) TABLE 3-4: Internal Oscillator Parameters(1) FIGURE 3-2: Precision-Calibrated HFINTOSC Frequency Accuracy Over Device Vdd and Temperature TABLE 3-5: Reset, Watchdog Timer, Oscillator Start-up Timer, Power-up Timer, Brown-out Timer and Low-Power Brown-out Reset Specifications Appendix A: Revision History The Microchip WebSite Customer Change Notification Service Customer Support Product Identification System Trademarks Worldwide Sales
