Datasheet RFP30N06LE, RF1S30N06LESM (Fairchild)
| Fabricante | Fairchild |
| Descripción | 30A, 60V, ESD Rated, 0.047 Ohm, Logic Level N-Channel Power MOSFETs |
| Páginas / Página | 8 / 1 — RFP30N06LE, RF1S30N06LESM. Data Sheet. January 2004. 30A, 60V, ESD Rated, … |
| Formato / tamaño de archivo | PDF / 194 Kb |
| Idioma del documento | Inglés |
RFP30N06LE, RF1S30N06LESM. Data Sheet. January 2004. 30A, 60V, ESD Rated, 0.047 Ohm, Logic. Features
Línea de modelo para esta hoja de datos
Versión de texto del documento

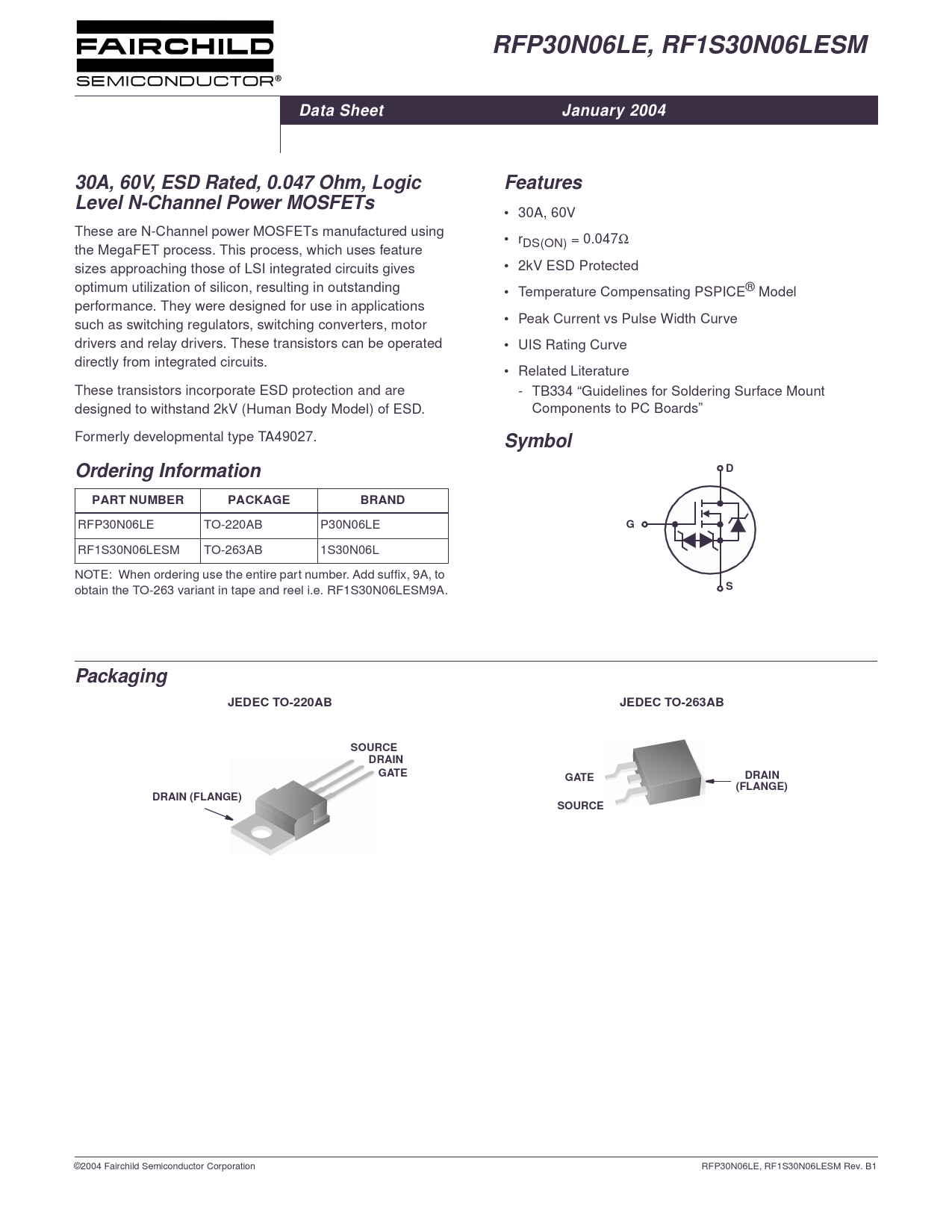

RFP30N06LE, RF1S30N06LESM Data Sheet January 2004 30A, 60V, ESD Rated, 0.047 Ohm, Logic Features Level N-Channel Power MOSFETs
• 30A, 60V These are N-Channel power MOSFETs manufactured using • rDS(ON) = 0.047Ω the MegaFET process. This process, which uses feature sizes approaching those of LSI integrated circuits gives • 2kV ESD Protected optimum utilization of silicon, resulting in outstanding • Temperature Compensating PSPICE® Model performance. They were designed for use in applications such as switching regulators, switching converters, motor • Peak Current vs Pulse Width Curve drivers and relay drivers. These transistors can be operated • UIS Rating Curve directly from integrated circuits. • Related Literature These transistors incorporate ESD protection and are - TB334 “Guidelines for Soldering Surface Mount designed to withstand 2kV (Human Body Model) of ESD. Components to PC Boards” Formerly developmental type TA49027.
Symbol Ordering Information D PART NUMBER PACKAGE BRAND
RFP30N06LE TO-220AB P30N06LE
G
RF1S30N06LESM TO-263AB 1S30N06L NOTE: When ordering use the entire part number. Add suffix, 9A, to obtain the TO-263 variant in tape and reel i.e. RF1S30N06LESM9A.
S Packaging JEDEC TO-220AB JEDEC TO-263AB SOURCE DRAIN GATE GATE DRAIN (FLANGE) DRAIN (FLANGE) SOURCE
©2004 Fairchild Semiconductor Corporation RFP30N06LE, RF1S30N06LESM Rev. B1
