Datasheet ADN2892 (Analog Devices) - 4

FabricanteAnalog Devices
Descripción3.3 V 4.25 Gb/s Limiting Amplifier
Páginas / Página16 / 4 — ADN2892. Data Sheet. Parameter. Min. Typ. Max. Unit. Test …
RevisiónC
Formato / tamaño de archivoPDF / 458 Kb
Idioma del documentoInglés

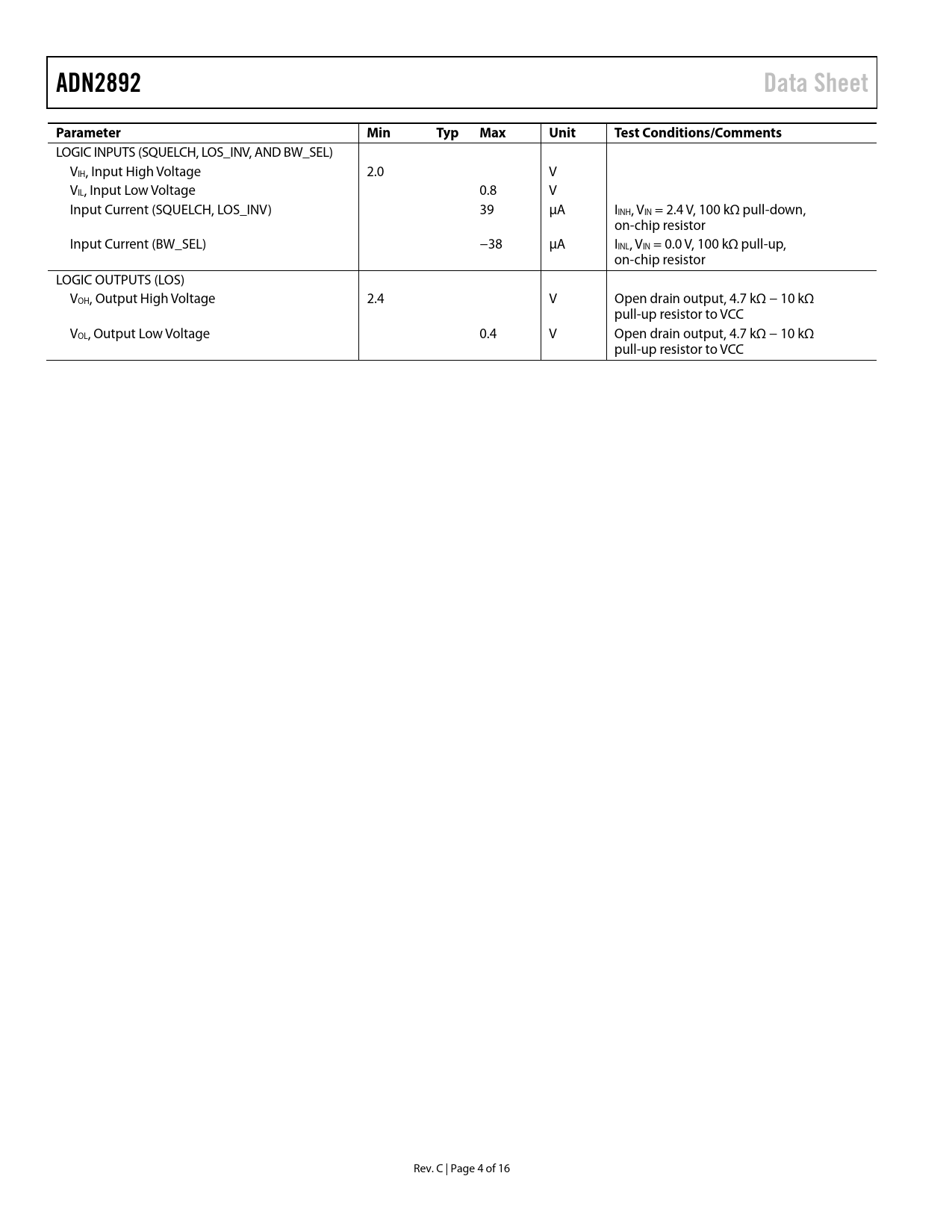

ADN2892. Data Sheet. Parameter. Min. Typ. Max. Unit. Test Conditions/Comments

ADN2892 Data Sheet Parameter Min Typ Max Unit Test Conditions/Comments

Línea de modelo para esta hoja de datos

Versión de texto del documento

ADN2892 Data Sheet Parameter Min Typ Max Unit Test Conditions/Comments
LOGIC INPUTS (SQUELCH, LOS_INV, AND BW_SEL) VIH, Input High Voltage 2.0 V VIL, Input Low Voltage 0.8 V Input Current (SQUELCH, LOS_INV) 39 µA IINH, VIN = 2.4 V, 100 kΩ pull-down, on-chip resistor Input Current (BW_SEL) −38 µA IINL, VIN = 0.0 V, 100 kΩ pull-up, on-chip resistor LOGIC OUTPUTS (LOS) VOH, Output High Voltage 2.4 V Open drain output, 4.7 kΩ − 10 kΩ pull-up resistor to VCC VOL, Output Low Voltage 0.4 V Open drain output, 4.7 kΩ − 10 kΩ pull-up resistor to VCC Rev. C | Page 4 of 16 Document Outline Features Applications General Description Functional Block Diagram Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Limiting Amplifier Input Buffer CML Output Buffer Loss-of-Signal (LOS) Detector Received Signal Strength Indicator (RSSI) Squelch Mode BW_SEL (Bandwidth Selection) Mode LOS_INV (Lose of Signal_Invert) Mode Applications Information PCB Design Guidelines Output Buffer Power Supply and Ground Planes PCB Layout Soldering Guidelines for the LFCSP Pad Coating and Pb-Free Soldering Outline Dimensions Ordering Guide
