Datasheet SDP8406 (Honeywell)
| Fabricante | Honeywell |
| Descripción | Silicon Phototransistor, Side-looking Clear Plastic Package |
| Páginas / Página | 4 / 1 — SDP8406 Silicon Phototransistor. FEATURES. DESCRIPTION. OUTLINE DIMENSIONS |
| Formato / tamaño de archivo | PDF / 469 Kb |
| Idioma del documento | Inglés |
SDP8406 Silicon Phototransistor. FEATURES. DESCRIPTION. OUTLINE DIMENSIONS
Línea de modelo para esta hoja de datos
Versión de texto del documento

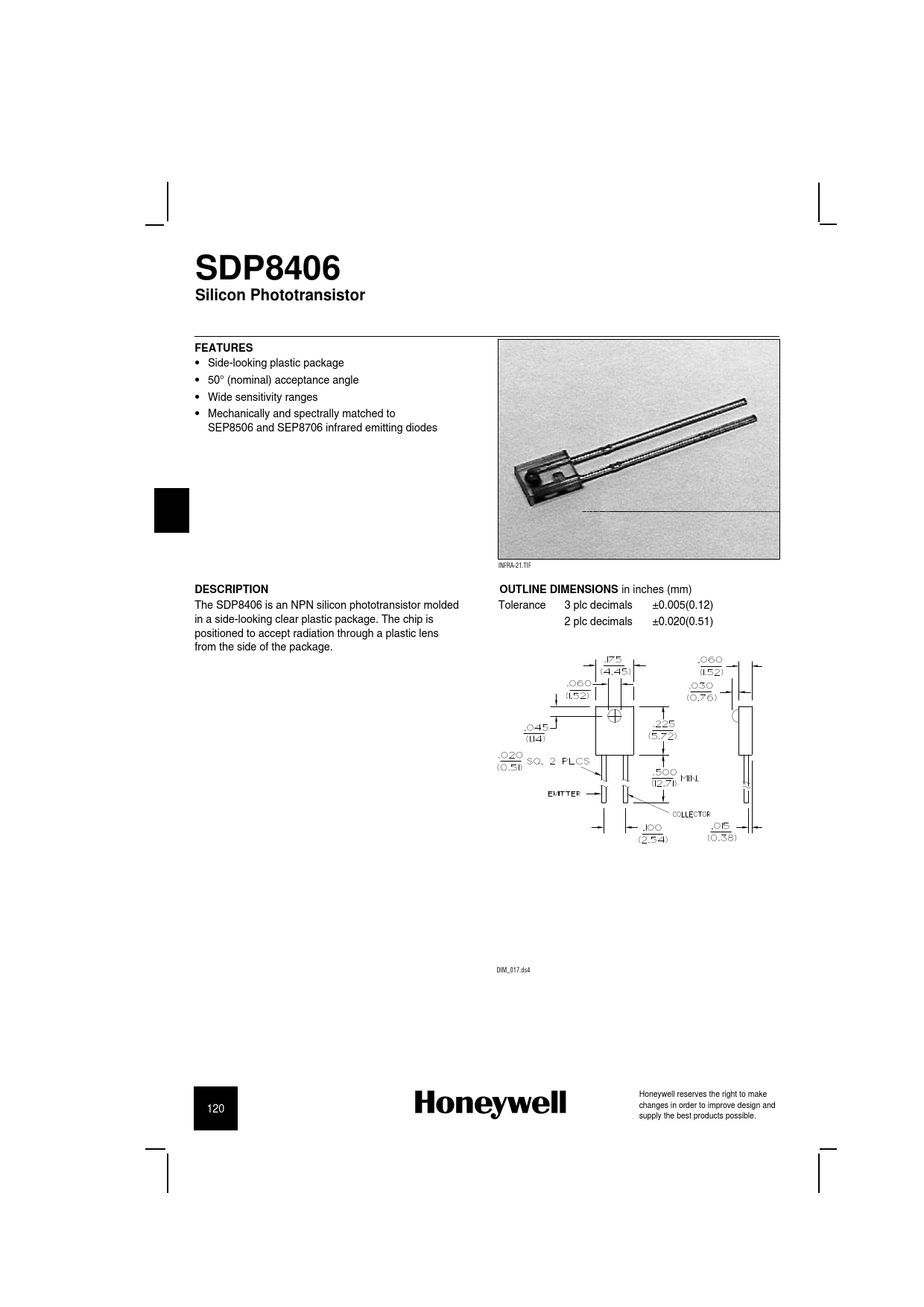

SDP8406 Silicon Phototransistor FEATURES
• Side-looking plastic package • 50¡ (nominal) acceptance angle • Wide sensitivity ranges • Mechanically and spectrally matched to SEP8506 and SEP8706 infrared emitting diodes INFRA-21.TIF
DESCRIPTION OUTLINE DIMENSIONS
in inches (mm) The SDP8406 is an NPN silicon phototransistor molded Tolerance 3 plc decimals ±0.005(0.12) in a side-looking clear plastic package. The chip is 2 plc decimals ±0.020(0.51) positioned to accept radiation through a plastic lens from the side of the package. DIM_017.ds4 Honeywell reserves the right to make changes in order to improve design and 120 h supply the best products possible.
• Side-looking plastic package • 50¡ (nominal) acceptance angle • Wide sensitivity ranges • Mechanically and spectrally matched to SEP8506 and SEP8706 infrared emitting diodes INFRA-21.TIF
DESCRIPTION OUTLINE DIMENSIONS
in inches (mm) The SDP8406 is an NPN silicon phototransistor molded Tolerance 3 plc decimals ±0.005(0.12) in a side-looking clear plastic package. The chip is 2 plc decimals ±0.020(0.51) positioned to accept radiation through a plastic lens from the side of the package. DIM_017.ds4 Honeywell reserves the right to make changes in order to improve design and 120 h supply the best products possible.
