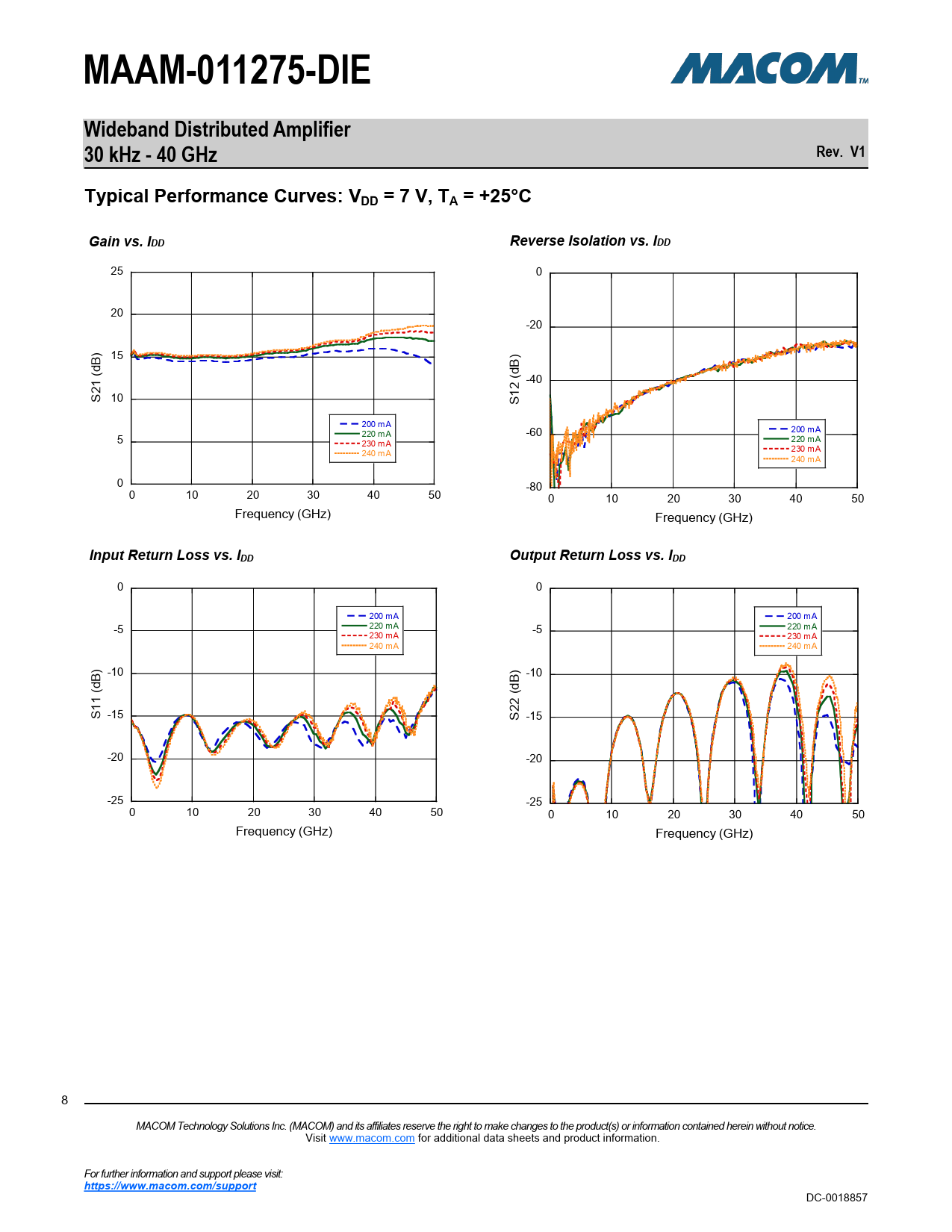

MAAM-011275-DIE. Wideband Distributed Amplifier. 30 kHz - 40 GHz. Rev. V1. Typical Performance Curves: VDD = 7 V, TA = +25°C
Línea de modelo para esta hoja de datos
Versión de texto del documento
MAAM-011275-DIE Wideband Distributed Amplifier 30 kHz - 40 GHz Rev. V1 Typical Performance Curves: VDD = 7 V, TA = +25°C Gain vs. IDD Reverse Isolation vs. IDD
25 0 20 -20 15 B) B) (d (d -40 21 S 10 12 S 200 mA -60 200 mA 5 220 mA 230 mA 220 mA 240 mA 230 mA 240 mA 0 -80 0 10 20 30 40 50 0 10 20 30 40 50 Frequency (GHz) Frequency (GHz)
Input Return Loss vs. IDD Output Return Loss vs. IDD
0 0 200 mA 200 mA -5 220 mA -5 220 mA 230 mA 230 mA 240 mA 240 mA -10 B) -10 B) (d (d 11 22 S -15 S -15 -20 -20 -25 -25 0 10 20 30 40 50 0 10 20 30 40 50 Frequency (GHz) Frequency (GHz) 8 MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice. Visit www.macom.com for additional data sheets and product information. For further information and support please visit:
