Datasheet MAAM-011275-DIE (MACOM)
| Fabricante | MACOM |
| Descripción | Wideband Distributed Amplifier |
| Páginas / Página | 10 / 1 — MAAM-011275-DIE. Wideband Distributed Amplifier. 30 kHz - 40 GHz. Rev. … |
| Formato / tamaño de archivo | PDF / 1.1 Mb |
| Idioma del documento | Inglés |

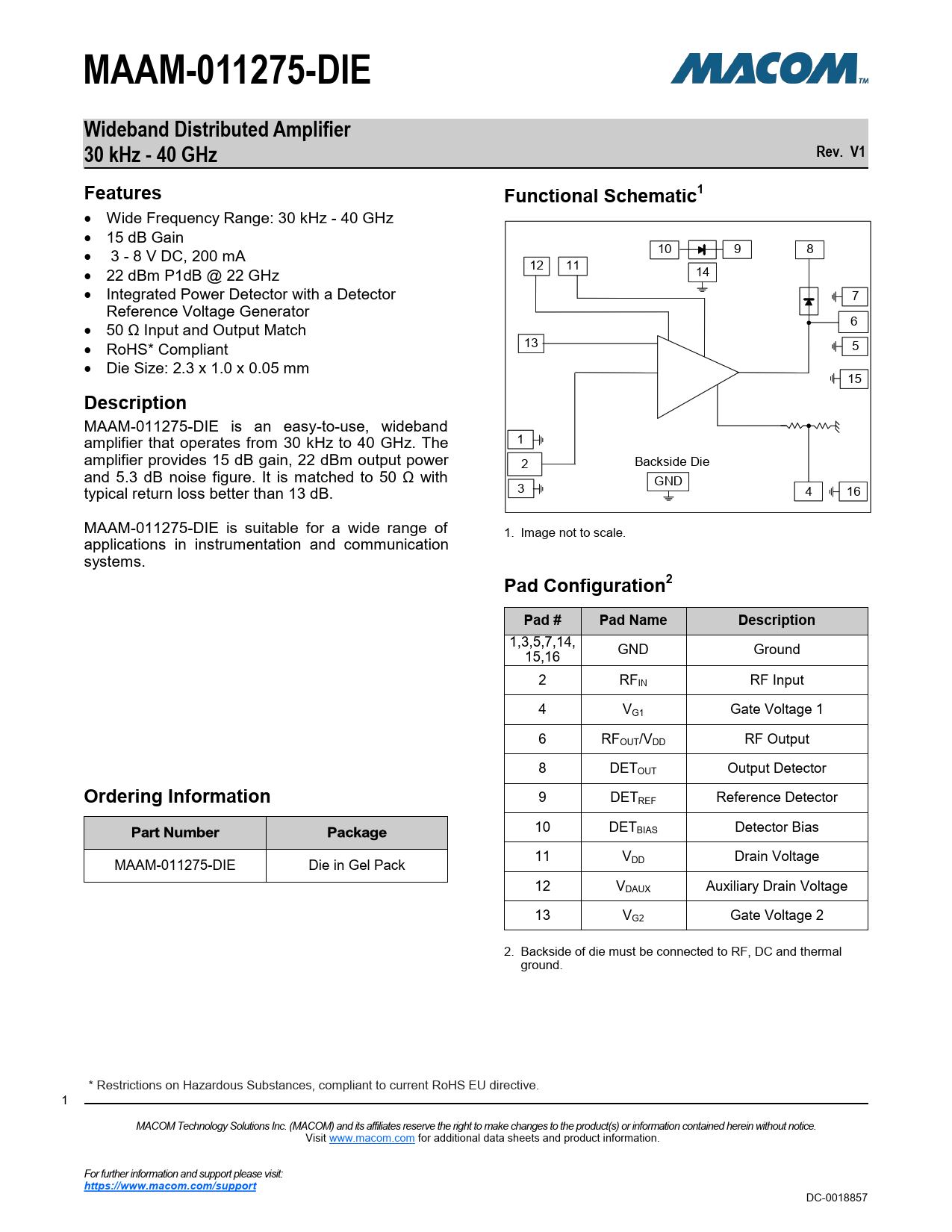

MAAM-011275-DIE. Wideband Distributed Amplifier. 30 kHz - 40 GHz. Rev. V1. Features. Functional Schematic1. Description
Línea de modelo para esta hoja de datos
Versión de texto del documento
MAAM-011275-DIE Wideband Distributed Amplifier 30 kHz - 40 GHz Rev. V1 Features Functional Schematic1
Wide Frequency Range: 30 kHz - 40 GHz 15 dB Gain 3 - 8 V DC, 200 mA 10 9 8 12 11 22 dBm P1dB @ 22 GHz 14 Integrated Power Detector with a Detector 7 Reference Voltage Generator 6 50 Ω Input and Output Match RoHS* Compliant 13 5 Die Size: 2.3 x 1.0 x 0.05 mm 15
Description
MAAM-011275-DIE is an easy-to-use, wideband amplifier that operates from 30 kHz to 40 GHz. The 1 amplifier provides 15 dB gain, 22 dBm output power 2 Backside Die and 5.3 dB noise figure. It is matched to 50 Ω with GND typical return loss better than 13 dB. 3 4 16 MAAM-011275-DIE is suitable for a wide range of 1. Image not to scale. applications in instrumentation and communication systems.
Pad Configuration2 Pad # Pad Name Description
1,3,5,7,14, 15,16 GND Ground 2 RFIN RF Input 4 VG1 Gate Voltage 1 6 RFOUT/VDD RF Output 8 DETOUT Output Detector
Ordering Information
9 DETREF Reference Detector 10 DETBIAS Detector Bias 11 V MAAM-011275-DIE Die in Gel Pack DD Drain Voltage 12 VDAUX Auxiliary Drain Voltage 13 VG2 Gate Voltage 2 2. Backside of die must be connected to RF, DC and thermal ground. * Restrictions on Hazardous Substances, compliant to current RoHS EU directive. 1 MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice. Visit www.macom.com for additional data sheets and product information. For further information and support please visit:
https://www.macom.com/support
DC-0018857
