Datasheet LTM2173-14 (Analog Devices) - 9
| Fabricante | Analog Devices |
| Descripción | 14-Bit, 80Msps Low Power Quad ADC |
| Páginas / Página | 28 / 9 — TIMING DIAGRAMS. 1-Lane Output Mode, 14-Bit Serialization. 1-Lane Output … |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 414 Kb |
| Idioma del documento | Inglés |
TIMING DIAGRAMS. 1-Lane Output Mode, 14-Bit Serialization. 1-Lane Output Mode, 12-Bit Serialization
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTM2173-14

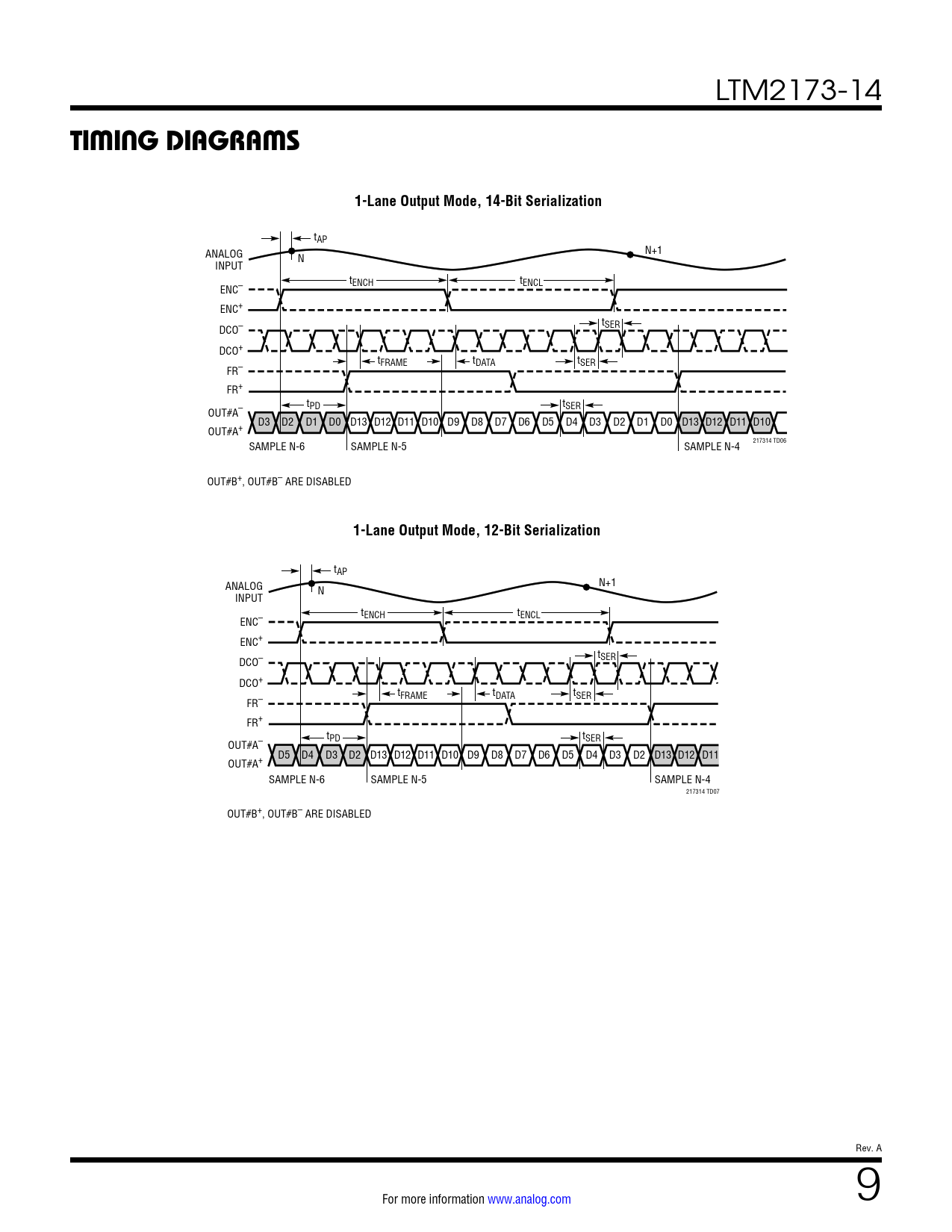

TIMING DIAGRAMS 1-Lane Output Mode, 14-Bit Serialization
tAP ANALOG N+1 N INPUT tENCH tENCL ENC– ENC+ t DCO– SER DCO+ tFRAME tDATA tSER FR– FR+ tPD tSER OUT#A– D3 D2 D1 D0 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 D13 D12 D11 D10 OUT#A+ SAMPLE N-6 SAMPLE N-5 SAMPLE N-4 217314 TD06 OUT#B+, OUT#B– ARE DISABLED
1-Lane Output Mode, 12-Bit Serialization
tAP ANALOG N+1 N INPUT tENCH tENCL ENC– ENC+ t DCO– SER DCO+ tFRAME tDATA tSER FR– FR+ tPD tSER OUT#A– D5 D4 D3 D2 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D13 D12 D11 OUT#A+ SAMPLE N-6 SAMPLE N-5 SAMPLE N-4 217314 TD07 OUT#B+, OUT#B– ARE DISABLED Rev. A For more information www.analog.com 9 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Converter Characteristics Analog Input Dynamic Accuracy Internal Reference Characteristics Digital Inputs And Outputs Power Requirements Timing Characteristics Timing Diagrams Pin Functions Pin Configuration Table Functional Block Diagram Applications Information Package Description Related Parts Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Converter Characteristics Analog Input Dynamic Accuracy Internal Reference Characteristics Digital Inputs And Outputs Power Requirements Timing Characteristics Timing Diagrams Typical Performance Characteristics Pin Functions Pin Configuration Table Functional Block Diagram Applications Information Converter Operation Analog Input Input Drive Circuits Digital Outputs Data Format Device Programming Modes Grounding and Bypassing Heat Transfer Package Description Revision History Typical Application Related Parts
