Datasheet LTM2173-14 (Analog Devices) - 8
| Fabricante | Analog Devices |
| Descripción | 14-Bit, 80Msps Low Power Quad ADC |
| Páginas / Página | 28 / 8 — TIMING DIAGRAMS. 2-Lane Output Mode, 12-Bit Serialization. 1-Lane Output … |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 414 Kb |
| Idioma del documento | Inglés |

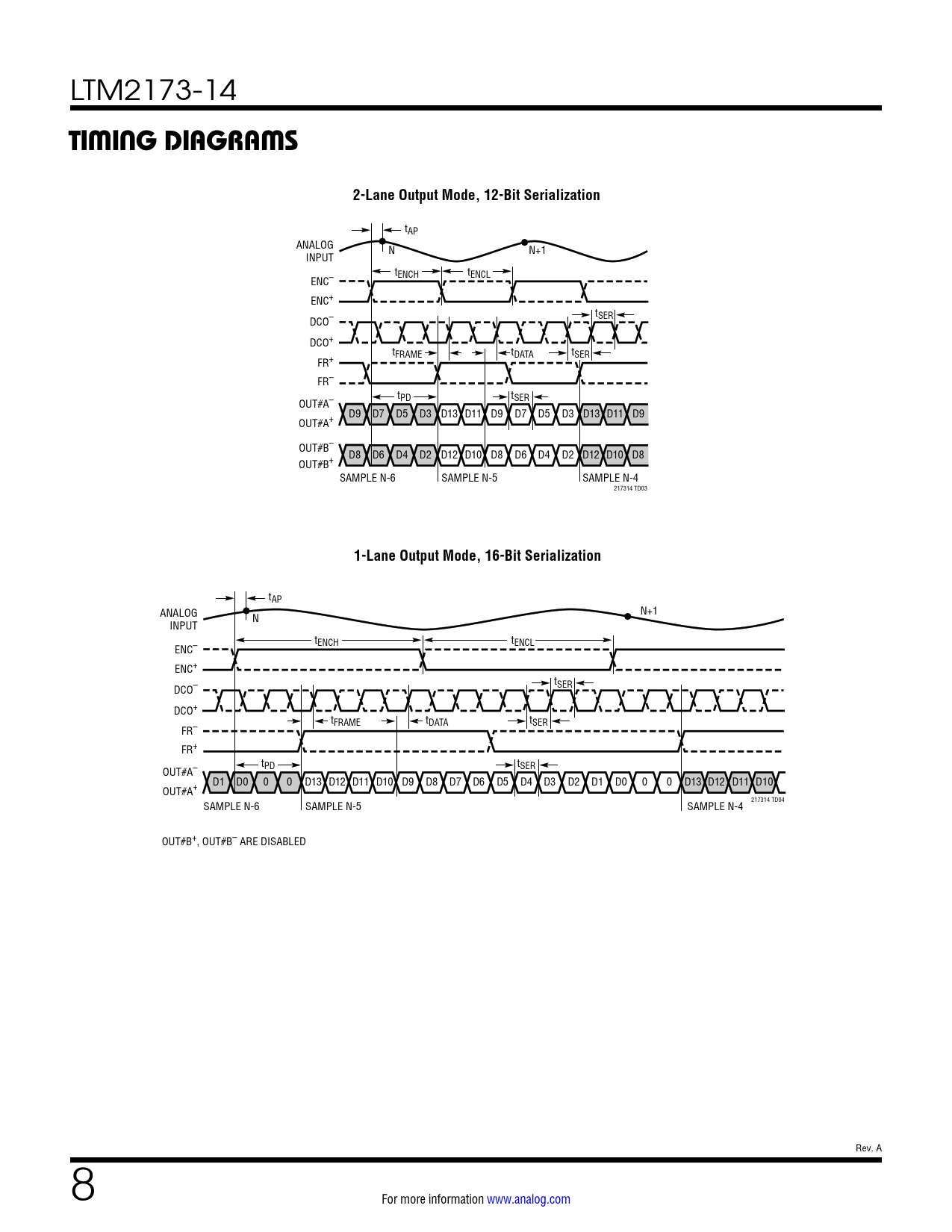

TIMING DIAGRAMS. 2-Lane Output Mode, 12-Bit Serialization. 1-Lane Output Mode, 16-Bit Serialization
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTM2173-14
TIMING DIAGRAMS 2-Lane Output Mode, 12-Bit Serialization
tAP ANALOG N N+1 INPUT tENCH tENCL ENC– ENC+ t DCO– SER DCO+ tFRAME tDATA tSER FR+ FR– tPD tSER OUT#A– D9 D7 D5 D3 D13 D11 D9 D7 D5 D3 D13 D11 D9 OUT#A+ OUT#B– D8 D6 D4 D2 D12 D10 D8 D6 D4 D2 D12 D10 D8 OUT#B+ SAMPLE N-6 SAMPLE N-5 SAMPLE N-4 217314 TD03
