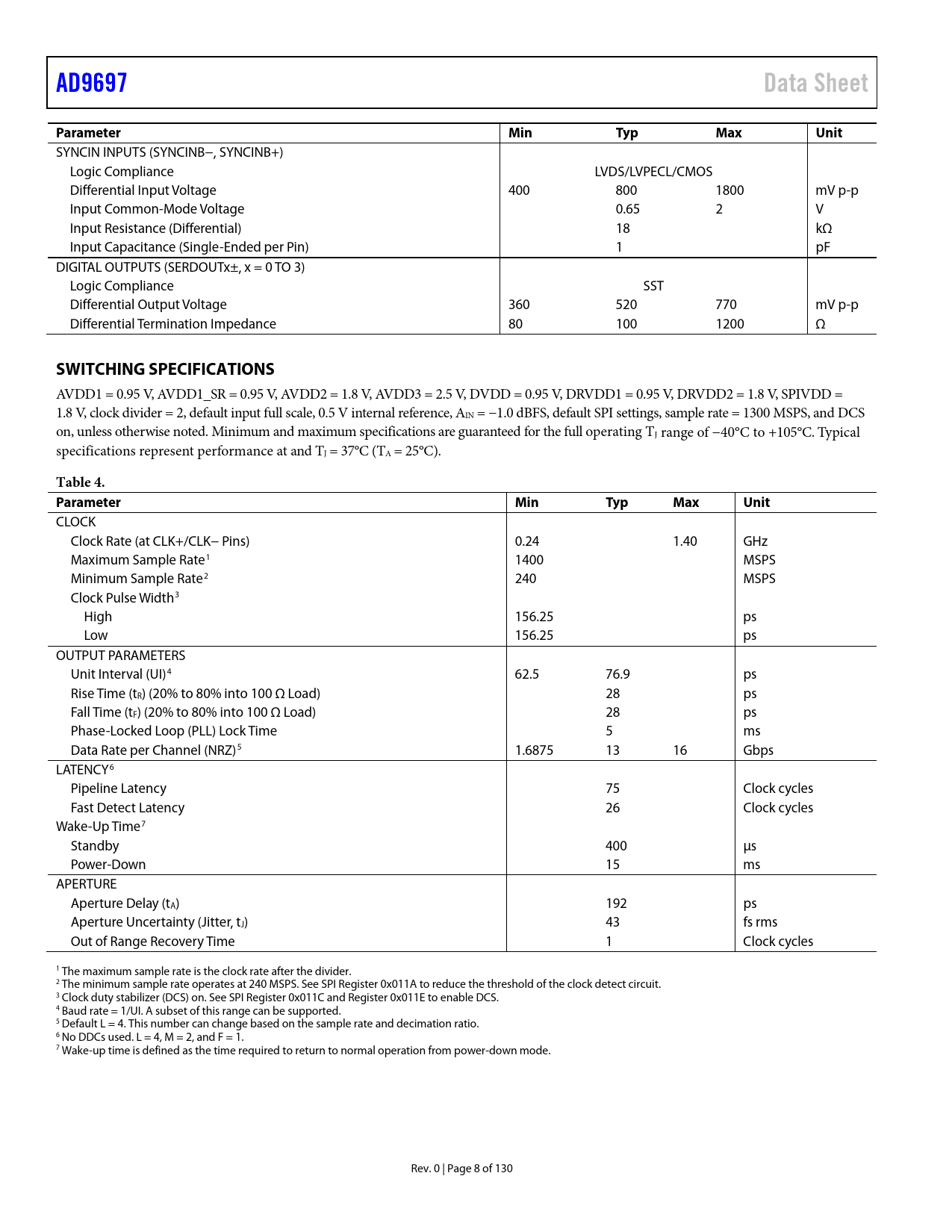

AD9697 Data Sheet Parameter Min Typ Max Unit
SYNCIN INPUTS (SYNCINB−, SYNCINB+) Logic Compliance LVDS/LVPECL/CMOS Differential Input Voltage 400 800 1800 mV p-p Input Common-Mode Voltage 0.65 2 V Input Resistance (Differential) 18 kΩ Input Capacitance (Single-Ended per Pin) 1 pF DIGITAL OUTPUTS (SERDOUTx±, x = 0 TO 3) Logic Compliance SST Differential Output Voltage 360 520 770 mV p-p Differential Termination Impedance 80 100 1200 Ω
SWITCHING SPECIFICATIONS
AVDD1 = 0.95 V, AVDD1_SR = 0.95 V, AVDD2 = 1.8 V, AVDD3 = 2.5 V, DVDD = 0.95 V, DRVDD1 = 0.95 V, DRVDD2 = 1.8 V, SPIVDD = 1.8 V, clock divider = 2, default input full scale, 0.5 V internal reference, AIN = −1.0 dBFS, default SPI settings, sample rate = 1300 MSPS, and DCS on, unless otherwise noted. Minimum and maximum specifications are guaranteed for the full operating TJ range of −40°C to +105°C. Typical specifications represent performance at and TJ = 37°C (TA = 25°C).
Table 4. Parameter Min Typ Max Unit
CLOCK Clock Rate (at CLK+/CLK− Pins) 0.24 1.40 GHz Maximum Sample Rate1 1400 MSPS Minimum Sample Rate2 240 MSPS Clock Pulse Width3 High 156.25 ps Low 156.25 ps OUTPUT PARAMETERS Unit Interval (UI)4 62.5 76.9 ps Rise Time (tR) (20% to 80% into 100 Ω Load) 28 ps Fall Time (tF) (20% to 80% into 100 Ω Load) 28 ps Phase-Locked Loop (PLL) Lock Time 5 ms Data Rate per Channel (NRZ)5 1.6875 13 16 Gbps LATENCY6 Pipeline Latency 75 Clock cycles Fast Detect Latency 26 Clock cycles Wake-Up Time7 Standby 400 µs Power-Down 15 ms APERTURE Aperture Delay (tA) 192 ps Aperture Uncertainty (Jitter, tJ) 43 fs rms Out of Range Recovery Time 1 Clock cycles 1 The maximum sample rate is the clock rate after the divider. 2 The minimum sample rate operates at 240 MSPS. See SPI Register 0x011A to reduce the threshold of the clock detect circuit. 3 Clock duty stabilizer (DCS) on. See SPI Register 0x011C and Register 0x011E to enable DCS. 4 Baud rate = 1/UI. A subset of this range can be supported. 5 Default L = 4. This number can change based on the sample rate and decimation ratio. 6 No DDCs used. L = 4, M = 2, and F = 1. 7 Wake-up time is defined as the time required to return to normal operation from power-down mode. Rev. 0 | Page 8 of 130 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY GENERAL DESCRIPTION PRODUCT HIGHLIGHTS SPECIFICATIONS DC SPECIFICATIONS AC SPECIFICATIONS DIGITAL SPECIFICATIONS SWITCHING SPECIFICATIONS TIMING SPECIFICATIONS Timing Diagrams ABSOLUTE MAXIMUM RATINGS THERMAL CHARACTERISTICS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS EQUIVALENT CIRCUITS THEORY OF OPERATION ADC ARCHITECTURE ANALOG INPUT CONSIDERATIONS Differential Input Configurations Input Common Mode Analog Input Buffer Controls and SFDR Optimization Absolute Maximum Input Swing Dither VOLTAGE REFERENCE DC OFFSET CALIBRATION CLOCK INPUT CONSIDERATIONS Clock Duty Cycle Considerations Input Clock Divider Input Clock Divider ½ Period Delay Adjust Clock Fine Delay and Superfine Delay Adjust Clock Coupling Considerations Clock Jitter Considerations POWER-DOWN/STANDBY MODE TEMPERATURE DIODE ADC OVERRANGE AND FAST DETECT ADC OVERRANGE FAST THRESHOLD DETECTION (FD) ADC APPLICATION MODES AND JESD204B Tx CONVERTER MAPPING PROGRAMMABLE FINITE IMPULSE RESPONSE (FIR) FILTERS SUPPORTED MODES PROGRAMMING INSTRUCTIONS DIGITAL DOWNCONVERTER (DDC) DDC I/Q OUTPUT SELECTION DDC GENERAL DESCRIPTION Frequency Translation Stage (Optional) Filtering Stage Gain Stage (Optional) Complex to Real Conversion Stage (Optional) DDC FREQUENCY TRANSLATION DDC Frequency Translation General Description Variable IF Mode 0 Hz IF (ZIF) Mode fS/4 Hz IF Mode Test Mode DDC NCO Description DDC NCO Programmable Modulus Mode DDC NCO Coherent Mode NCO FTW/POW/MAW/MAB Description NCO FTW/POW/MAW/MAB Programmable Modulus Mode NCO FTW/POW/MAW/MAB Coherent Mode NCO Channel Selection GPIO Level Control Mode GPIO Edge Control Mode Register Map Mode Setting Up the Multichannel NCO Feature NCO Synchronization NCO Multichip Synchronization NCO Multichip Synchronization at Startup NCO Multichip Synchronization During Normal Operation DDC Mixer Description DDC NCO + Mixer Loss and SFDR DDC DECIMATION FILTERS HB4 Filter Description HB3 Filter Description HB2 Filter Description HB1 Filter Description TB2 Filter Description TB1 Filter Description FB2 Filter Description DDC GAIN STAGE DDC COMPLEX TO REAL CONVERSION DDC MIXED DECIMATION SETTINGS DDC EXAMPLE CONFIGURATIONS SIGNAL MONITOR SPORT OVER JESD204B DIGITAL OUTPUTS INTRODUCTION TO THE JESD204B INTERFACE JESD204B OVERVIEW FUNCTIONAL OVERVIEW Transport Layer Data Link Layer Physical Layer JESD204B LINK ESTABLISHMENT Code Group Synchronization (CGS) Initial Lane Alignment Sequence (ILAS) User Data and Error Detection 8-Bit/10-Bit Encoder PHYSICAL LAYER (DRIVER) OUTPUTS Digital Outputs, Timing, and Controls De-Emphasis Phase-Locked Loop (PLL) SETTING UP THE AD9697 DIGITAL INTERFACE Example Setup 1—Full Bandwidth Mode Example Setup 2—ADC with DDC Option (Two ADCs Plus Two DDCs) DETERMINISTIC LATENCY SUBCLASS 0 OPERATION SUBCLASS 1 OPERATION Deterministic Latency Requirements Setting Deterministic Latency Registers MULTICHIP SYNCHRONIZATION NORMAL MODE TIMESTAMP MODE SYSREF± INPUT SYREF± Control Features SYSREF± SETUP/HOLD WINDOW MONITOR LATENCY END TO END TOTAL LATENCY EXAMPLE LATENCY CALCULATIONS LMFC REFERENCED LATENCY TEST MODES ADC TEST MODES JESD204B BLOCK TEST MODES Transport Layer Sample Test Mode Interface Test Modes Data Link Layer Test Modes SERIAL PORT INTERFACE (SPI) CONFIGURATION USING THE SPI HARDWARE INTERFACE SPI ACCESSIBLE FEATURES MEMORY MAP READING THE MEMORY MAP REGISTER TABLE Open and Reserved Locations Default Values Logic Levels SPI Soft Reset MEMORY MAP REGISTERS APPLICATIONS INFORMATION POWER SUPPLY RECOMMENDATIONS LAYOUT GUIDELINES AVDD1_SR (PIN 57) AND AGND_SR (PIN 56 AND PIN 60) OUTLINE DIMENSIONS ORDERING GUIDE
