Datasheet IRFF9120, JANTX2N6845, JANTXV2N6845 (International Rectifier) - 3
| Fabricante | International Rectifier |
| Descripción | 100V, P-CHANNEL MOSFET TO-205AF (TO-39) |
| Páginas / Página | 7 / 3 — IRFF9120. JANTX2N6845/JANTXV2N6845. Fig 1. Fig 2. Fig 3. Fig 4. Fig 5. … |
| Formato / tamaño de archivo | PDF / 905 Kb |
| Idioma del documento | Inglés |
IRFF9120. JANTX2N6845/JANTXV2N6845. Fig 1. Fig 2. Fig 3. Fig 4. Fig 5. Fig 6
Línea de modelo para esta hoja de datos
Versión de texto del documento

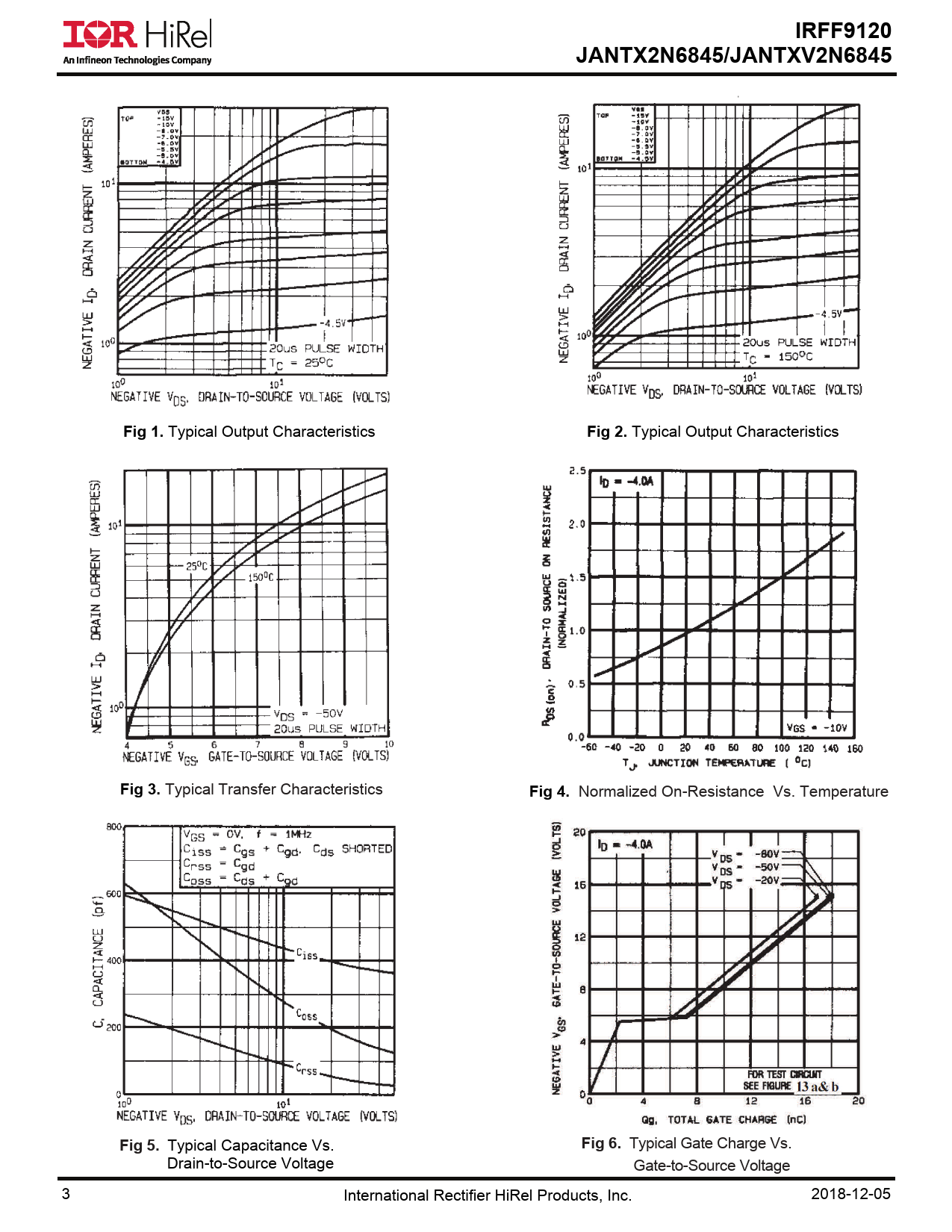

IRFF9120 JANTX2N6845/JANTXV2N6845 Fig 1.
Typical Output Characteristics
Fig 2.
Typical Output Characteristics
Fig 3.
Typical Transfer Characteristics
Fig 4.
Normalized On-Resistance Vs. Temperature
Fig 5.
Typical Capacitance Vs.
Fig 6.
Typical Gate Charge Vs. Drain-to-Source Voltage Gate-to-Source Voltage 3 International Rectifier HiRel Products, Inc. 2018-12-05
