Datasheet PN2907A, MMBT2907A, PZT2907A (ON Semiconductor) - 10
| Fabricante | ON Semiconductor |
| Descripción | 60 V PNP General-Purpose Transistor |
| Páginas / Página | 11 / 10 — PN290. Physical Dimensions. 7A / MMBT2907A / PZT2. 907A — 60. V PNP Gene. … |
| Revisión | 2 |
| Formato / tamaño de archivo | PDF / 883 Kb |
| Idioma del documento | Inglés |
PN290. Physical Dimensions. 7A / MMBT2907A / PZT2. 907A — 60. V PNP Gene. ra l-Pu. rpose T. ransistor
Línea de modelo para esta hoja de datos
Versión de texto del documento
PN290 Physical Dimensions
(Continued)
7A / MMBT2907A / PZT2
SOT-223

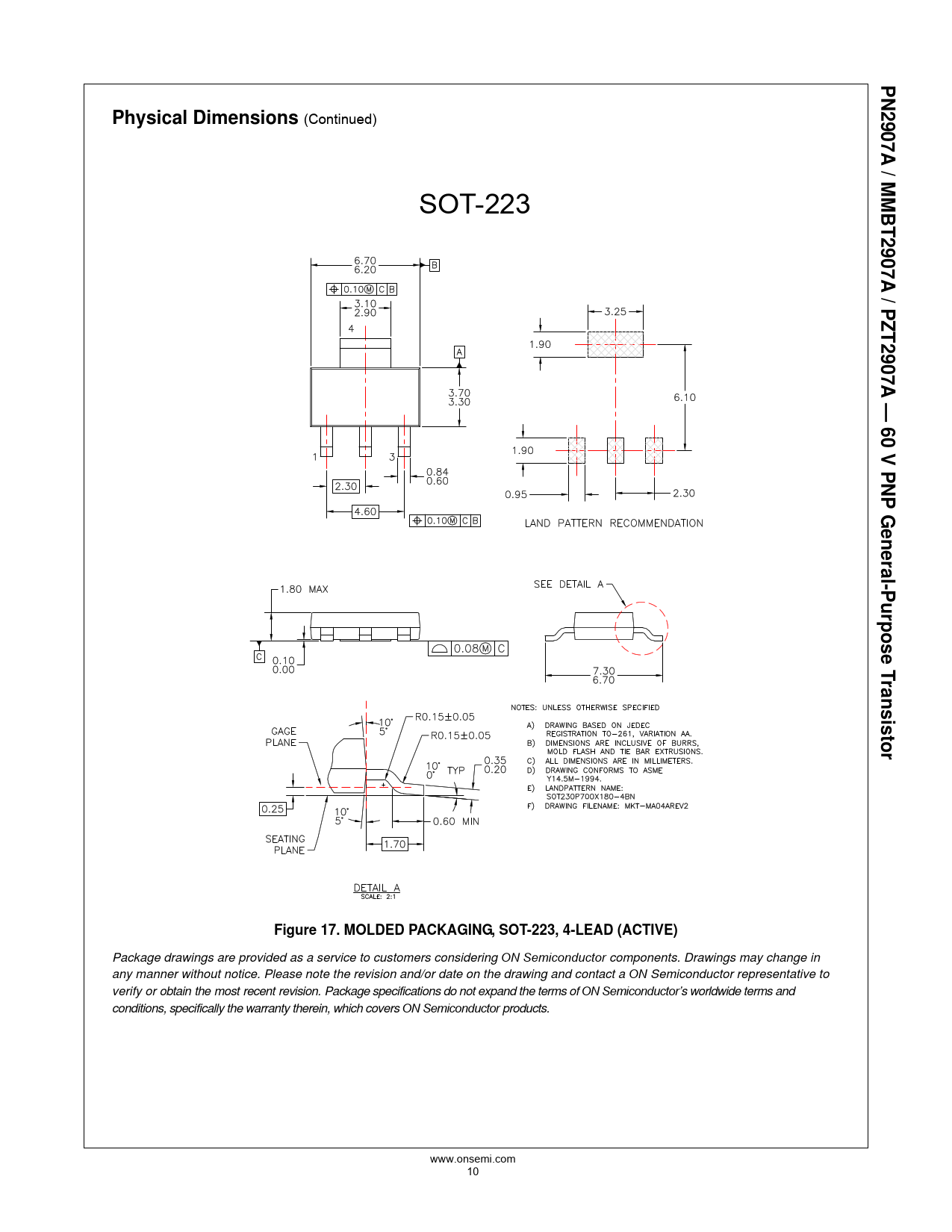

907A — 60 V PNP Gene ra l-Pu rpose T ransistor Figure 17. MOLDED PACKAGING, SOT-223, 4-LEAD (ACTIVE)
Package drawings are provided as a service to customers considering ON Semiconductor components. Drawings may change in any manner without notice. Please note the revision and/or date on the drawing and contact a ON Semiconductor representative to verify or obtain the most recent revision. Package specifications do not expand the terms of ON Semiconductor’s worldwide terms and conditions, specifically the warranty therein, which covers ON Semiconductor products. www.onsemi.com 10
