| Fabricante | ON Semiconductor |
| Descripción | 60 V PNP General-Purpose Transistor |
| Páginas / Página | 11 / 9 — PN290. Physical Dimensions. 7A / MMBT2907A / PZT2. 907A — 60. V PNP Gene. … |
| Revisión | 2 |
| Formato / tamaño de archivo | PDF / 883 Kb |
| Idioma del documento | Inglés |
PN290. Physical Dimensions. 7A / MMBT2907A / PZT2. 907A — 60. V PNP Gene. ra l-Pu. rpose T. ransistor
Línea de modelo para esta hoja de datos
Versión de texto del documento
PN290 Physical Dimensions
(Continued)
7A / MMBT2907A / PZT2
SOT-23 2.92±0.20 0.95 3 1.40 1.30+0.20 2.20
907A — 60
-0.15 1 2 (0.29) 0.60 0.37 0.95
V PNP Gene
0.20 A B 1.00 1.90 1.90 LAND PATTERN RECOMMENDATION 1.20 MAX SEE DETAIL A
ra l-Pu
(0.93) 0.10 0.00
rpose T
0.10 C C 2.40±0.30 NOTES: UNLESS OTHERWISE SPECIFIED GAGE PLANE
ransistor
A) REFERENCE JEDEC REGISTRATION TO-236, VARIATION AB, ISSUE H. B) ALL DIMENSIONS ARE IN MILLIMETERS. 0.23 0.08 C) DIMENSIONS ARE INCLUSIVE OF BURRS, 0.25 MOLD FLASH AND TIE BAR EXTRUSIONS. D) DIMENSIONING AND TOLERANCING PER ASME Y14.5M - 1994. 0.20 MIN SEATING E) DRAWING FILE NAME: MA03DREV10 (0.55) PLANE SCALE: 2X

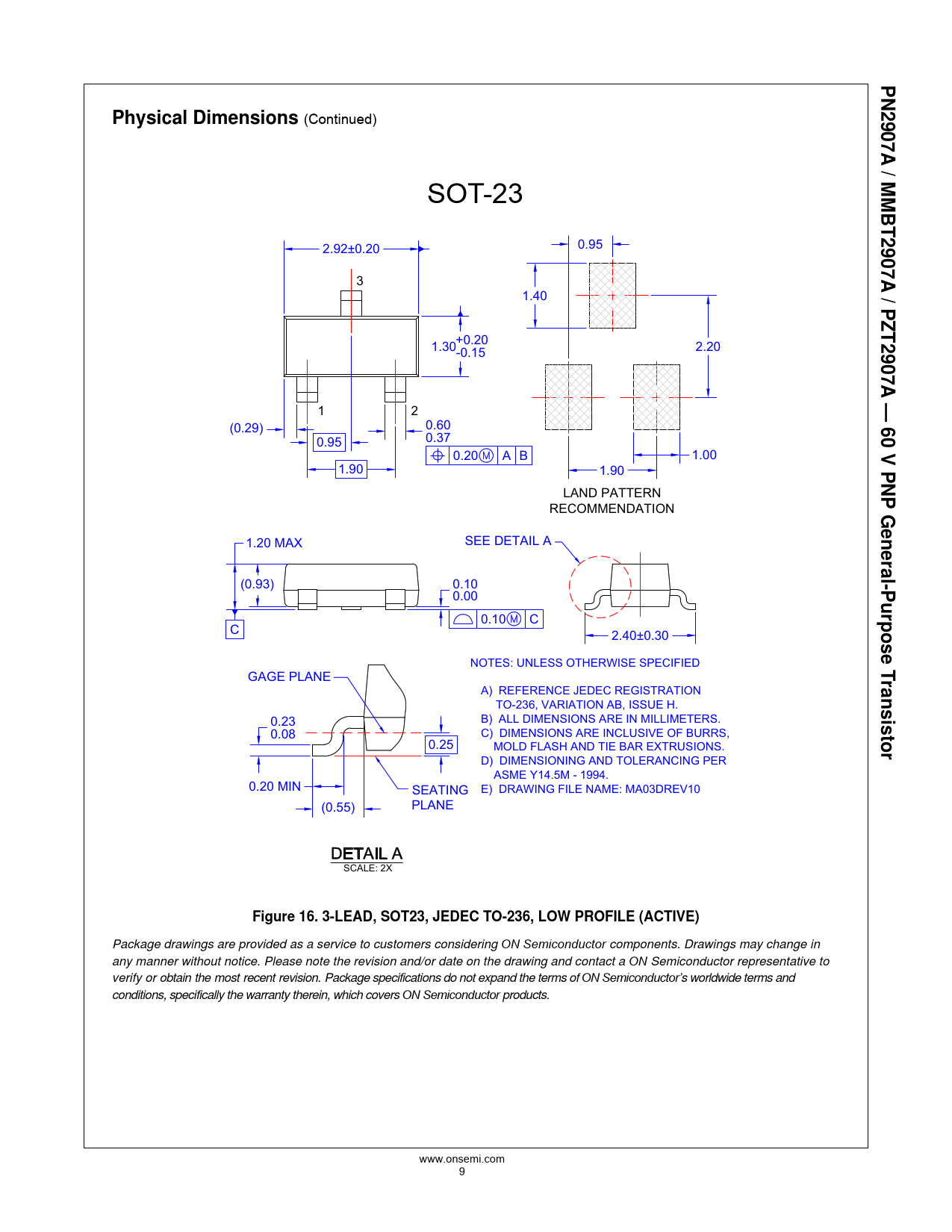

Figure 16. 3-LEAD, SOT23, JEDEC TO-236, LOW PROFILE (ACTIVE)
Package drawings are provided as a service to customers considering ON Semiconductor components. Drawings may change in any manner without notice. Please note the revision and/or date on the drawing and contact a ON Semiconductor representative to verify or obtain the most recent revision. Package specifications do not expand the terms of ON Semiconductor’s worldwide terms and conditions, specifically the warranty therein, which covers ON Semiconductor products. www.onsemi.com 9
