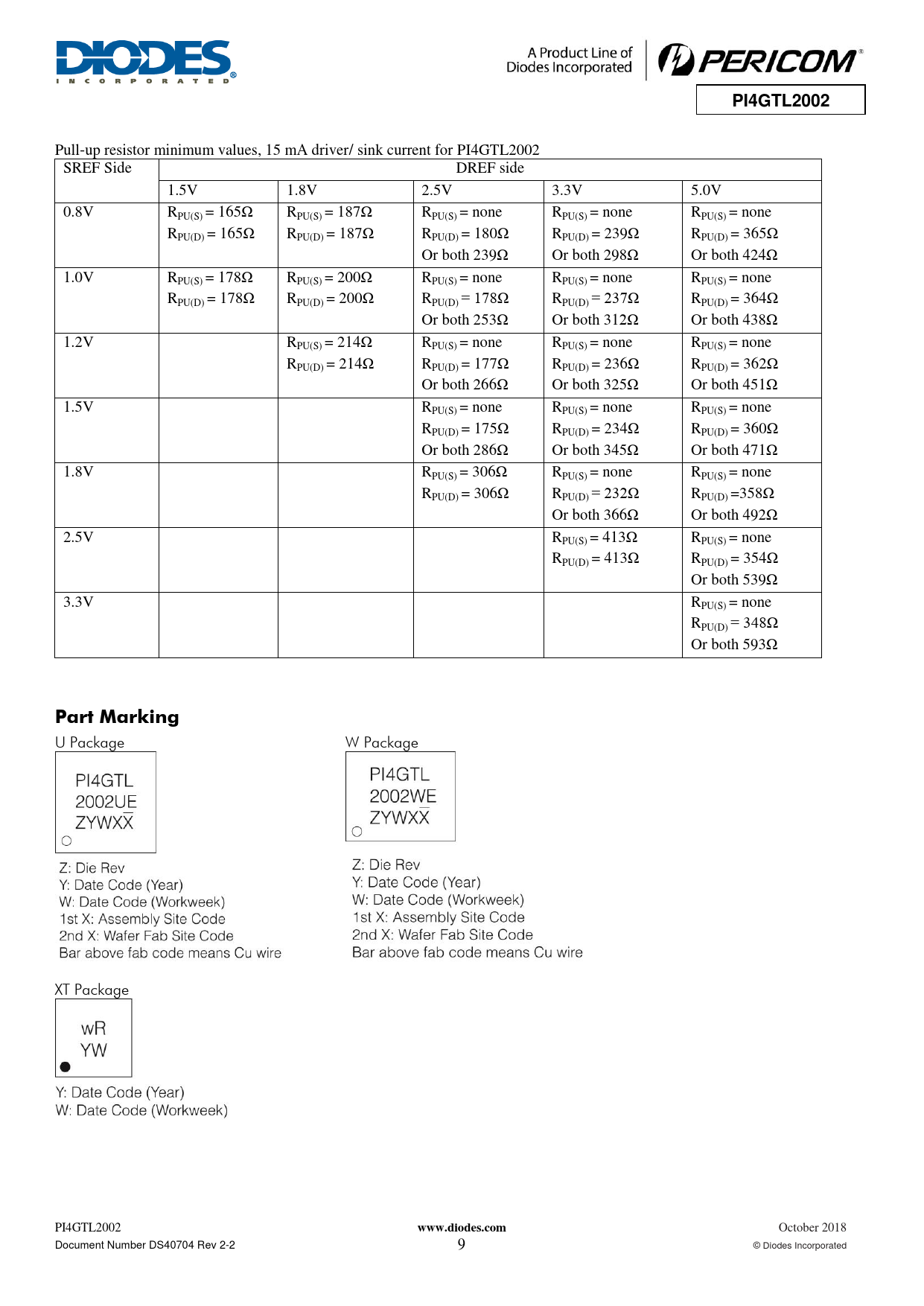

PI4GTL2002. Part Marking. www.diodes.com
Línea de modelo para esta hoja de datos
Versión de texto del documento
PI4GTL2002
Pull-up resistor minimum values, 15 mA driver/ sink current for PI4GTL2002 SREF Side DREF side 1.5V 1.8V 2.5V 3.3V 5.0V 0.8V RPU(S) = 165Ω RPU(S) = 187Ω RPU(S) = none RPU(S) = none RPU(S) = none RPU(D) = 165Ω RPU(D) = 187Ω RPU(D) = 180Ω RPU(D) = 239Ω RPU(D) = 365Ω Or both 239Ω Or both 298Ω Or both 424Ω 1.0V RPU(S) = 178Ω RPU(S) = 200Ω RPU(S) = none RPU(S) = none RPU(S) = none R = 178Ω = 237Ω PU(D) = 178Ω RPU(D) = 200Ω RPU(D) RPU(D) RPU(D) = 364Ω Or both 253Ω Or both 312Ω Or both 438Ω 1.2V RPU(S) = 214Ω RPU(S) = none RPU(S) = none RPU(S) = none RPU(D) = 214Ω RPU(D) = 177Ω RPU(D) = 236Ω RPU(D) = 362Ω Or both 266Ω Or both 325Ω Or both 451Ω 1.5V RPU(S) = none RPU(S) = none RPU(S) = none RPU(D) = 175Ω RPU(D) = 234Ω RPU(D) = 360Ω Or both 286Ω Or both 345Ω Or both 471Ω 1.8V RPU(S) = 306Ω RPU(S) = none RPU(S) = none R = 232Ω PU(D) = 306Ω RPU(D) RPU(D) =358Ω Or both 366Ω Or both 492Ω 2.5V RPU(S) = 413Ω RPU(S) = none RPU(D) = 413Ω RPU(D) = 354Ω Or both 539Ω 3.3V RPU(S) = none R = 348Ω PU(D) Or both 593Ω
Part Marking
U Package W Package XT Package PI4GTL2002
www.diodes.com
October 2018 Document Number DS40704 Rev 2-2 9 © Diodes Incorporated
