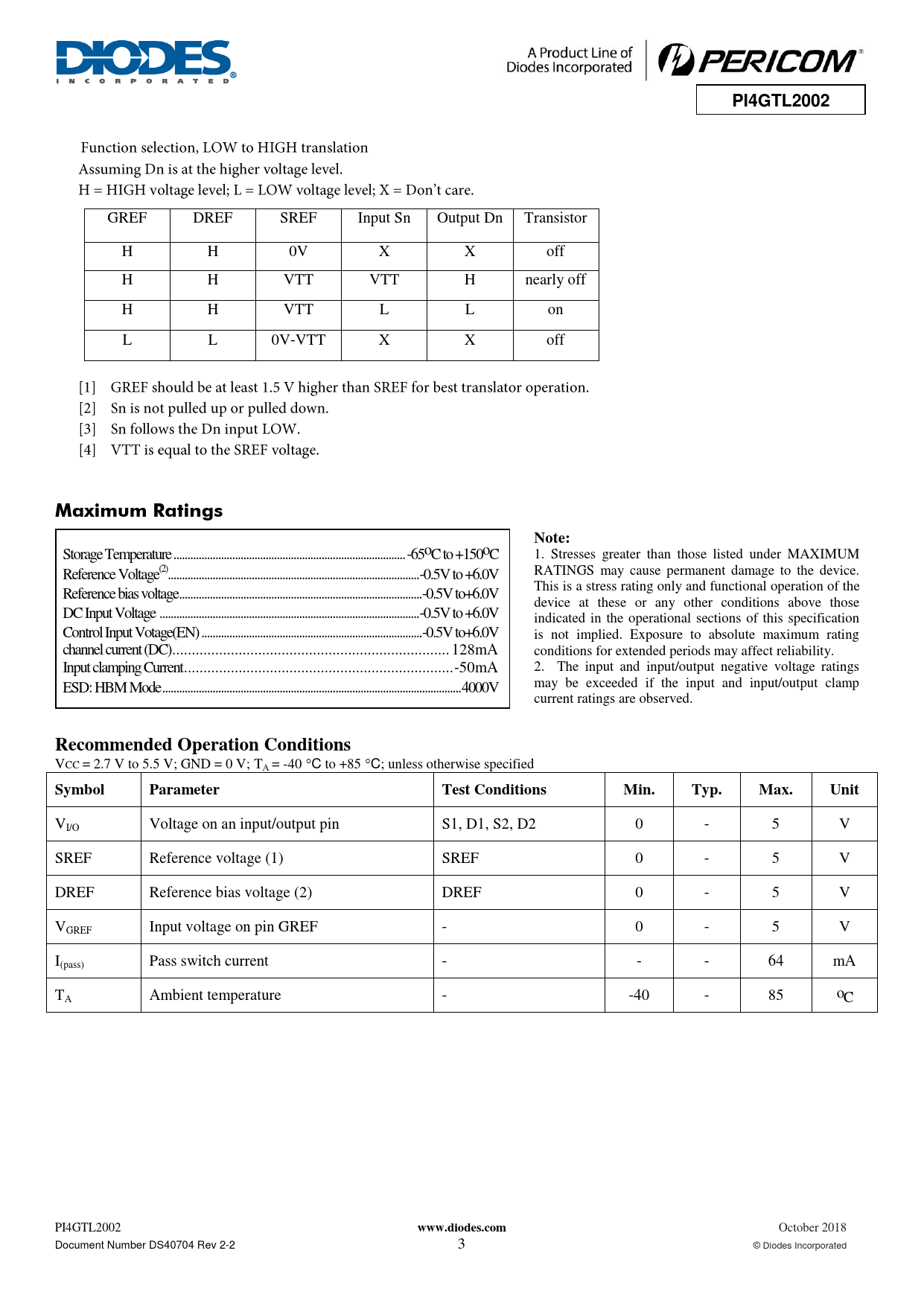

PI4GTL2002. Maximum Ratings. Note:. Recommended Operation Conditions. Symbol. Parameter. Test Conditions. Min. Typ. Max. Unit. www.diodes.com
Línea de modelo para esta hoja de datos
Versión de texto del documento
PI4GTL2002
GREF DREF SREF Input Sn Output Dn Transistor H H 0V X X off H H VTT VTT H nearly off H H VTT L L on L L 0V-VTT X X off
Maximum Ratings Note:
Storage Temperature ... -65oC to +150oC 1. Stresses greater than those listed under MAXIMUM Reference Voltage(2) .. -0.5V to +6.0V RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the Reference bias voltage ... -0.5V to+6.0V device at these or any other conditions above those DC Input Voltage ... -0.5V to +6.0V indicated in the operational sections of this specification Control Input Votage(EN) ... -0.5V to+6.0V is not implied. Exposure to absolute maximum rating channel current (DC) ... 128mA conditions for extended periods may affect reliability. Input clamping Current ... -50mA 2. The input and input/output negative voltage ratings ESD: HBM Mode ... 4000V may be exceeded if the input and input/output clamp current ratings are observed.
Recommended Operation Conditions
VCC = 2.7 V to 5.5 V; GND = 0 V; TA = -40 C to +85 C; unless otherwise specified
Symbol Parameter Test Conditions Min. Typ. Max. Unit
VI/O Voltage on an input/output pin S1, D1, S2, D2 0 - 5 V SREF Reference voltage (1) SREF 0 - 5 V DREF Reference bias voltage (2) DREF 0 - 5 V VGREF Input voltage on pin GREF - 0 - 5 V I(pass) Pass switch current - - - 64 mA TA Ambient temperature - -40 - 85 oC PI4GTL2002
