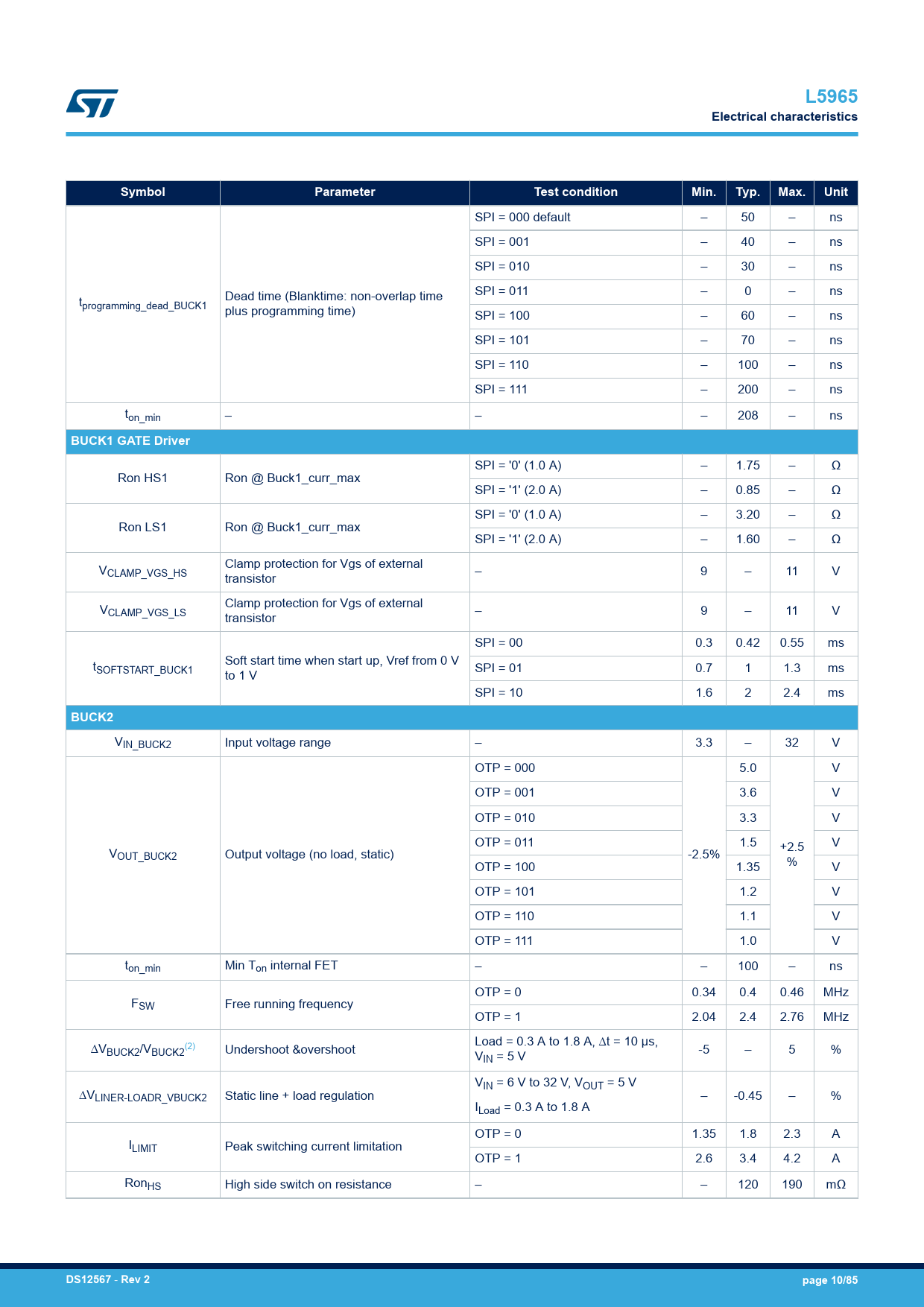

L5965 Electrical characteristics Symbol Parameter Test condition Min. Typ. Max. Unit
SPI = 000 default – 50 – ns SPI = 001 – 40 – ns SPI = 010 – 30 – ns SPI = 011 – 0 – ns t Dead time (Blanktime: non-overlap time programming_dead_BUCK1 plus programming time) SPI = 100 – 60 – ns SPI = 101 – 70 – ns SPI = 110 – 100 – ns SPI = 111 – 200 – ns ton_min – – – 208 – ns
BUCK1 GATE Driver
SPI = '0' (1.0 A) – 1.75 – Ω Ron HS1 Ron @ Buck1_curr_max SPI = '1' (2.0 A) – 0.85 – Ω SPI = '0' (1.0 A) – 3.20 – Ω Ron LS1 Ron @ Buck1_curr_max SPI = '1' (2.0 A) – 1.60 – Ω V Clamp protection for Vgs of external CLAMP_VGS_HS – 9 – 11 V transistor V Clamp protection for Vgs of external CLAMP_VGS_LS – 9 – 11 V transistor SPI = 00 0.3 0.42 0.55 ms t Soft start time when start up, Vref from 0 V SOFTSTART_BUCK1 SPI = 01 0.7 1 1.3 ms to 1 V SPI = 10 1.6 2 2.4 ms
BUCK2
VIN_BUCK2 Input voltage range – 3.3 – 32 V OTP = 000 5.0 V OTP = 001 3.6 V OTP = 010 3.3 V OTP = 011 1.5 V V +2.5 OUT_BUCK2 Output voltage (no load, static) -2.5% % OTP = 100 1.35 V OTP = 101 1.2 V OTP = 110 1.1 V OTP = 111 1.0 V ton_min Min Ton internal FET – – 100 – ns OTP = 0 0.34 0.4 0.46 MHz FSW Free running frequency OTP = 1 2.04 2.4 2.76 MHz Load = 0.3 A to 1.8 A, ∆t = 10 µs, ∆V (2) BUCK2/VBUCK2 Undershoot &overshoot VIN = 5 V -5 – 5 % VIN = 6 V to 32 V, VOUT = 5 V ∆VLINER-LOADR_VBUCK2 Static line + load regulation – -0.45 – % ILoad = 0.3 A to 1.8 A OTP = 0 1.35 1.8 2.3 A ILIMIT Peak switching current limitation OTP = 1 2.6 3.4 4.2 A RonHS High side switch on resistance – – 120 190 mΩ
