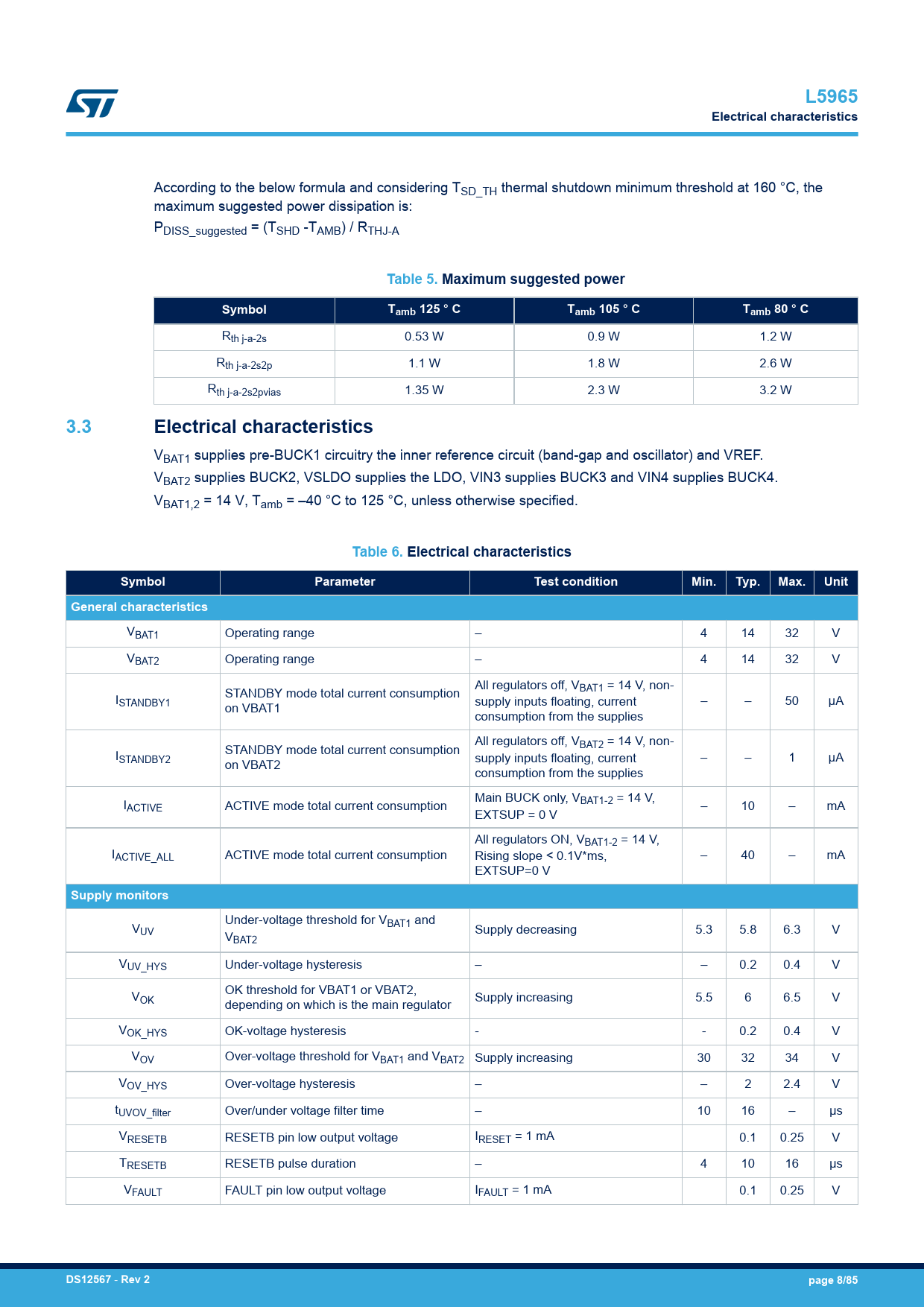

Datasheet L5965 (STMicroelectronics) - 8

L5965 Electrical characteristics
According to the below formula and considering TSD_TH thermal shutdown minimum threshold at 160 °C, the maximum suggested power dissipation is: PDISS_suggested = (TSHD -TAMB) / RTHJ-A
Table 5. Maximum suggested power Symbol Tamb 125 ° C Tamb 105 ° C Tamb 80 ° C
Rth j-a-2s 0.53 W 0.9 W 1.2 W Rth j-a-2s2p 1.1 W 1.8 W 2.6 W Rth j-a-2s2pvias 1.35 W 2.3 W 3.2 W
3.3 Electrical characteristics
VBAT1 supplies pre-BUCK1 circuitry the inner reference circuit (band-gap and oscillator) and VREF. VBAT2 supplies BUCK2, VSLDO supplies the LDO, VIN3 supplies BUCK3 and VIN4 supplies BUCK4. VBAT1,2 = 14 V, Tamb = –40 °C to 125 °C, unless otherwise specified.
Table 6. Electrical characteristics Symbol Parameter Test condition Min. Typ. Max. Unit General characteristics
VBAT1 Operating range – 4 14 32 V VBAT2 Operating range – 4 14 32 V All regulators off, VBAT1 = 14 V, non- I STANDBY mode total current consumption STANDBY1 – – 50 µA on VBAT1 supply inputs floating, current consumption from the supplies All regulators off, VBAT2 = 14 V, non- I STANDBY mode total current consumption STANDBY2 – – 1 µA on VBAT2 supply inputs floating, current consumption from the supplies Main BUCK only, V I BAT1-2 = 14 V, ACTIVE ACTIVE mode total current consumption – 10 – mA EXTSUP = 0 V All regulators ON, VBAT1-2 = 14 V, IACTIVE_ALL ACTIVE mode total current consumption Rising slope < 0.1V*ms, – 40 – mA EXTSUP=0 V
Supply monitors
Under-voltage threshold for V V BAT1 and UV Supply decreasing 5.3 5.8 6.3 V VBAT2 VUV_HYS Under-voltage hysteresis – – 0.2 0.4 V V OK threshold for VBAT1 or VBAT2, OK Supply increasing 5.5 6 6.5 V depending on which is the main regulator VOK_HYS OK-voltage hysteresis - - 0.2 0.4 V VOV Over-voltage threshold for VBAT1 and VBAT2 Supply increasing 30 32 34 V VOV_HYS Over-voltage hysteresis – – 2 2.4 V tUVOV_filter Over/under voltage filter time – 10 16 – µs VRESETB RESETB pin low output voltage IRESET = 1 mA 0.1 0.25 V TRESETB RESETB pulse duration – 4 10 16 µs VFAULT FAULT pin low output voltage IFAULT = 1 mA 0.1 0.25 V
DS12567
-
Rev 2 page 8/85
