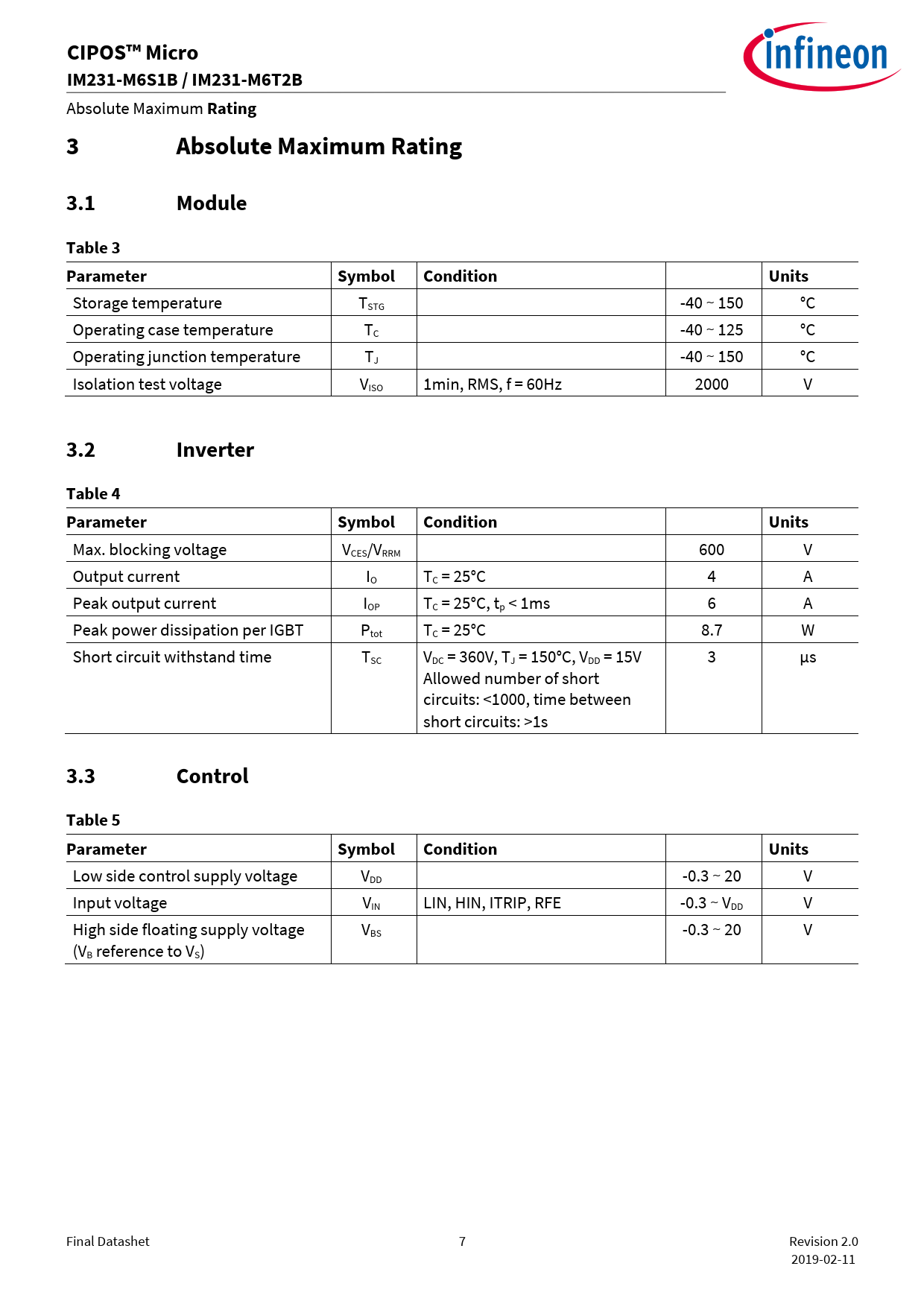

CIPOS™ Micro IM231-M6S1B / IM231-M6T2B
Absolute Maximum
Rating 3 Absolute Maximum Rating 3.1 Module Table 3 Parameter Symbol Condition Units
Storage temperature TSTG -40 ~ 150 °C Operating case temperature TC -40 ~ 125 °C Operating junction temperature TJ -40 ~ 150 °C Isolation test voltage VISO 1min, RMS, f = 60Hz 2000 V
3.2 Inverter Table 4 Parameter Symbol Condition Units
Max. blocking voltage VCES/VRRM 600 V Output current IO TC = 25°C 4 A Peak output current IOP TC = 25°C, tp < 1ms 6 A Peak power dissipation per IGBT Ptot TC = 25°C 8.7 W Short circuit withstand time TSC VDC = 360V, TJ = 150°C, VDD = 15V 3 μs Allowed number of short circuits: <1000, time between short circuits: >1s
3.3 Control Table 5 Parameter Symbol Condition Units
Low side control supply voltage VDD -0.3 ~ 20 V Input voltage VIN LIN, HIN, ITRIP, RFE -0.3 ~ VDD V High side floating supply voltage VBS -0.3 ~ 20 V (VB reference to VS) Final Datashet 7 Revision 2.0 2019-02-11 Document Outline Description Features Potential Applications Product validation Table 1 Part Ordering Table Table of contents 1 Internal Electrical Schematic 2 Pin Configuration 3 Absolute Maximum Rating 4 Thermal Characteristics 5 Recommended Operating Conditions 6 Static Parameters 7 Dynamic Parameters 8 Thermistor Characteristics 9 Mechanical Characteristics and Ratings 10 Qualification Information 11 Diagrams & Tables 12 Application Guide 13 Package Outline 14 Revision History Disclaimer
