Datasheet AD8354 (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | 1 MHz TO 2.7 GHz RF Gain Block |
| Páginas / Página | 16 / 6 — AD8354. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. COM1 1. … |
| Revisión | F |
| Formato / tamaño de archivo | PDF / 366 Kb |
| Idioma del documento | Inglés |

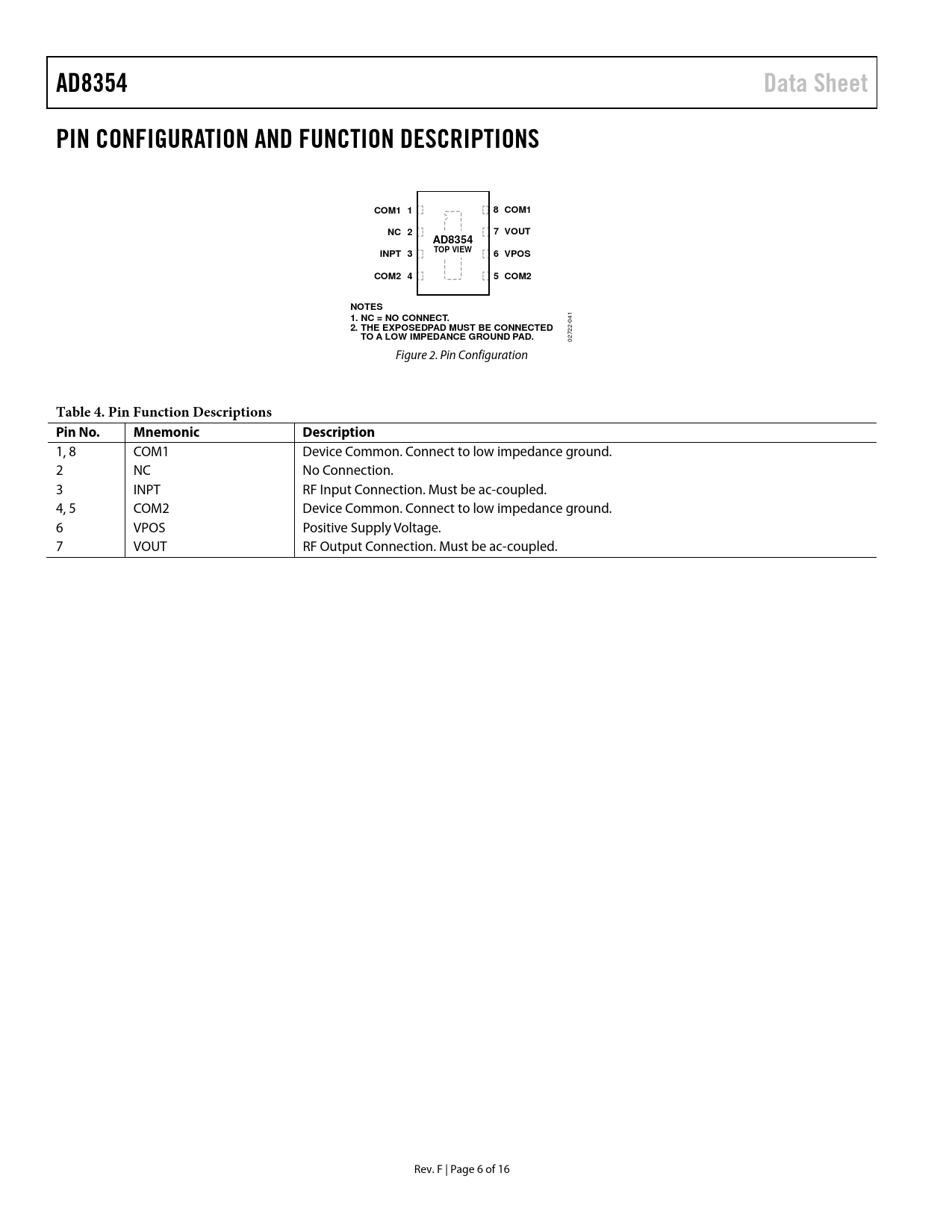

AD8354. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. COM1 1. 8 COM1. NC 2. 7 VOUT. INPT 3. TOP VIEW. 6 VPOS. COM2 4. 5 COM2. NOTES
Línea de modelo para esta hoja de datos
Versión de texto del documento
AD8354 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS COM1 1 8 COM1 NC 2 7 VOUT AD8354 INPT 3 TOP VIEW 6 VPOS COM2 4 5 COM2 NOTES
1
1. NC = NO CONNECT.
04
2. THE EXPOSEDPAD MUST BE CONNECTED
2-
TO A LOW IMPEDANCE GROUND PAD.
272 0 Figure 2. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1, 8 COM1 Device Common. Connect to low impedance ground. 2 NC No Connection. 3 INPT RF Input Connection. Must be ac-coupled. 4, 5 COM2 Device Common. Connect to low impedance ground. 6 VPOS Positive Supply Voltage. 7 VOUT RF Output Connection. Must be ac-coupled. Rev. F | Page 6 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION BASIC CONNECTIONS APPLICATIONS INFORMATION LOW FREQUENCY APPLICATIONS BELOW 100 MHz EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
