Datasheet AD8354 (Analog Devices) - 10
| Fabricante | Analog Devices |
| Descripción | 1 MHz TO 2.7 GHz RF Gain Block |
| Páginas / Página | 16 / 10 — AD8354. Data Sheet. GAIN AT 5.5V. GAIN AT �. –40°C. GAIN AT 5.0V. GAIN AT … |
| Revisión | F |
| Formato / tamaño de archivo | PDF / 366 Kb |
| Idioma del documento | Inglés |
AD8354. Data Sheet. GAIN AT 5.5V. GAIN AT �. –40°C. GAIN AT 5.0V. GAIN AT 4.5V. GAIN AT +25°C. GAIN (dB) 10. GAIN (dB). GAIN AT +85°C. 500
Línea de modelo para esta hoja de datos
Versión de texto del documento
AD8354 Data Sheet 25 25 GAIN AT 5.5V GAIN AT � –40°C 20 20 GAIN AT 5.0V 15 GAIN AT 4.5V 15 � GAIN AT +25°C GAIN (dB) 10 GAIN (dB) 10 GAIN AT +85°C 5 5
02722-020
0
02722-023
0 0 500 1000 1500 2000 2500 3000 0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz) FREQUENCY (MHz)

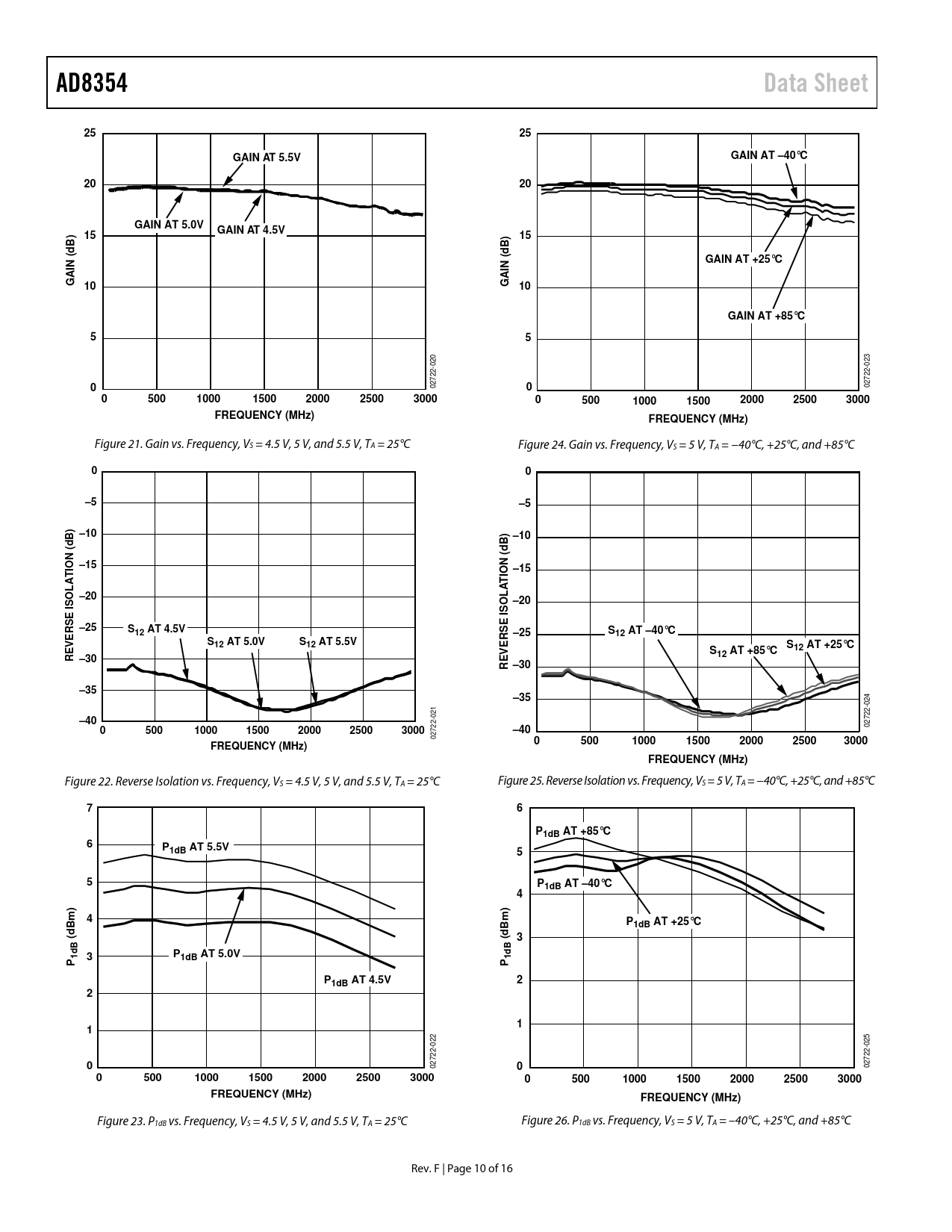

Figure 21. Gain vs. Frequency, VS = 4.5 V, 5 V, and 5.5 V, TA = 25°C Figure 24. Gain vs. Frequency, VS = 5 V, TA = −40°C, +25°C, and +85°C
0 0 –5 –5 –10 –10 –15 –15 ION (dB) T –20 –20 –25 S12 AT 4.5V –25 S12 AT –40°C S12 AT 5.0V S12 AT 5.5V S S 12 AT +25°C REVERSE ISOLATION (dB) –30 12 AT +85°C REVERSE ISOLA –30 –35 –35 –40
02722-024
0 500 1000 1500 2000 2500 3000 –40
02722-021
0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz) FREQUENCY (MHz)
Figure 22. Reverse Isolation vs. Frequency, VS = 4.5 V, 5 V, and 5.5 V, TA = 25°C Figure 25. Reverse Isolation vs. Frequency, VS = 5 V, TA = −40°C, +25°C, and +85°C
7 6 P1dB AT +85°C 6 P1dB AT 5.5V 5 5 P1dB AT –40°C 4 4 P1dB AT +25°C (dBm) (dBm) 3 1dB 3 P1dB AT 5.0V 1dB P P P1dB AT 4.5V 2 2 1 1 0
02722-022 02722-025
0 0 500 1000 1500 2000 2500 3000 0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz) FREQUENCY (MHz)
Figure 23. P1dB vs. Frequency, VS = 4.5 V, 5 V, and 5.5 V, TA = 25°C Figure 26. P1dB vs. Frequency, VS = 5 V, TA = –40°C, +25°C, and +85°C Rev. F | Page 10 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION BASIC CONNECTIONS APPLICATIONS INFORMATION LOW FREQUENCY APPLICATIONS BELOW 100 MHz EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
