Data Sheet. ADL5530. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. ESD CAUTION

Data Sheet ADL5530 ABSOLUTE MAXIMUM RATINGS Table 3 Parameter Rating ESD CAUTION

Línea de modelo para esta hoja de datos

Versión de texto del documento

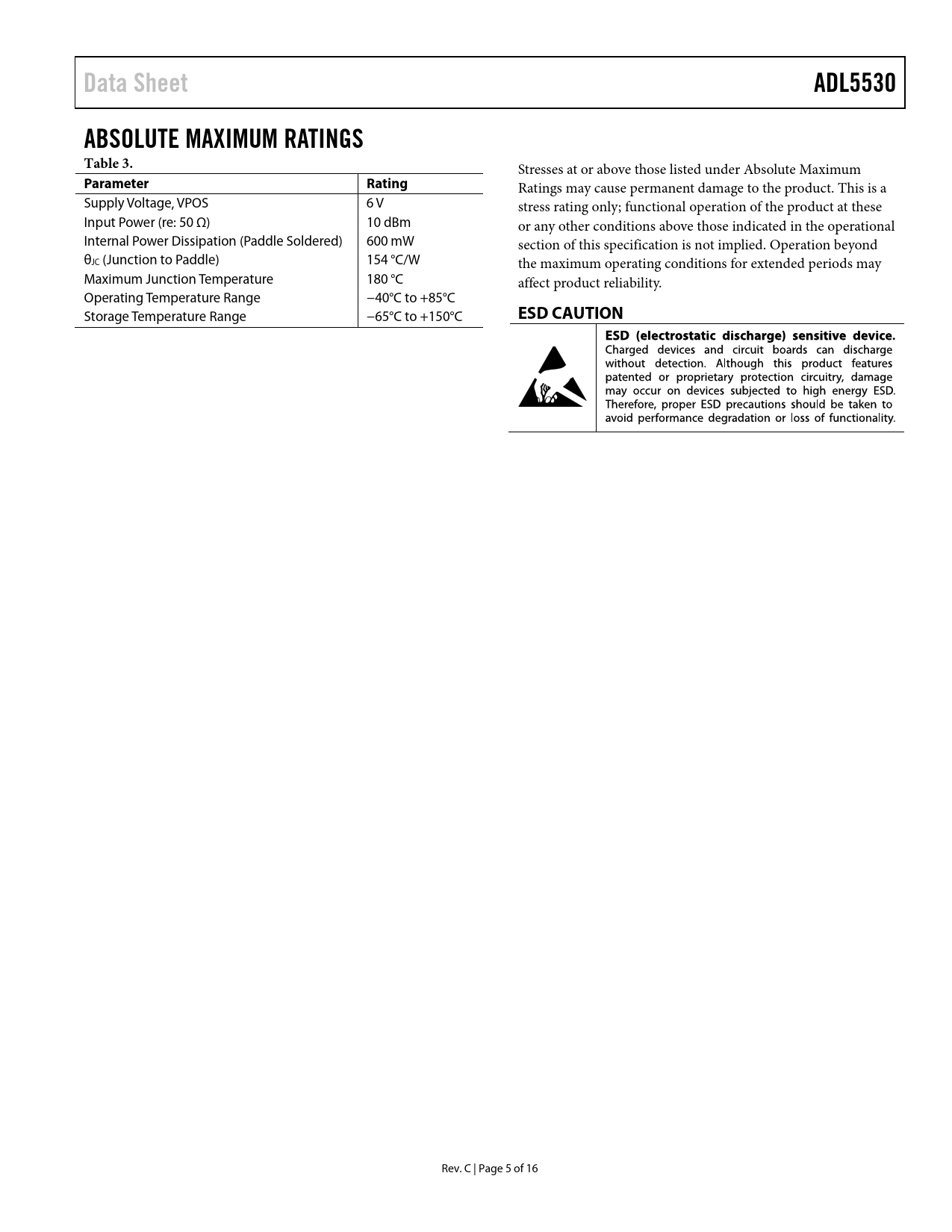

Data Sheet ADL5530 ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a Supply Voltage, VPOS 6 V stress rating only; functional operation of the product at these Input Power (re: 50 Ω) 10 dBm or any other conditions above those indicated in the operational Internal Power Dissipation (Paddle Soldered) 600 mW section of this specification is not implied. Operation beyond θJC (Junction to Paddle) 154 °C/W the maximum operating conditions for extended periods may Maximum Junction Temperature 180 °C affect product reliability. Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C
ESD CAUTION
Rev. C | Page 5 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS TYPICAL SCATTERING PARAMETERS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION SOLDERING INFORMATION AND RECOMMENDED PCB LAND PATTERN EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
