Datasheet ADL5530 (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | DC to 1000 MHz IF Gain Block |
| Páginas / Página | 16 / 6 — ADL5530. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. NC 1. 8 … |
| Revisión | C |
| Formato / tamaño de archivo | PDF / 1.0 Mb |
| Idioma del documento | Inglés |

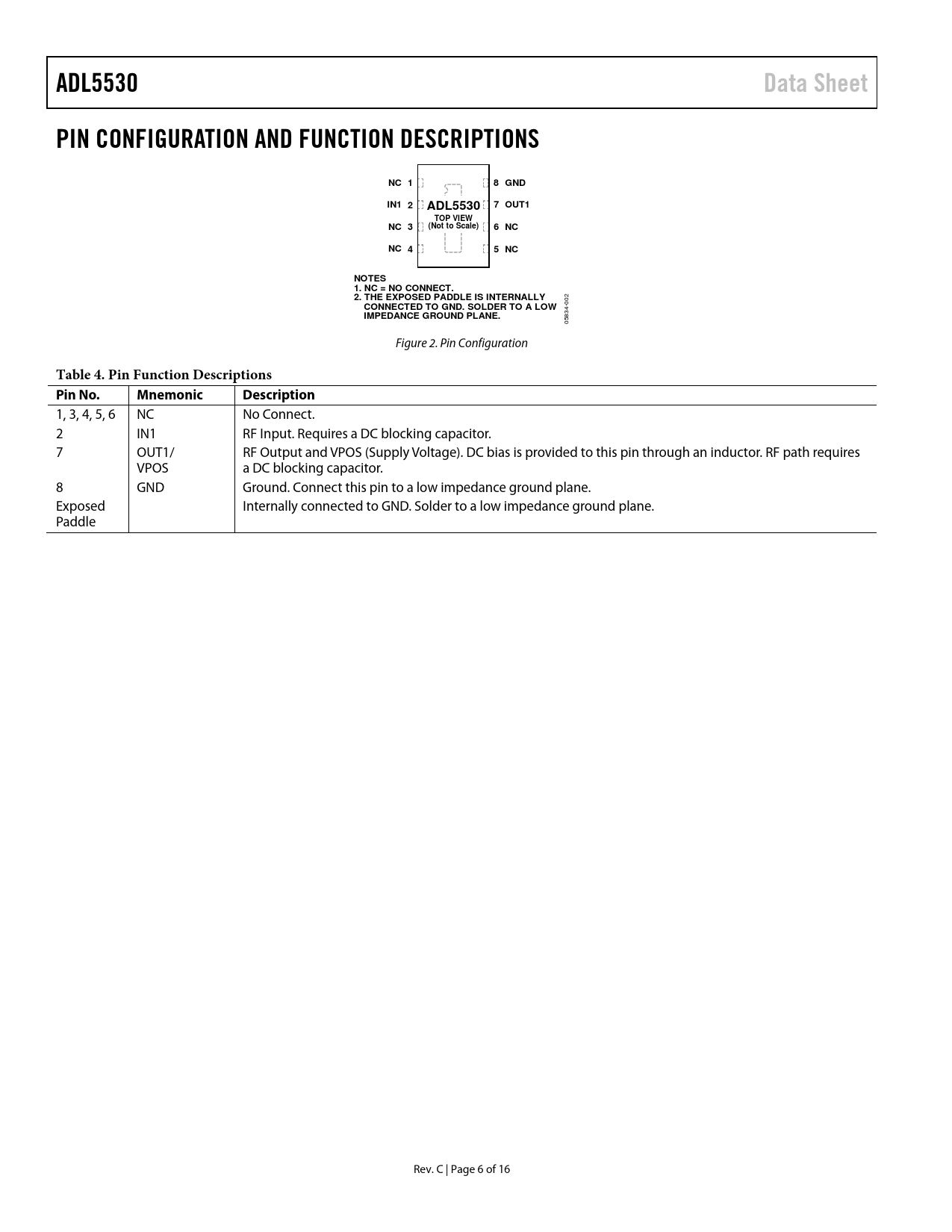

ADL5530. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. NC 1. 8 GND. IN1 2. 7 OUT1. TOP VIEW. NC 3. (Not to Scale). 6 NC. NC 4. 5 NC
Línea de modelo para esta hoja de datos
Versión de texto del documento
ADL5530 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS NC 1 8 GND IN1 2 7 OUT1 ADL5530 TOP VIEW NC 3 (Not to Scale) 6 NC NC 4 5 NC NOTES 1. NC = NO CONNECT. 2. THE EXPOSED PADDLE IS INTERNALLY
02 0
CONNECTED TO GND. SOLDER TO A LOW
4-
IMPEDANCE GROUND PLANE.
583 0 Figure 2. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1, 3, 4, 5, 6 NC No Connect. 2 IN1 RF Input. Requires a DC blocking capacitor. 7 OUT1/ RF Output and VPOS (Supply Voltage). DC bias is provided to this pin through an inductor. RF path requires VPOS a DC blocking capacitor. 8 GND Ground. Connect this pin to a low impedance ground plane. Exposed Internally connected to GND. Solder to a low impedance ground plane. Paddle Rev. C | Page 6 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS TYPICAL SCATTERING PARAMETERS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION SOLDERING INFORMATION AND RECOMMENDED PCB LAND PATTERN EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
