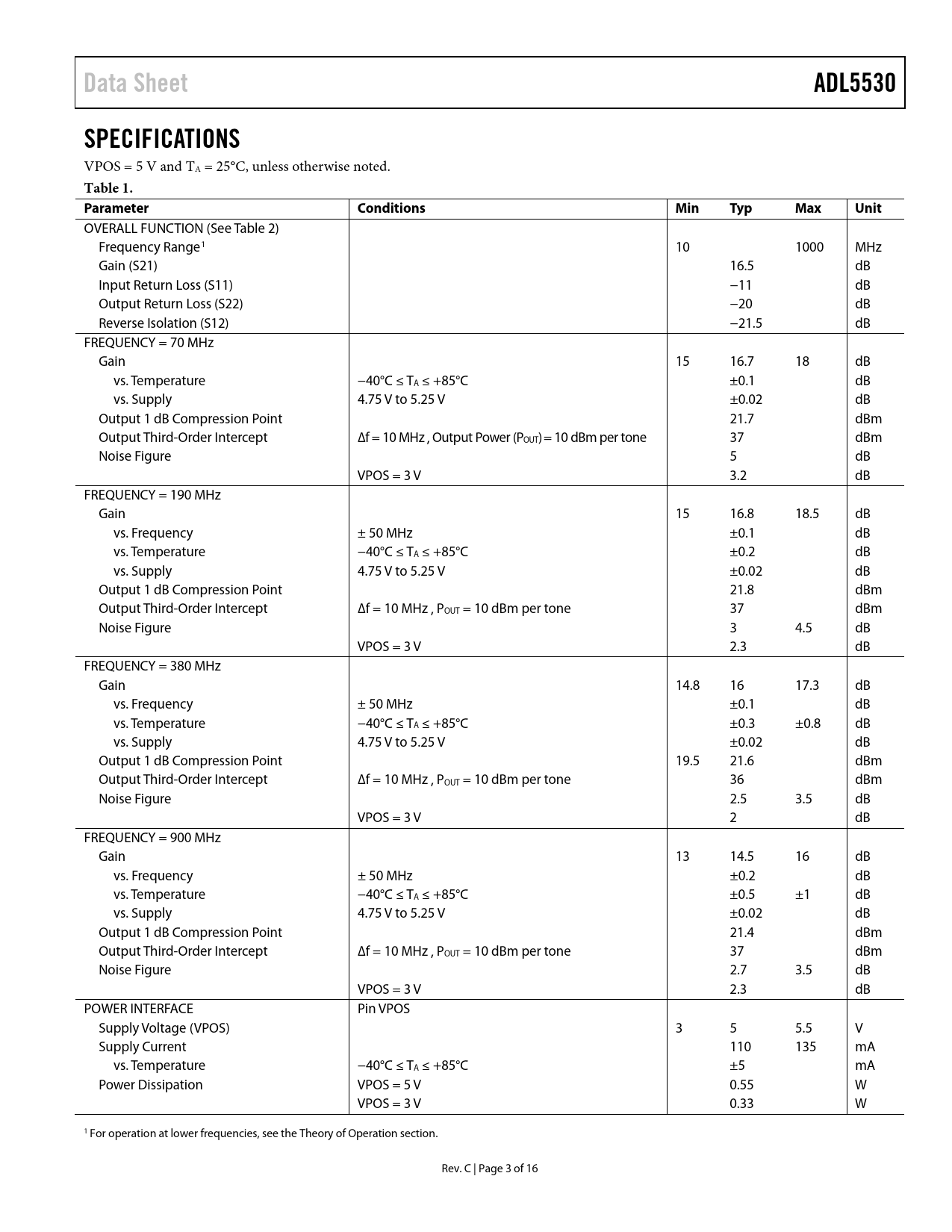

Data Sheet. ADL5530. SPECIFICATIONS. Table 1. Parameter. Conditions. Min. Typ. Max. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 4 link to page 11
Data Sheet ADL5530 SPECIFICATIONS
VPOS = 5 V and TA = 25°C, unless otherwise noted.
Table 1. Parameter Conditions Min Typ Max Unit
OVERALL FUNCTION (See Table 2) Frequency Range1 10 1000 MHz Gain (S21) 16.5 dB Input Return Loss (S11) −11 dB Output Return Loss (S22) −20 dB Reverse Isolation (S12) −21.5 dB FREQUENCY = 70 MHz Gain 15 16.7 18 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.1 dB vs. Supply 4.75 V to 5.25 V ±0.02 dB Output 1 dB Compression Point 21.7 dBm Output Third-Order Intercept ∆f = 10 MHz , Output Power (POUT) = 10 dBm per tone 37 dBm Noise Figure 5 dB VPOS = 3 V 3.2 dB FREQUENCY = 190 MHz Gain 15 16.8 18.5 dB vs. Frequency ± 50 MHz ±0.1 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.2 dB vs. Supply 4.75 V to 5.25 V ±0.02 dB Output 1 dB Compression Point 21.8 dBm Output Third-Order Intercept ∆f = 10 MHz , POUT = 10 dBm per tone 37 dBm Noise Figure 3 4.5 dB VPOS = 3 V 2.3 dB FREQUENCY = 380 MHz Gain 14.8 16 17.3 dB vs. Frequency ± 50 MHz ±0.1 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.3 ±0.8 dB vs. Supply 4.75 V to 5.25 V ±0.02 dB Output 1 dB Compression Point 19.5 21.6 dBm Output Third-Order Intercept ∆f = 10 MHz , POUT = 10 dBm per tone 36 dBm Noise Figure 2.5 3.5 dB VPOS = 3 V 2 dB FREQUENCY = 900 MHz Gain 13 14.5 16 dB vs. Frequency ± 50 MHz ±0.2 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.5 ±1 dB vs. Supply 4.75 V to 5.25 V ±0.02 dB Output 1 dB Compression Point 21.4 dBm Output Third-Order Intercept ∆f = 10 MHz , POUT = 10 dBm per tone 37 dBm Noise Figure 2.7 3.5 dB VPOS = 3 V 2.3 dB POWER INTERFACE Pin VPOS Supply Voltage (VPOS) 3 5 5.5 V Supply Current 110 135 mA vs. Temperature −40°C ≤ TA ≤ +85°C ±5 mA Power Dissipation VPOS = 5 V 0.55 W VPOS = 3 V 0.33 W 1 For operation at lower frequencies, see the Theory of Operation section. Rev. C | Page 3 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS TYPICAL SCATTERING PARAMETERS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION SOLDERING INFORMATION AND RECOMMENDED PCB LAND PATTERN EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
Data Sheet ADL5530 SPECIFICATIONS
VPOS = 5 V and TA = 25°C, unless otherwise noted.
Table 1. Parameter Conditions Min Typ Max Unit
OVERALL FUNCTION (See Table 2) Frequency Range1 10 1000 MHz Gain (S21) 16.5 dB Input Return Loss (S11) −11 dB Output Return Loss (S22) −20 dB Reverse Isolation (S12) −21.5 dB FREQUENCY = 70 MHz Gain 15 16.7 18 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.1 dB vs. Supply 4.75 V to 5.25 V ±0.02 dB Output 1 dB Compression Point 21.7 dBm Output Third-Order Intercept ∆f = 10 MHz , Output Power (POUT) = 10 dBm per tone 37 dBm Noise Figure 5 dB VPOS = 3 V 3.2 dB FREQUENCY = 190 MHz Gain 15 16.8 18.5 dB vs. Frequency ± 50 MHz ±0.1 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.2 dB vs. Supply 4.75 V to 5.25 V ±0.02 dB Output 1 dB Compression Point 21.8 dBm Output Third-Order Intercept ∆f = 10 MHz , POUT = 10 dBm per tone 37 dBm Noise Figure 3 4.5 dB VPOS = 3 V 2.3 dB FREQUENCY = 380 MHz Gain 14.8 16 17.3 dB vs. Frequency ± 50 MHz ±0.1 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.3 ±0.8 dB vs. Supply 4.75 V to 5.25 V ±0.02 dB Output 1 dB Compression Point 19.5 21.6 dBm Output Third-Order Intercept ∆f = 10 MHz , POUT = 10 dBm per tone 36 dBm Noise Figure 2.5 3.5 dB VPOS = 3 V 2 dB FREQUENCY = 900 MHz Gain 13 14.5 16 dB vs. Frequency ± 50 MHz ±0.2 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.5 ±1 dB vs. Supply 4.75 V to 5.25 V ±0.02 dB Output 1 dB Compression Point 21.4 dBm Output Third-Order Intercept ∆f = 10 MHz , POUT = 10 dBm per tone 37 dBm Noise Figure 2.7 3.5 dB VPOS = 3 V 2.3 dB POWER INTERFACE Pin VPOS Supply Voltage (VPOS) 3 5 5.5 V Supply Current 110 135 mA vs. Temperature −40°C ≤ TA ≤ +85°C ±5 mA Power Dissipation VPOS = 5 V 0.55 W VPOS = 3 V 0.33 W 1 For operation at lower frequencies, see the Theory of Operation section. Rev. C | Page 3 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS TYPICAL SCATTERING PARAMETERS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION SOLDERING INFORMATION AND RECOMMENDED PCB LAND PATTERN EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
