Datasheet STGWA50IH65DF (STMicroelectronics) - 4
| Fabricante | STMicroelectronics |
| Descripción | Trench gate field-stop IGBT, 650 V, 50 A soft switching IH series in a TO-247 long leads package |
| Páginas / Página | 14 / 4 — Electrical characteristics. STGWA50IH65DF. Table 4: Static … |
| Revisión | 2 |
| Formato / tamaño de archivo | PDF / 811 Kb |
| Idioma del documento | Inglés |
Electrical characteristics. STGWA50IH65DF. Table 4: Static characteristics. Symbol. Parameter. Test conditions. Min. Typ. Max. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10

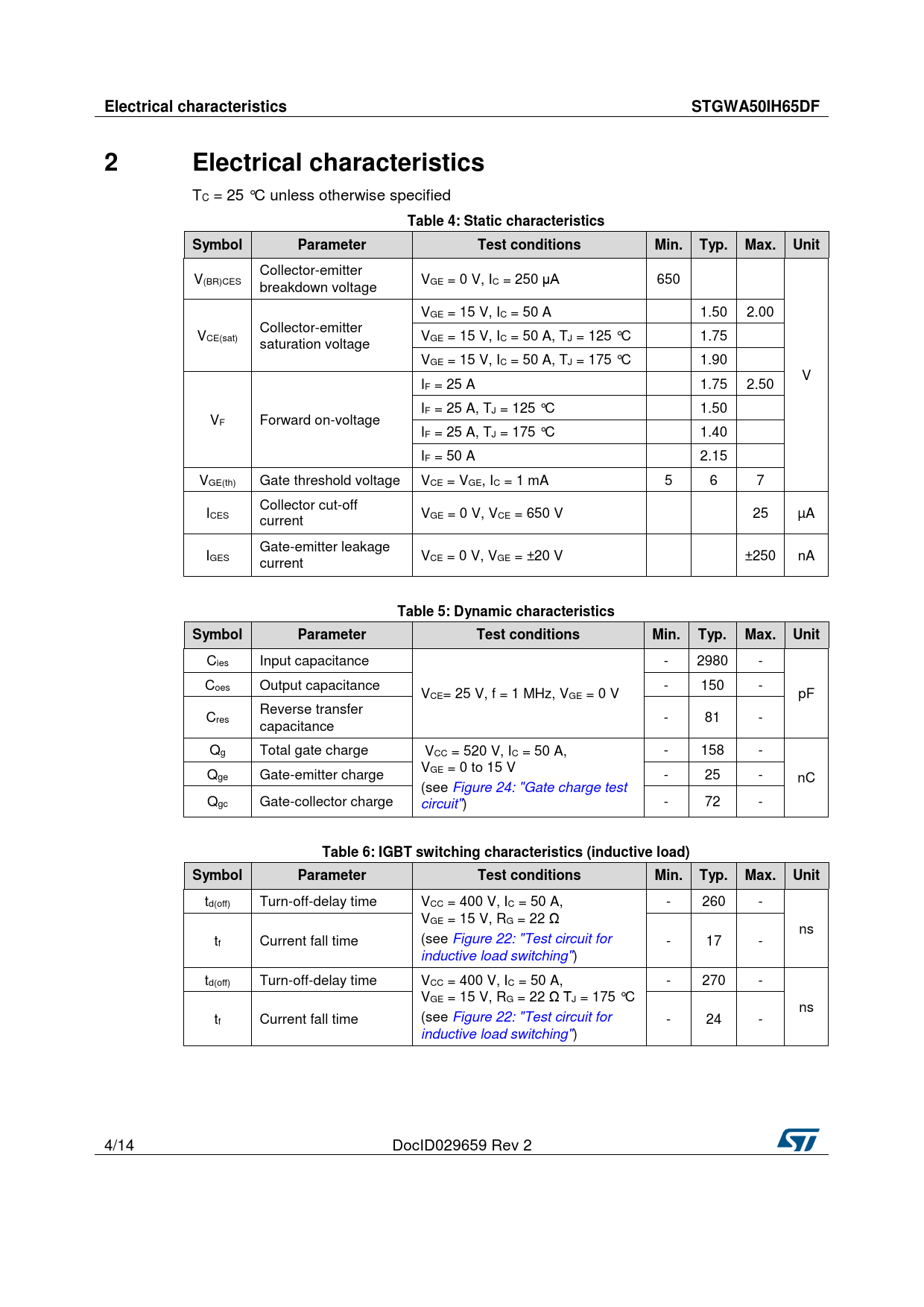

Electrical characteristics STGWA50IH65DF 2 Electrical characteristics
TC = 25 °C unless otherwise specified
Table 4: Static characteristics Symbol Parameter Test conditions Min. Typ. Max. Unit
Collector-emitter V(BR)CES VGE = 0 V, IC = 250 μA 650 breakdown voltage VGE = 15 V, IC = 50 A 1.50 2.00 Collector-emitter VCE(sat) VGE = 15 V, IC = 50 A, TJ = 125 °C 1.75 saturation voltage VGE = 15 V, IC = 50 A, TJ = 175 °C 1.90 V IF = 25 A 1.75 2.50 IF = 25 A, TJ = 125 °C 1.50 VF Forward on-voltage IF = 25 A, TJ = 175 °C 1.40 IF = 50 A 2.15 VGE(th) Gate threshold voltage VCE = VGE, IC = 1 mA 5 6 7 Collector cut-off ICES V 25 µA current GE = 0 V, VCE = 650 V Gate-emitter leakage IGES V ±250 nA current CE = 0 V, VGE = ±20 V
Table 5: Dynamic characteristics Symbol Parameter Test conditions Min. Typ. Max. Unit
Cies Input capacitance - 2980 - Coes Output capacitance - 150 - VCE= 25 V, f = 1 MHz, VGE = 0 V pF Reverse transfer Cres - 81 - capacitance Qg Total gate charge VCC = 520 V, IC = 50 A, - 158 - VGE = 0 to 15 V Qge Gate-emitter charge - 25 - nC (see Figure 24: "Gate charge test Qgc Gate-collector charge circuit") - 72 -
Table 6: IGBT switching characteristics (inductive load) Symbol Parameter Test conditions Min. Typ. Max. Unit
td(off) Turn-off-delay time VCC = 400 V, IC = 50 A, - 260 - VGE = 15 V, RG = 22 Ω ns t (see Figure 22: "Test circuit for f Current fall time - 17 - inductive load switching") td(off) Turn-off-delay time VCC = 400 V, IC = 50 A, - 270 - VGE = 15 V, RG = 22 Ω TJ = 175 °C ns t (see Figure 22: "Test circuit for f Current fall time - 24 - inductive load switching") 4/14 DocID029659 Rev 2
