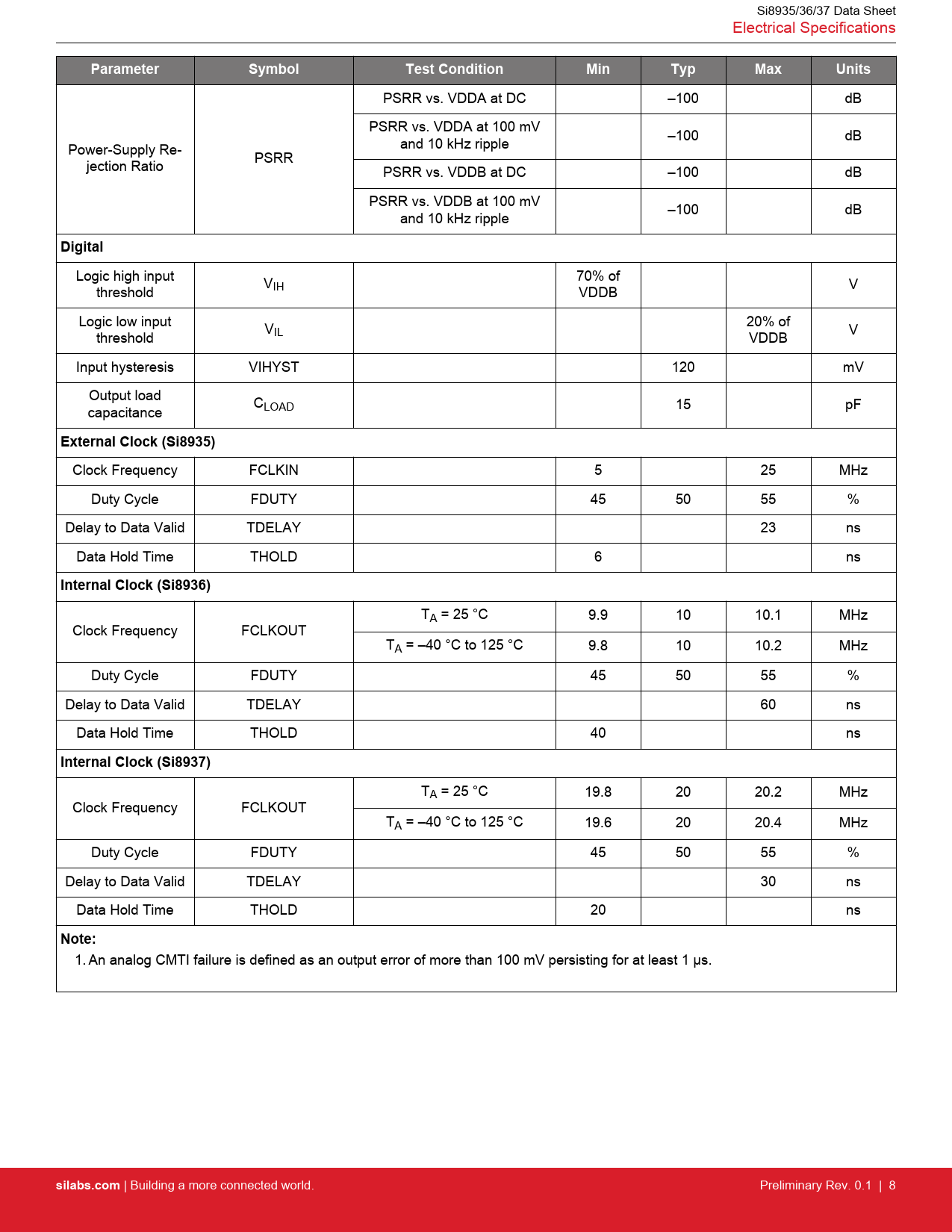

Si8935/36/37 Data Sheet Electrical Specifications
Parameter Symbol Test Condition Min Typ Max Units
PSRR vs. VDDA at DC –100 dB PSRR vs. VDDA at 100 mV –100 dB Power-Supply Re- and 10 kHz ripple PSRR jection Ratio PSRR vs. VDDB at DC –100 dB PSRR vs. VDDB at 100 mV –100 dB and 10 kHz ripple
Digital
Logic high input V 70% of V threshold IH VDDB Logic low input V 20% of V threshold IL VDDB Input hysteresis VIHYST 120 mV Output load C capacitance LOAD 15 pF
External Clock (Si8935)
Clock Frequency FCLKIN 5 25 MHz Duty Cycle FDUTY 45 50 55 % Delay to Data Valid TDELAY 23 ns Data Hold Time THOLD 6 ns
Internal Clock (Si8936)
TA = 25 °C 9.9 10 10.1 MHz Clock Frequency FCLKOUT TA = –40 °C to 125 °C 9.8 10 10.2 MHz Duty Cycle FDUTY 45 50 55 % Delay to Data Valid TDELAY 60 ns Data Hold Time THOLD 40 ns
Internal Clock (Si8937)
TA = 25 °C 19.8 20 20.2 MHz Clock Frequency FCLKOUT TA = –40 °C to 125 °C 19.6 20 20.4 MHz Duty Cycle FDUTY 45 50 55 % Delay to Data Valid TDELAY 30 ns Data Hold Time THOLD 20 ns
Note:
1. An analog CMTI failure is defined as an output error of more than 100 mV persisting for at least 1 µs.
