Si8931/32 Data Sheet Electrical Specifications

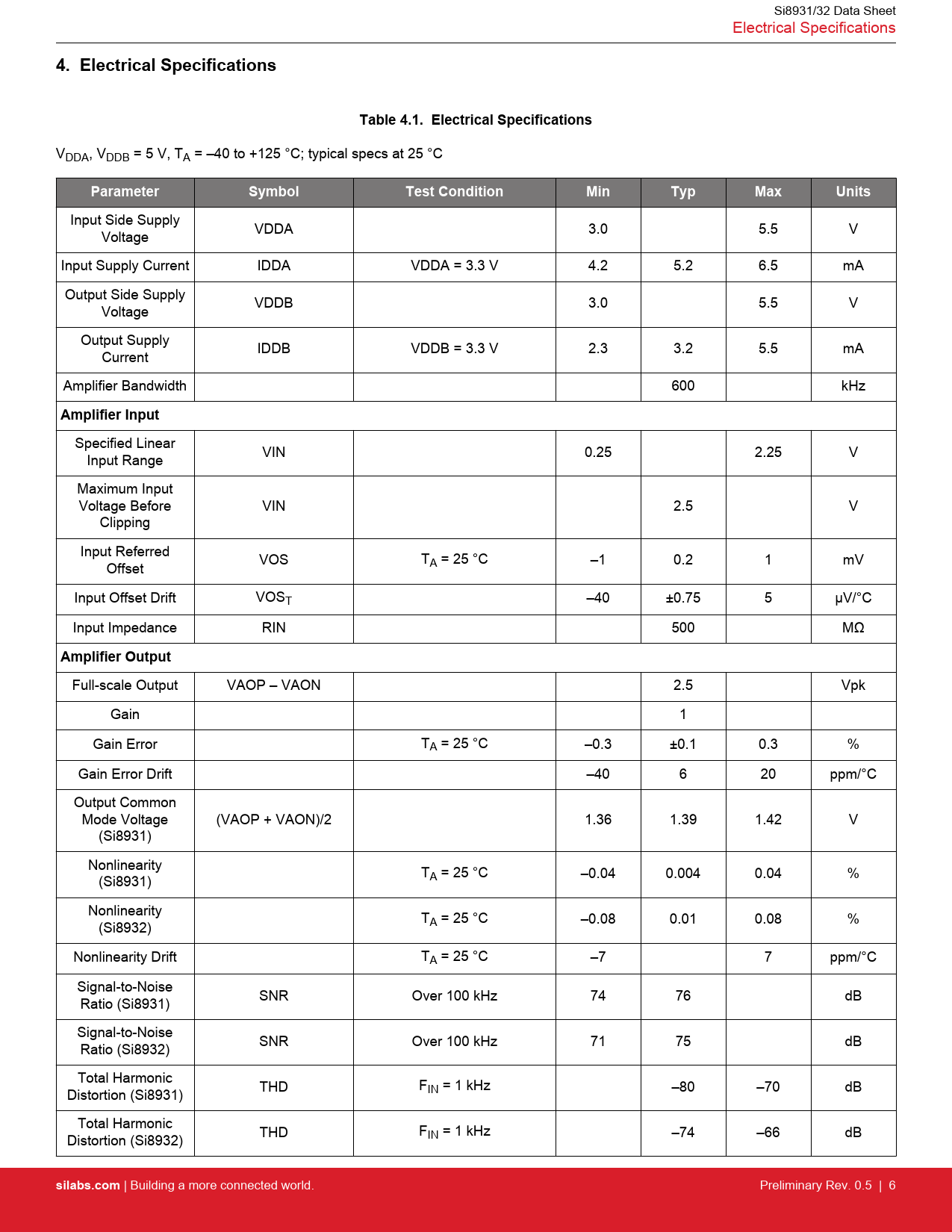

4. Electrical Specifications Table 4.1. Electrical Specifications
VDDA, VDDB = 5 V, TA = –40 to +125 °C; typical specs at 25 °C
Parameter Symbol Test Condition Min Typ Max Units
Input Side Supply VDDA 3.0 5.5 V Voltage Input Supply Current IDDA VDDA = 3.3 V 4.2 5.2 6.5 mA Output Side Supply VDDB 3.0 5.5 V Voltage Output Supply IDDB VDDB = 3.3 V 2.3 3.2 5.5 mA Current Amplifier Bandwidth 600 kHz
Amplifier Input
Specified Linear VIN 0.25 2.25 V Input Range Maximum Input Voltage Before VIN 2.5 V Clipping Input Referred VOS T Offset A = 25 °C –1 0.2 1 mV Input Offset Drift VOST –40 ±0.75 5 µV/°C Input Impedance RIN 500 MΩ
Amplifier Output
Full-scale Output VAOP – VAON 2.5 Vpk Gain 1 Gain Error TA = 25 °C –0.3 ±0.1 0.3 % Gain Error Drift –40 6 20 ppm/°C Output Common Mode Voltage (VAOP + VAON)/2 1.36 1.39 1.42 V (Si8931) Nonlinearity T (Si8931) A = 25 °C –0.04 0.004 0.04 % Nonlinearity T (Si8932) A = 25 °C –0.08 0.01 0.08 % Nonlinearity Drift TA = 25 °C –7 7 ppm/°C Signal-to-Noise SNR Over 100 kHz 74 76 dB Ratio (Si8931) Signal-to-Noise SNR Over 100 kHz 71 75 dB Ratio (Si8932) Total Harmonic THD F Distortion (Si8931) IN = 1 kHz –80 –70 dB Total Harmonic THD F Distortion (Si8932) IN = 1 kHz –74 –66 dB
silabs.com
