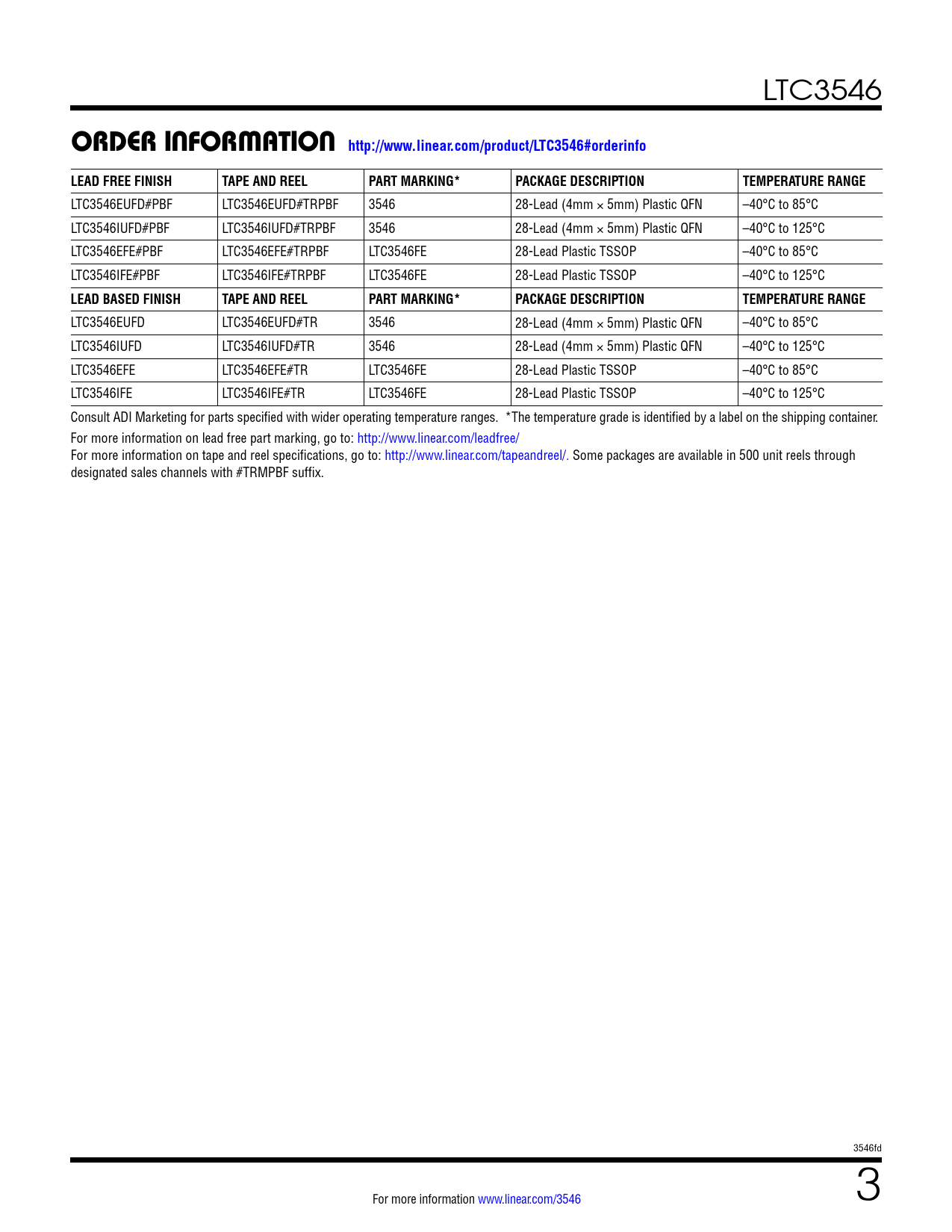

ORDER INFORMATION http://www.linear.com/product/LTC3546#orderinfo. LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC3546
ORDER INFORMATION http://www.linear.com/product/LTC3546#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3546EUFD#PBF LTC3546EUFD#TRPBF 3546 28-Lead (4mm × 5mm) Plastic QFN –40°C to 85°C LTC3546IUFD#PBF LTC3546IUFD#TRPBF 3546 28-Lead (4mm × 5mm) Plastic QFN –40°C to 125°C LTC3546EFE#PBF LTC3546EFE#TRPBF LTC3546FE 28-Lead Plastic TSSOP –40°C to 85°C LTC3546IFE#PBF LTC3546IFE#TRPBF LTC3546FE 28-Lead Plastic TSSOP –40°C to 125°C
LEAD BASED FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3546EUFD LTC3546EUFD#TR 3546 28-Lead (4mm × 5mm) Plastic QFN –40°C to 85°C LTC3546IUFD LTC3546IUFD#TR 3546 28-Lead (4mm × 5mm) Plastic QFN –40°C to 125°C LTC3546EFE LTC3546EFE#TR LTC3546FE 28-Lead Plastic TSSOP –40°C to 85°C LTC3546IFE LTC3546IFE#TR LTC3546FE 28-Lead Plastic TSSOP –40°C to 125°C Consult ADI Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. 3546fd For more information www.linear.com/3546 3
