Datasheet LTC3603 (Analog Devices) - 7
| Fabricante | Analog Devices |
| Descripción | 2.5A, 15V Monolithic Synchronous Step-Down Regulator |
| Páginas / Página | 22 / 7 — block DiagraM |
| Formato / tamaño de archivo | PDF / 284 Kb |
| Idioma del documento | Inglés |
block DiagraM
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC3603
block DiagraM

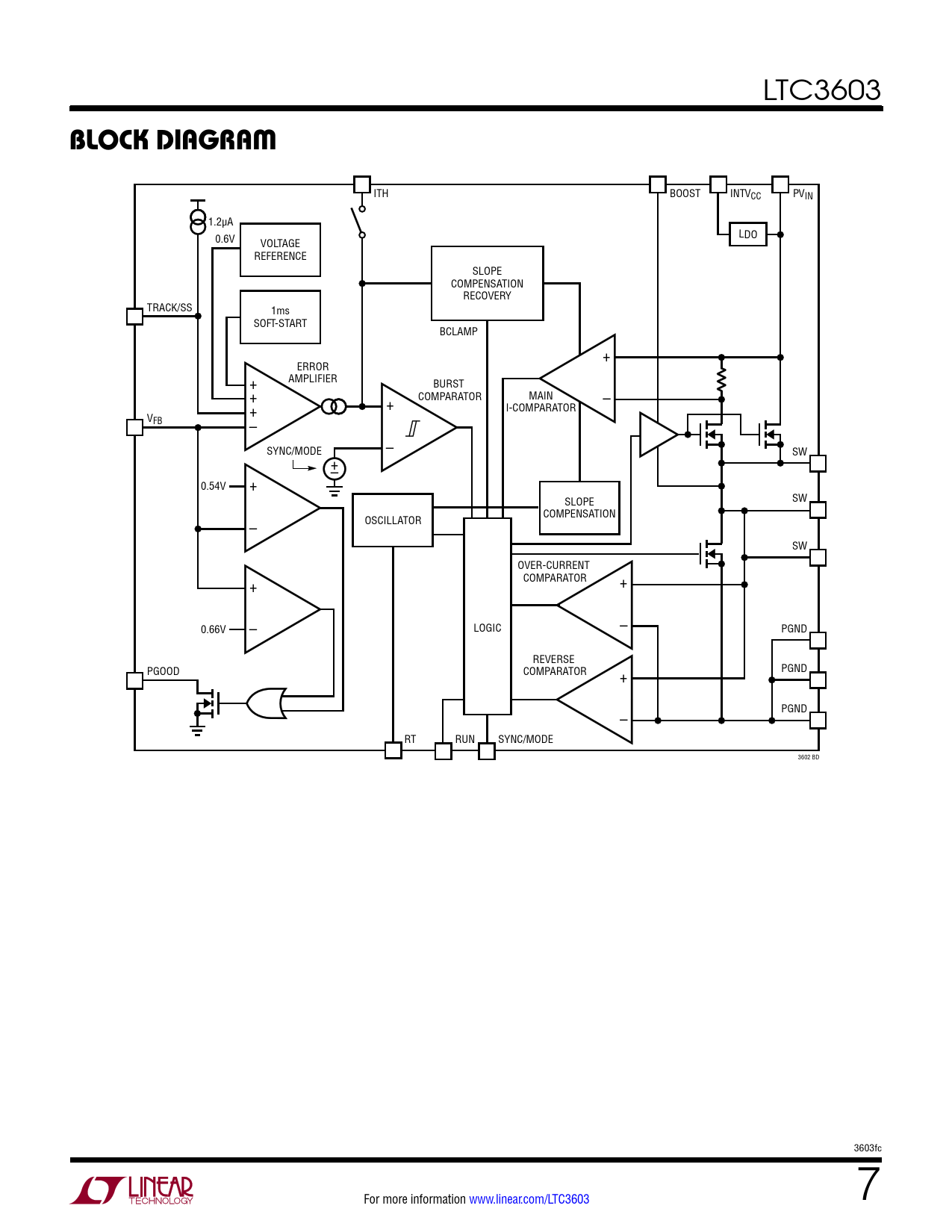

ITH BOOST INTVCC PVIN 1.2µA LDO 0.6V VOLTAGE REFERENCE SLOPE COMPENSATION RECOVERY TRACK/SS 1ms SOFT-START BCLAMP + ERROR + AMPLIFIER BURST + + COMPARATOR MAIN – I-COMPARATOR V + FB – SYNC/MODE – SW +– 0.54V + SW SLOPE OSCILLATOR COMPENSATION – SW OVER-CURRENT + COMPARATOR + 0.66V LOGIC – PGND – REVERSE PGND PGOOD COMPARATOR + PGND – RT RUN SYNC/MODE 3602 BD 3603fc For more information www.linear.com/LTC3603 7
