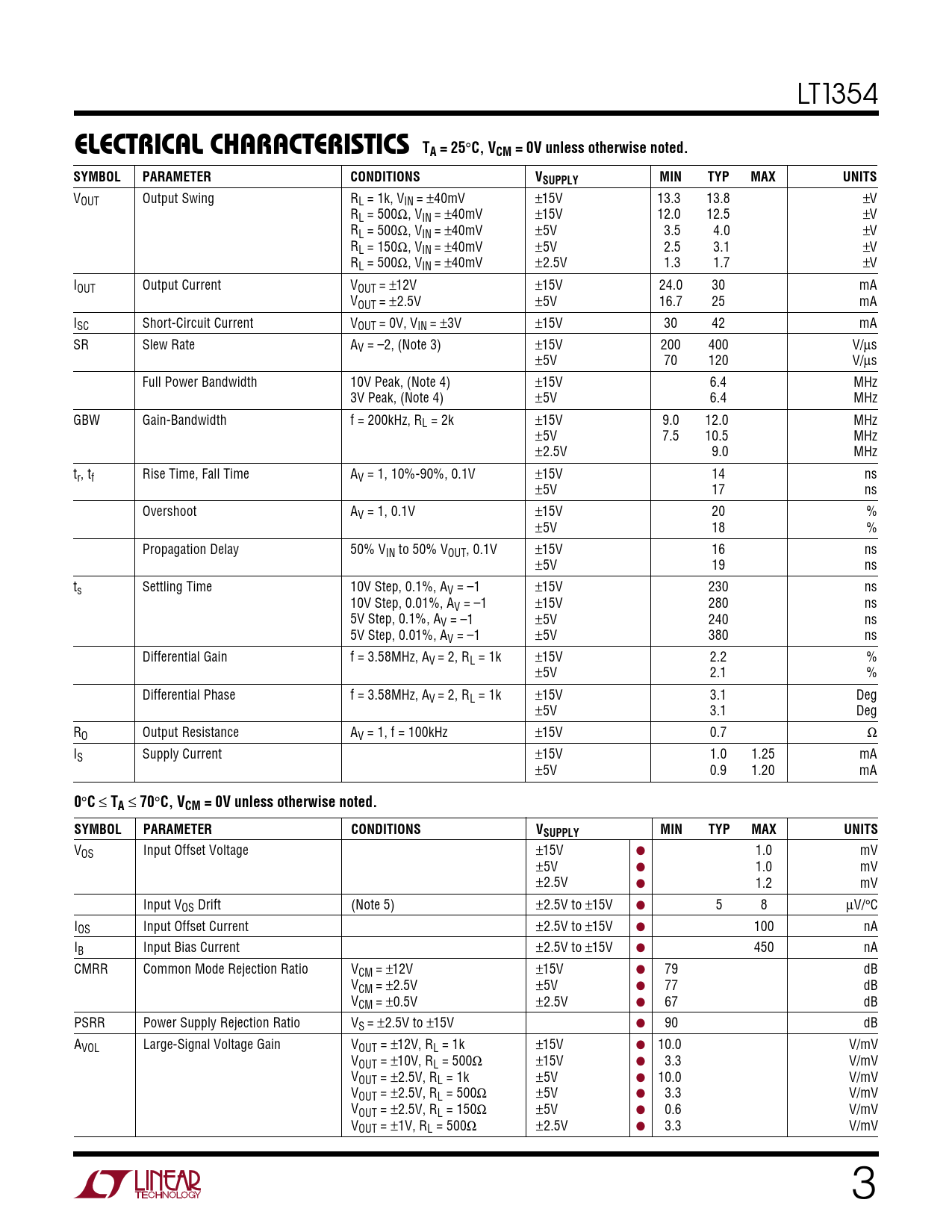

ELECTRICAL CHARACTERISTICS TA = 25. C, VCM = 0V unless otherwise noted. SYMBOL. PARAMETER. CONDITIONS. VSUPPLY. MIN. TYP. MAX. UNITS
Línea de modelo para esta hoja de datos
Versión de texto del documento
LT1354
ELECTRICAL CHARACTERISTICS TA = 25
°
C, VCM = 0V unless otherwise noted. SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
VOUT Output Swing RL = 1k, VIN = ±40mV ±15V 13.3 13.8 ±V RL = 500Ω, VIN = ±40mV ±15V 12.0 12.5 ±V RL = 500Ω, VIN = ±40mV ±5V 3.5 4.0 ±V RL = 150Ω, VIN = ±40mV ±5V 2.5 3.1 ±V RL = 500Ω, VIN = ±40mV ±2.5V 1.3 1.7 ±V IOUT Output Current VOUT = ±12V ±15V 24.0 30 mA VOUT = ±2.5V ±5V 16.7 25 mA ISC Short-Circuit Current VOUT = 0V, VIN = ±3V ±15V 30 42 mA SR Slew Rate AV = –2, (Note 3) ±15V 200 400 V/µs ±5V 70 120 V/µs Full Power Bandwidth 10V Peak, (Note 4) ±15V 6.4 MHz 3V Peak, (Note 4) ±5V 6.4 MHz GBW Gain-Bandwidth f = 200kHz, RL = 2k ±15V 9.0 12.0 MHz ±5V 7.5 10.5 MHz ±2.5V 9.0 MHz tr, tf Rise Time, Fall Time AV = 1, 10%-90%, 0.1V ±15V 14 ns ±5V 17 ns Overshoot AV = 1, 0.1V ±15V 20 % ±5V 18 % Propagation Delay 50% VIN to 50% VOUT, 0.1V ±15V 16 ns ±5V 19 ns ts Settling Time 10V Step, 0.1%, AV = –1 ±15V 230 ns 10V Step, 0.01%, AV = –1 ±15V 280 ns 5V Step, 0.1%, AV = –1 ±5V 240 ns 5V Step, 0.01%, AV = –1 ±5V 380 ns Differential Gain f = 3.58MHz, AV = 2, RL = 1k ±15V 2.2 % ±5V 2.1 % Differential Phase f = 3.58MHz, AV = 2, RL = 1k ±15V 3.1 Deg ±5V 3.1 Deg RO Output Resistance AV = 1, f = 100kHz ±15V 0.7 Ω IS Supply Current ±15V 1.0 1.25 mA ±5V 0.9 1.20 mA
0
°
C
≤
TA
≤
70
°
C, VCM = 0V unless otherwise noted. SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
VOS Input Offset Voltage ±15V ● 1.0 mV ±5V ● 1.0 mV ±2.5V ● 1.2 mV Input VOS Drift (Note 5) ±2.5V to ±15V ● 5 8 µV/°C IOS Input Offset Current ±2.5V to ±15V ● 100 nA IB Input Bias Current ±2.5V to ±15V ● 450 nA CMRR Common Mode Rejection Ratio VCM = ±12V ±15V ● 79 dB VCM = ±2.5V ±5V ● 77 dB VCM = ±0.5V ±2.5V ● 67 dB PSRR Power Supply Rejection Ratio VS = ±2.5V to ±15V ● 90 dB AVOL Large-Signal Voltage Gain VOUT = ±12V, RL = 1k ±15V ● 10.0 V/mV VOUT = ±10V, RL = 500Ω ±15V ● 3.3 V/mV VOUT = ±2.5V, RL = 1k ±5V ● 10.0 V/mV VOUT = ±2.5V, RL = 500Ω ±5V ● 3.3 V/mV VOUT = ±2.5V, RL = 150Ω ±5V ● 0.6 V/mV VOUT = ±1V, RL = 500Ω ±2.5V ● 3.3 V/mV 3
