DescripciónHigh-Speed, ±0.3µV/°C Offset Drift, Fully Differential ADC Driver
Páginas / Página18 / 4 — ADA4945-1. Preliminary Technical Data. Full Power Mode. Low Power Mode. …
RevisiónPrC
Formato / tamaño de archivoPDF / 468 Kb
Idioma del documentoInglés

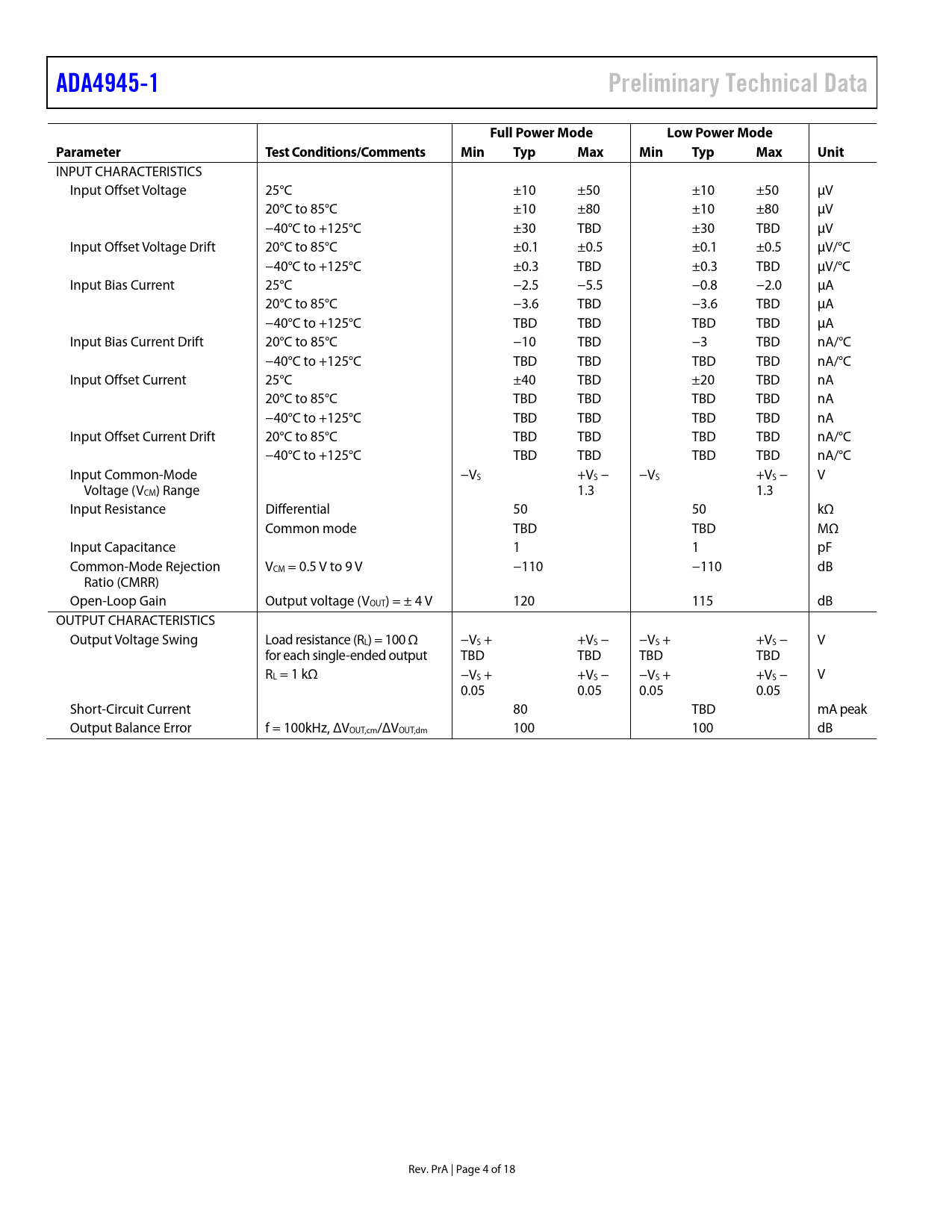

ADA4945-1. Preliminary Technical Data. Full Power Mode. Low Power Mode. Parameter. Test Conditions/Comments. Min. Typ Max Min. Typ Max

ADA4945-1 Preliminary Technical Data Full Power Mode Low Power Mode Parameter Test Conditions/Comments Min Typ Max Min Typ Max

Línea de modelo para esta hoja de datos

Versión de texto del documento

ADA4945-1 Preliminary Technical Data Full Power Mode Low Power Mode Parameter Test Conditions/Comments Min Typ Max Min Typ Max Unit
INPUT CHARACTERISTICS Input Offset Voltage 25°C ±10 ±50 ±10 ±50 μV 20°C to 85°C ±10 ±80 ±10 ±80 μV −40°C to +125°C ±30 TBD ±30 TBD μV Input Offset Voltage Drift 20°C to 85°C ±0.1 ±0.5 ±0.1 ±0.5 μV/°C −40°C to +125°C ±0.3 TBD ±0.3 TBD μV/°C Input Bias Current 25°C −2.5 −5.5 −0.8 −2.0 μA 20°C to 85°C −3.6 TBD −3.6 TBD μA −40°C to +125°C TBD TBD TBD TBD μA Input Bias Current Drift 20°C to 85°C −10 TBD −3 TBD nA/°C −40°C to +125°C TBD TBD TBD TBD nA/°C Input Offset Current 25°C ±40 TBD ±20 TBD nA 20°C to 85°C TBD TBD TBD TBD nA −40°C to +125°C TBD TBD TBD TBD nA Input Offset Current Drift 20°C to 85°C TBD TBD TBD TBD nA/°C −40°C to +125°C TBD TBD TBD TBD nA/°C Input Common-Mode −VS +VS − −VS +VS − V Voltage (VCM) Range 1.3 1.3 Input Resistance Differential 50 50 kΩ Common mode TBD TBD MΩ Input Capacitance 1 1 pF Common-Mode Rejection VCM = 0.5 V to 9 V −110 −110 dB Ratio (CMRR) Open-Loop Gain Output voltage (VOUT) = ± 4 V 120 115 dB OUTPUT CHARACTERISTICS Output Voltage Swing Load resistance (RL) = 100 Ω −VS + +VS − −VS + +VS − V for each single-ended output TBD TBD TBD TBD RL = 1 kΩ −VS + +VS − −VS + +VS − V 0.05 0.05 0.05 0.05 Short-Circuit Current 80 TBD mA peak Output Balance Error f = 100kHz, ΔVOUT,cm/ΔVOUT,dm 100 100 dB Rev. PrA | Page 4 of 18 Document Outline Features Applications General Description Functional Block Diagram Table of Contents Specifications Supply Voltage (VS) = 10 V Positive Input (+DIN) or Negative Input (–DIN) to Differential Output Voltage (VOUT, dm) Performance VOCM to VOUT, cm Performance General Performance VS = 5 V +DIN or –DIN to VOUT, dm Performance VOCM to VOUT, cm Performance General Performance VS = 3 V +DIN or –DIN to VOUT, dm Performance VOCM to VOUT, cm Performance General Performance Absolute Maximum Ratings Thermal Resistance Maximum Power Dissipation ESD Caution Pin Configuration and Function Descriptions Terminology Outline Dimensions
