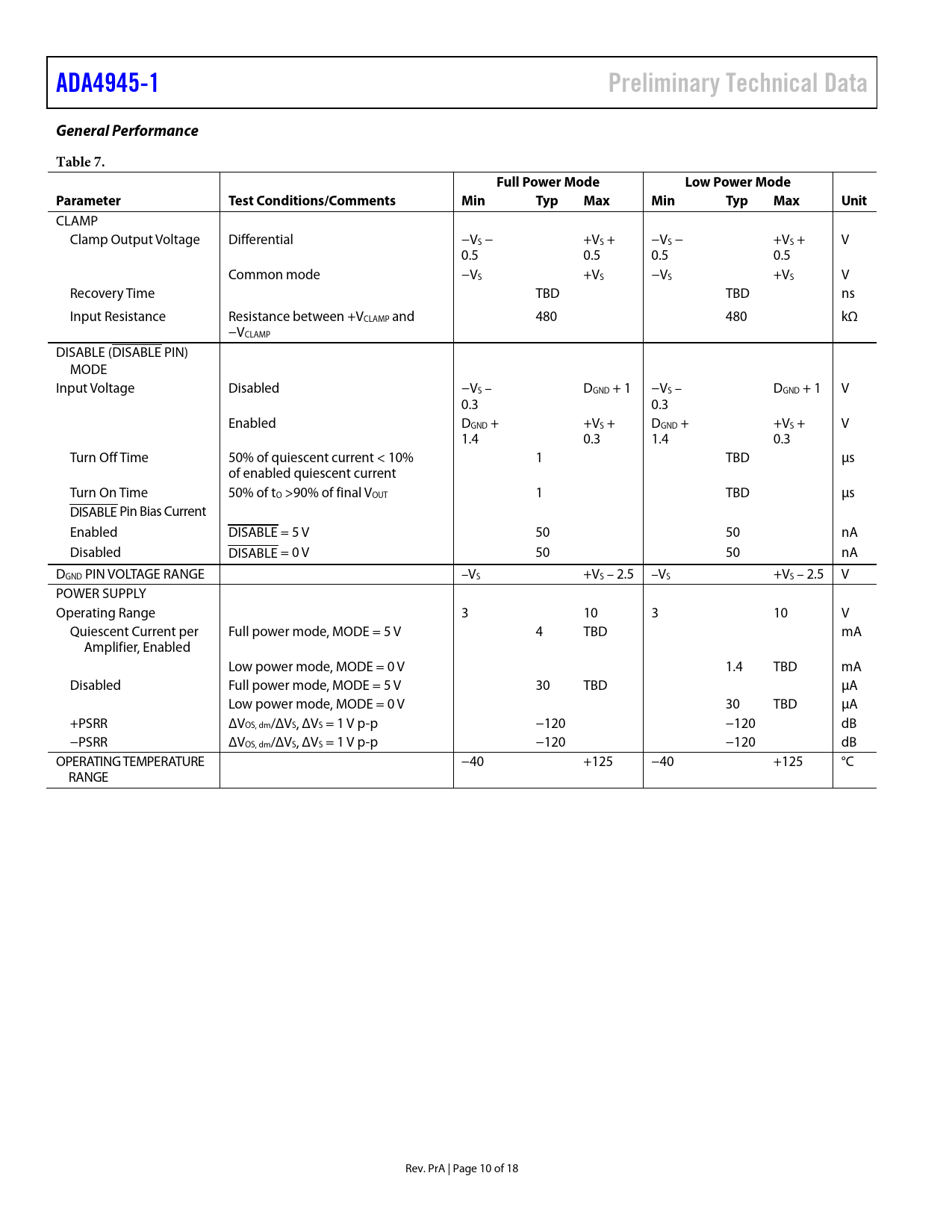

ADA4945-1 Preliminary Technical Data General Performance Table 7. Full Power Mode Low Power Mode Parameter Test Conditions/Comments Min Typ Max Min Typ Max Unit
